Trek Top Fuel 9.9 XTR

This product is currently out of stock and unavailable.

SKU: 37064 Category:

Description

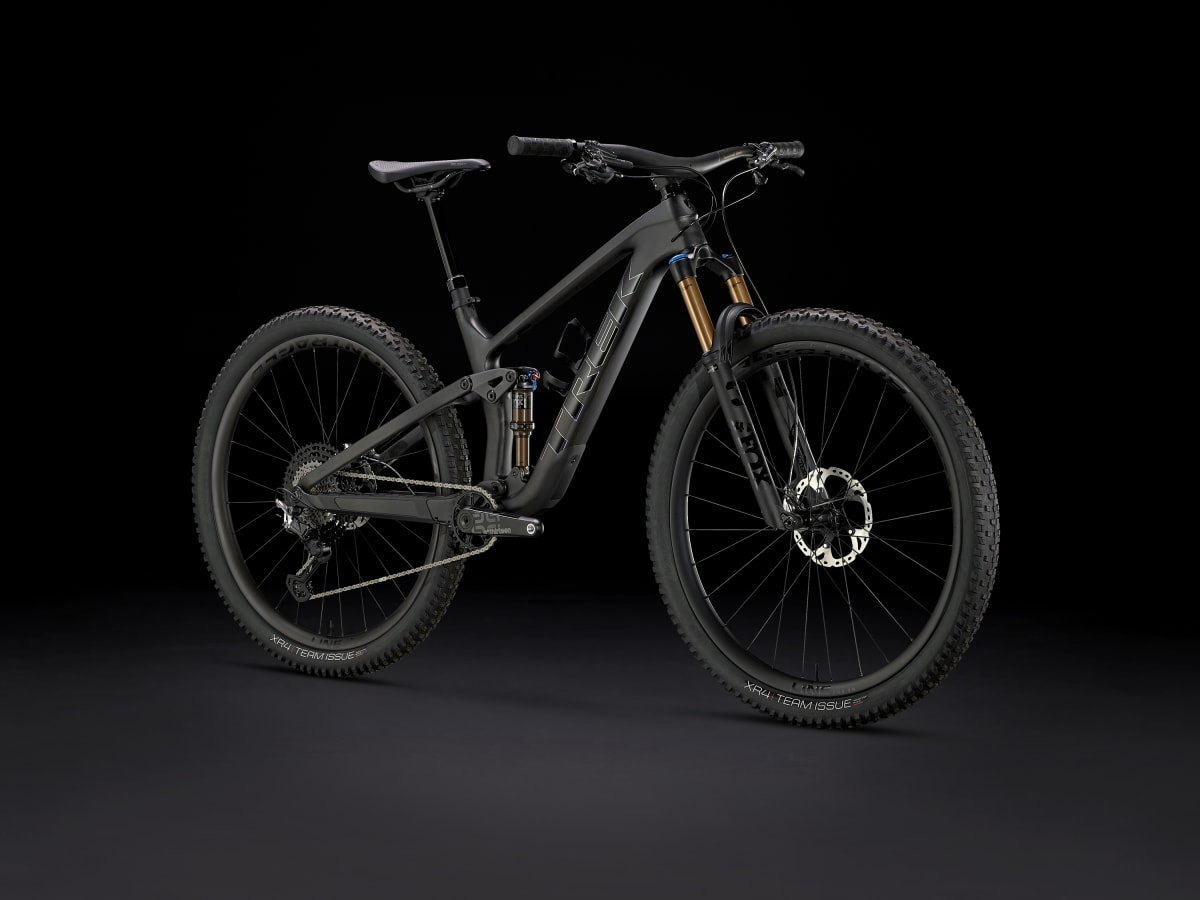

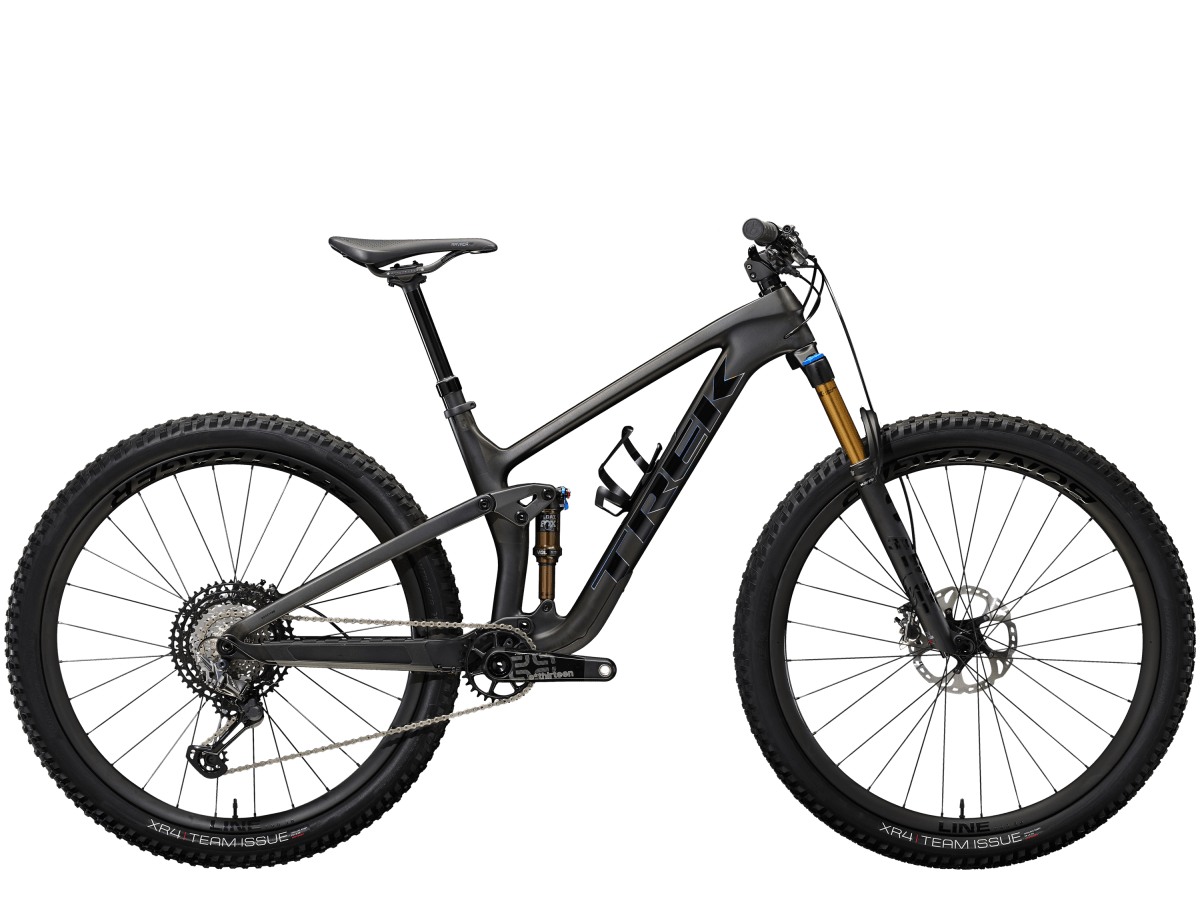

The Top Fuel 9.9 XTR is a top-shelf full-suspension mountain bike for riders who are serious about their fun. Its lightweight carbon frame is spec’d to the hilt with high-end suspension and high-performance parts. And all those fancy bits and bobs are really, really good at hitting the party line.

You’re looking for the fastest way to a good time on the trail, and you’re willing to crack open the piggy bank for top-shelf suspension and lots of lightweight carbon.

A light and stiff full carbon frame, 130 mm Fox Factory 34 fork, 120 mm of rear travel with a Fox Factory Float shock, and a smooth and precise Shimano XTR 1×12 drivetrain. Plus, wide carbon Bontrager Line Pro 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, and lots of carbon everywhere.

With Top Fuel 9.9, you get a smooth, fast ride that doesn’t shy away from rowdy trails. An OCLV Mountain Carbon frame, top-of-the-line suspension and carbon components join forces for a nimble and insanely fun ride.

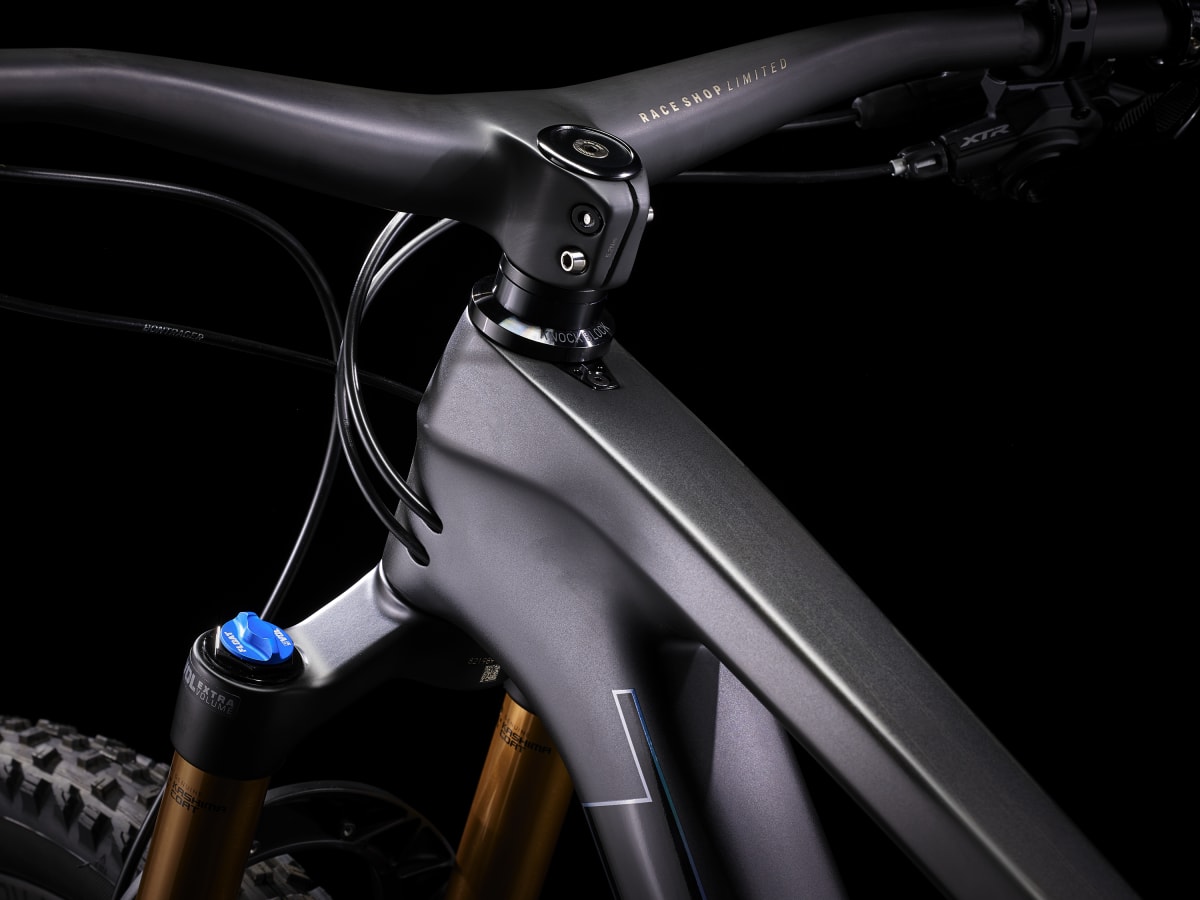

– The OCLV Carbon RSL integrated bar/stem is ultra-light and ultra-comfortable, and it looks awesome

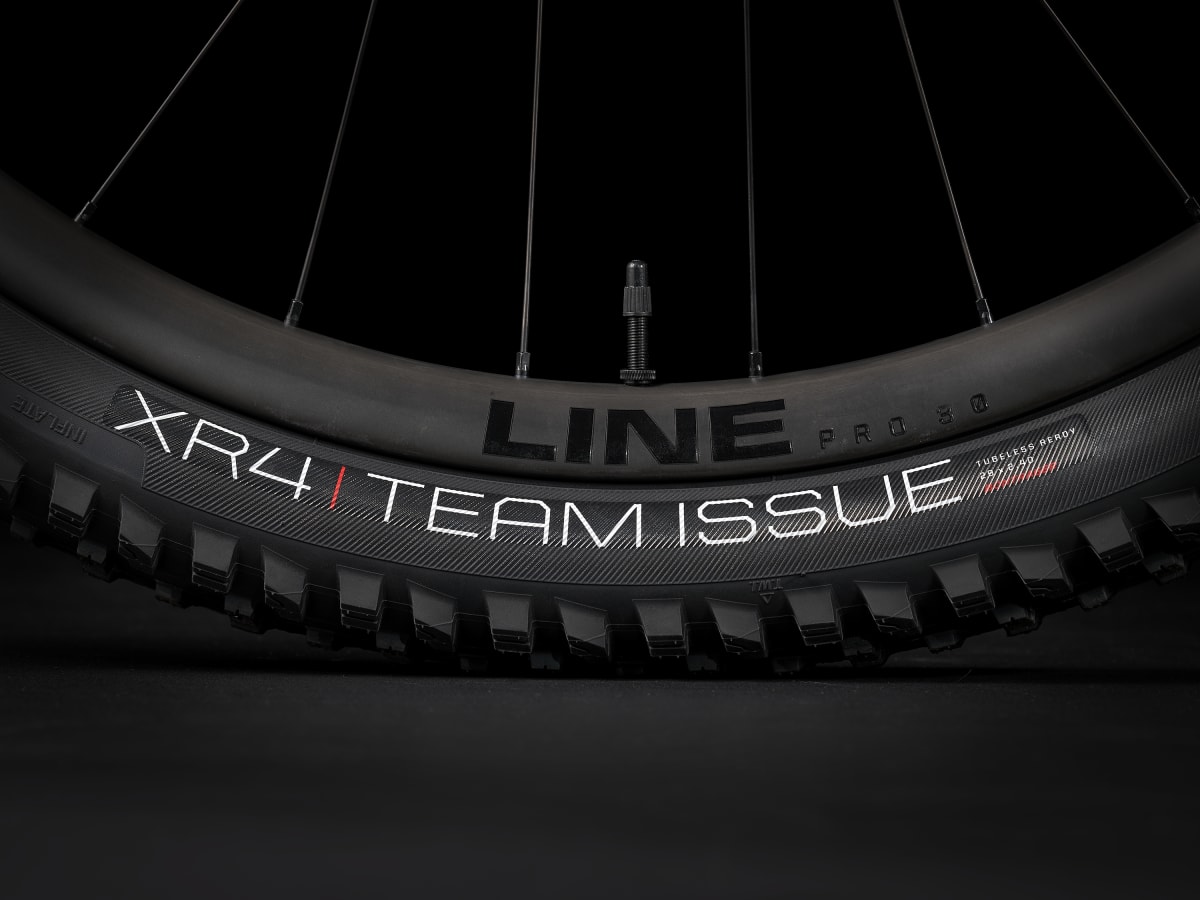

– Wider Line Pro 30 wheels provide better tyre support so you can run lower pressure and get more traction
– This bike’s killer suspension set-up is both efficient and ready to party
– A sleek internal storage compartment gives you a versatile spot to stow tools and gear
– Make it yours: it’s fully customisable through Project One

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Quick and in control

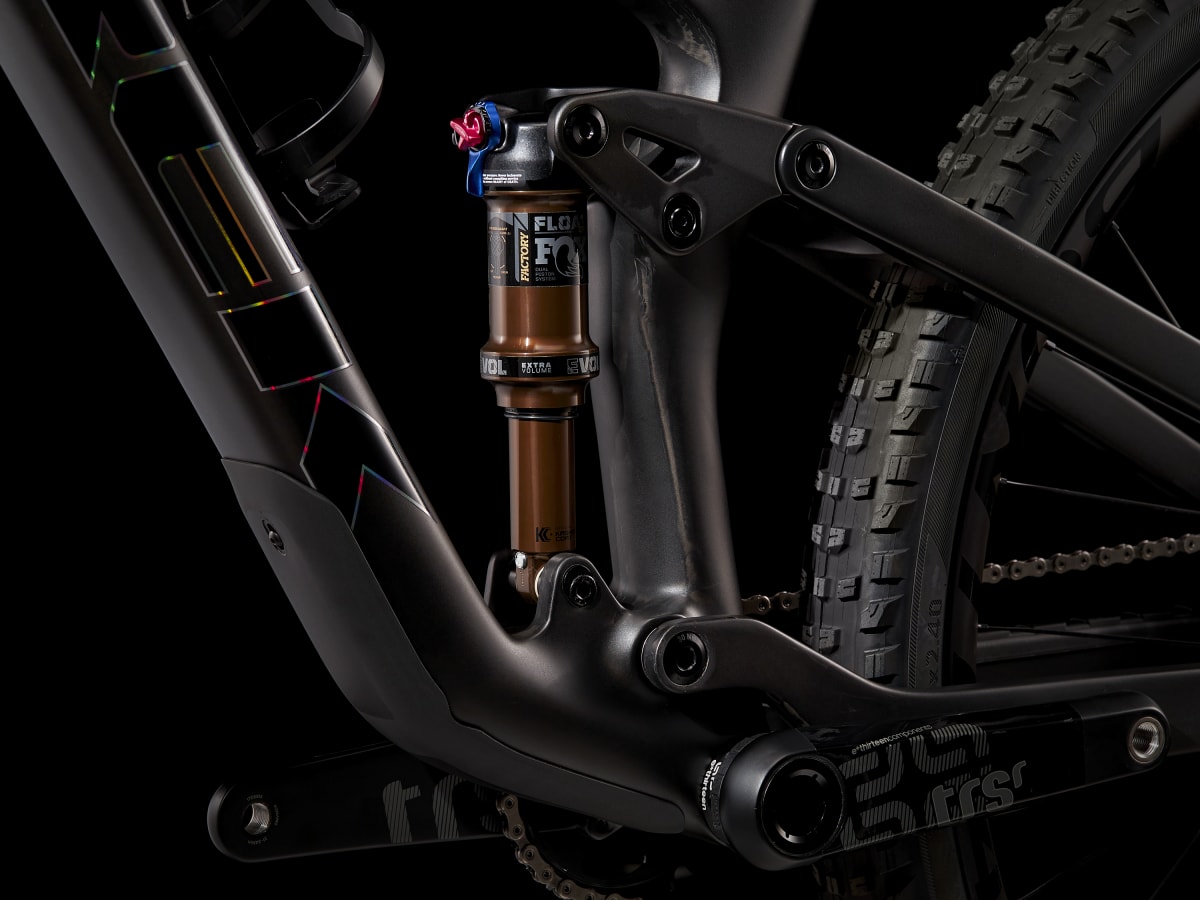

120 mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

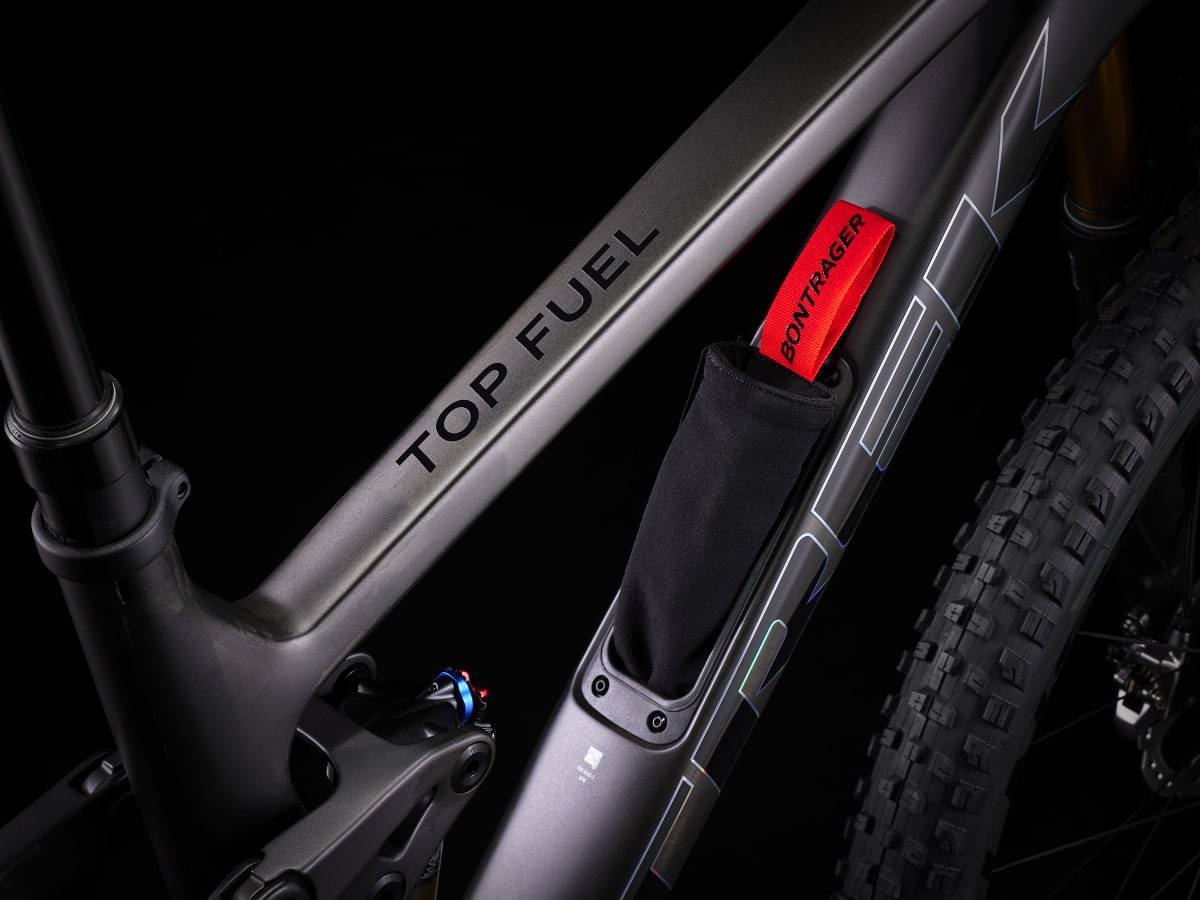

Internal Storage
Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

BITS: Your trail-side saviour
Cleverly integrated into the steerer tube, the included BITS multi-tool has everything you need for trail-side adjustments and repairs.

Hassle-free routing
Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

Will my bike have a curved top tube?
The smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. The larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Additional information

Weight

Size S – 11.48kg

Fork

Fox Factory 34, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 130 mm travel

Chain

Shimano Dura-Ace/XTR M9100, 12-speed

Frame

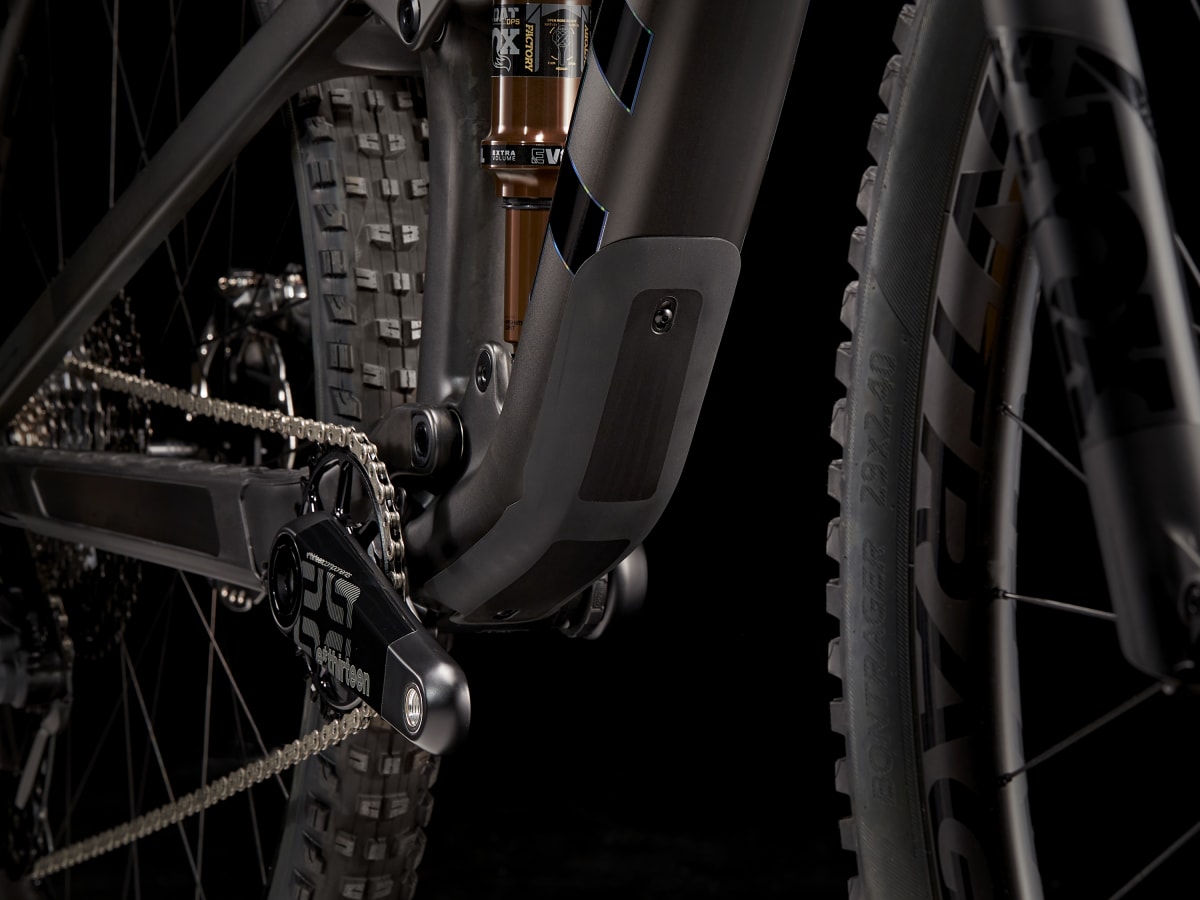

OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel

Gears

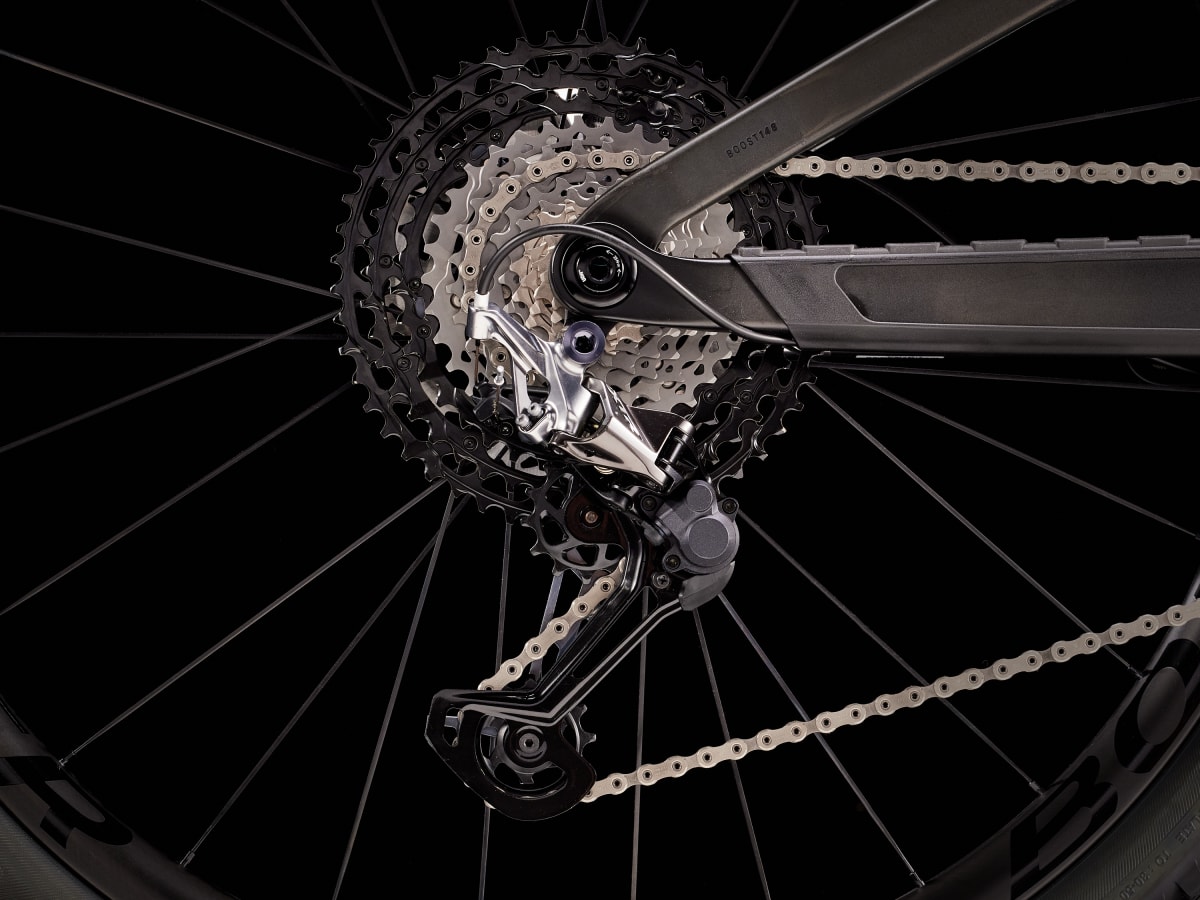

Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

Saddle

Bontrager Arvada Pro, carbon rails, 138 mm width

Wheels

Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

Headset

Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

Cassette

Shimano XTR M9101, 10-51, 12-speed

Crankset

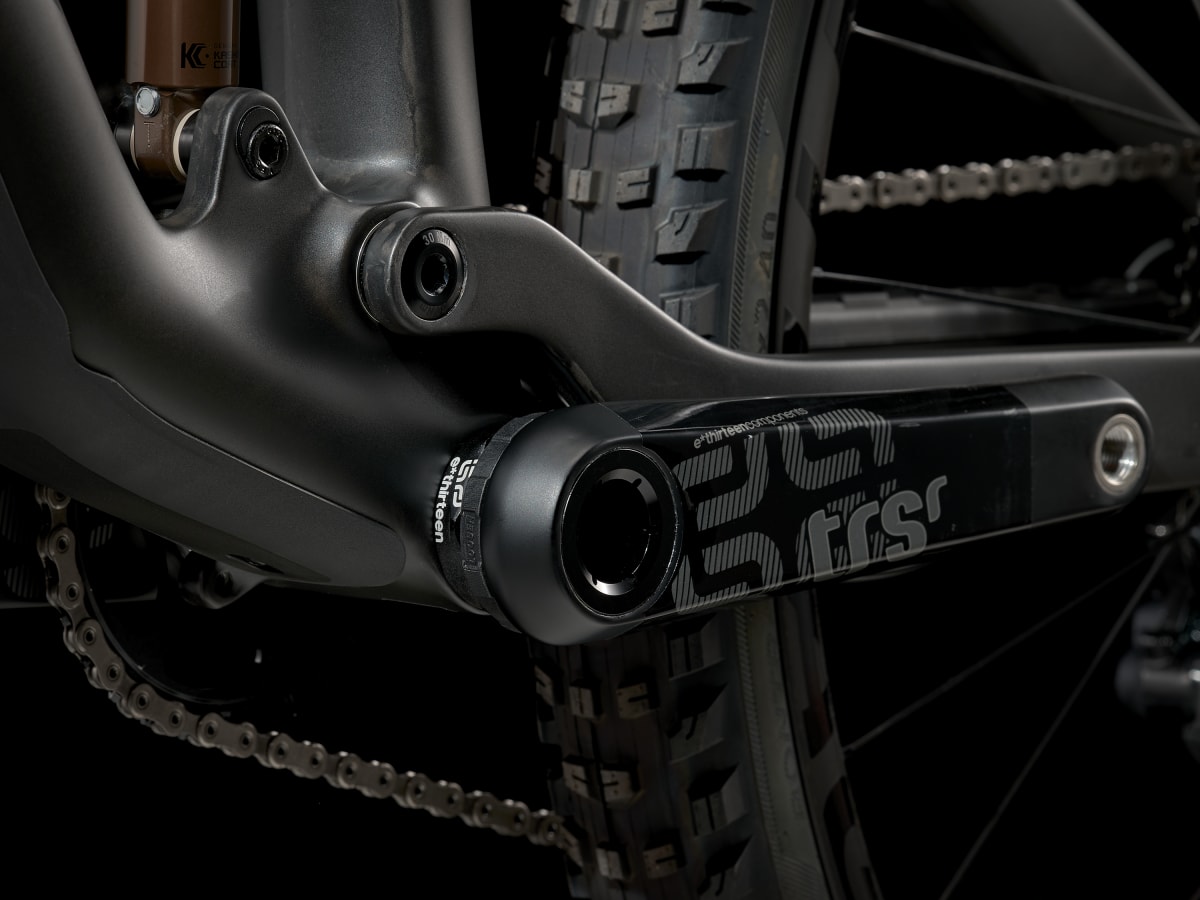

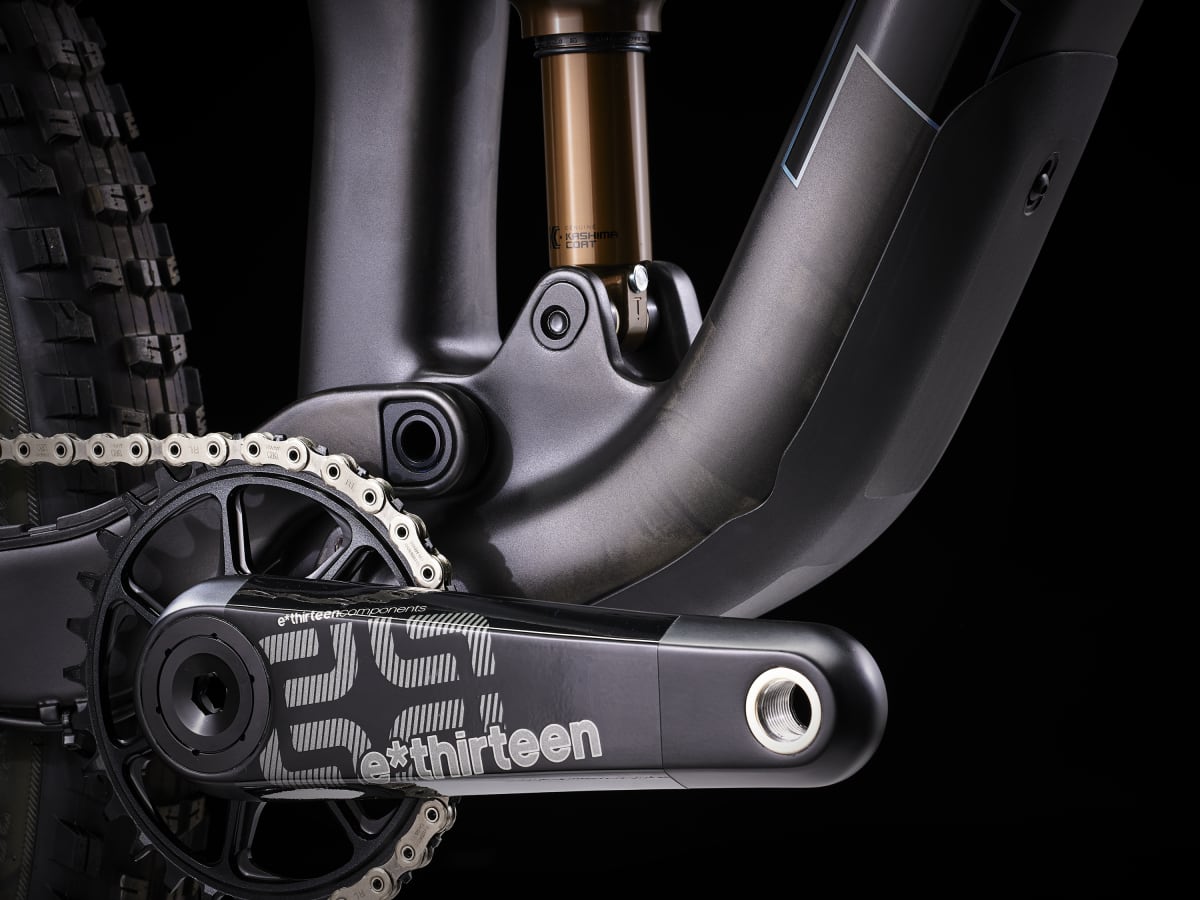

E*thirteen TRS Race Carbon, 30T, 55 mm chain line, 170 mm length
E*thirteen BB20-P, BSA threaded, 73 mm width

Seatpost

Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length

Shifters

Shimano XTR M9100, 12-speed

Handlebar

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length

Front brake

Shimano XTR M9100 hydraulic disc // Shimano XTR M9100 hydraulic disc
Shimano RT86, 6-bolt, 160 mm // Shimano RT86, 6-bolt, 180 mm
Max brake rotor size

Derailleur rear

Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

Bartape or grips

Bontrager XR Trail Elite, nylon lock-on

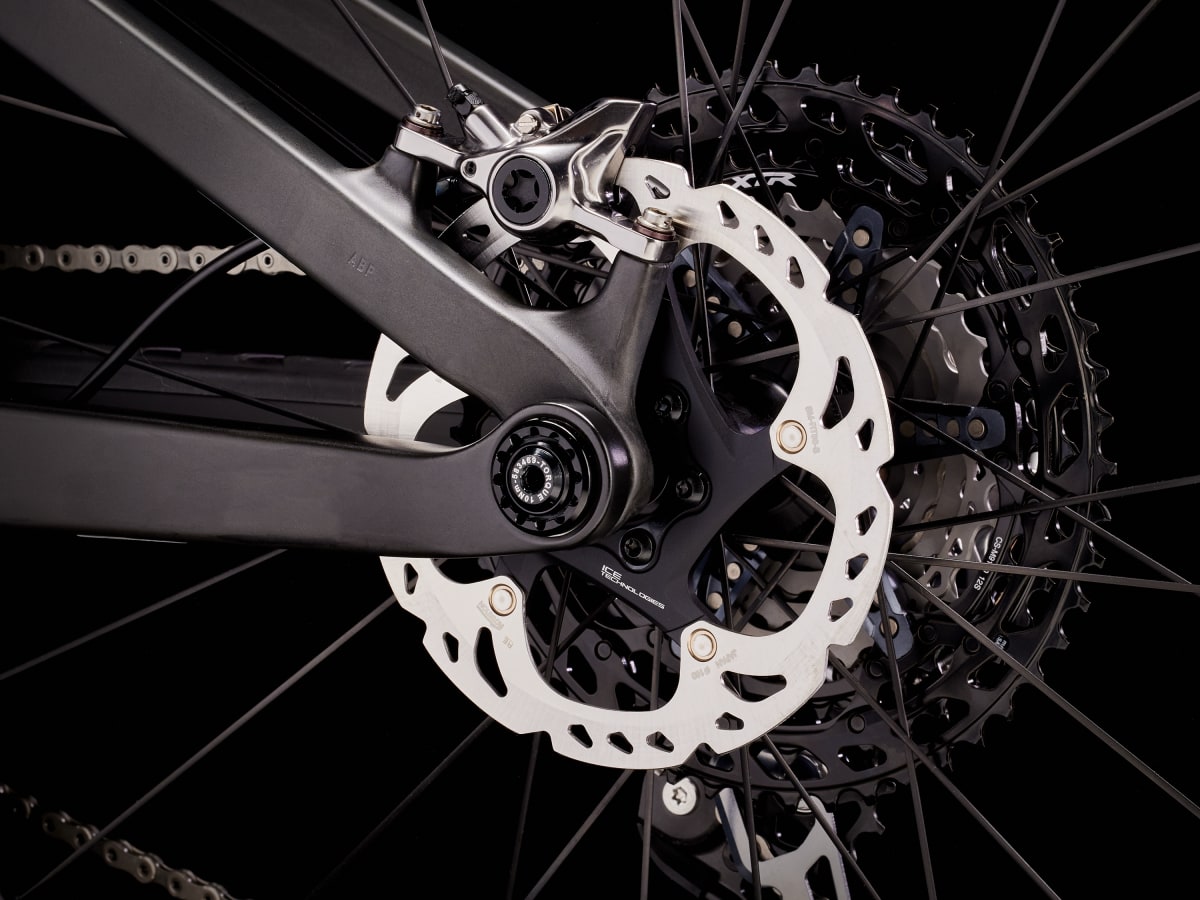

Primary rear brake

Shimano XTR M9100 hydraulic disc // Shimano XTR M9100 hydraulic disc
Shimano RT86, 6-bolt, 160 mm // Shimano RT86, 6-bolt, 180 mm
Max brake rotor size
