Trek Rail 9.9 XX1 AXS Gen 4

This product is currently out of stock and unavailable.

SKU: 37030 Category:

Description

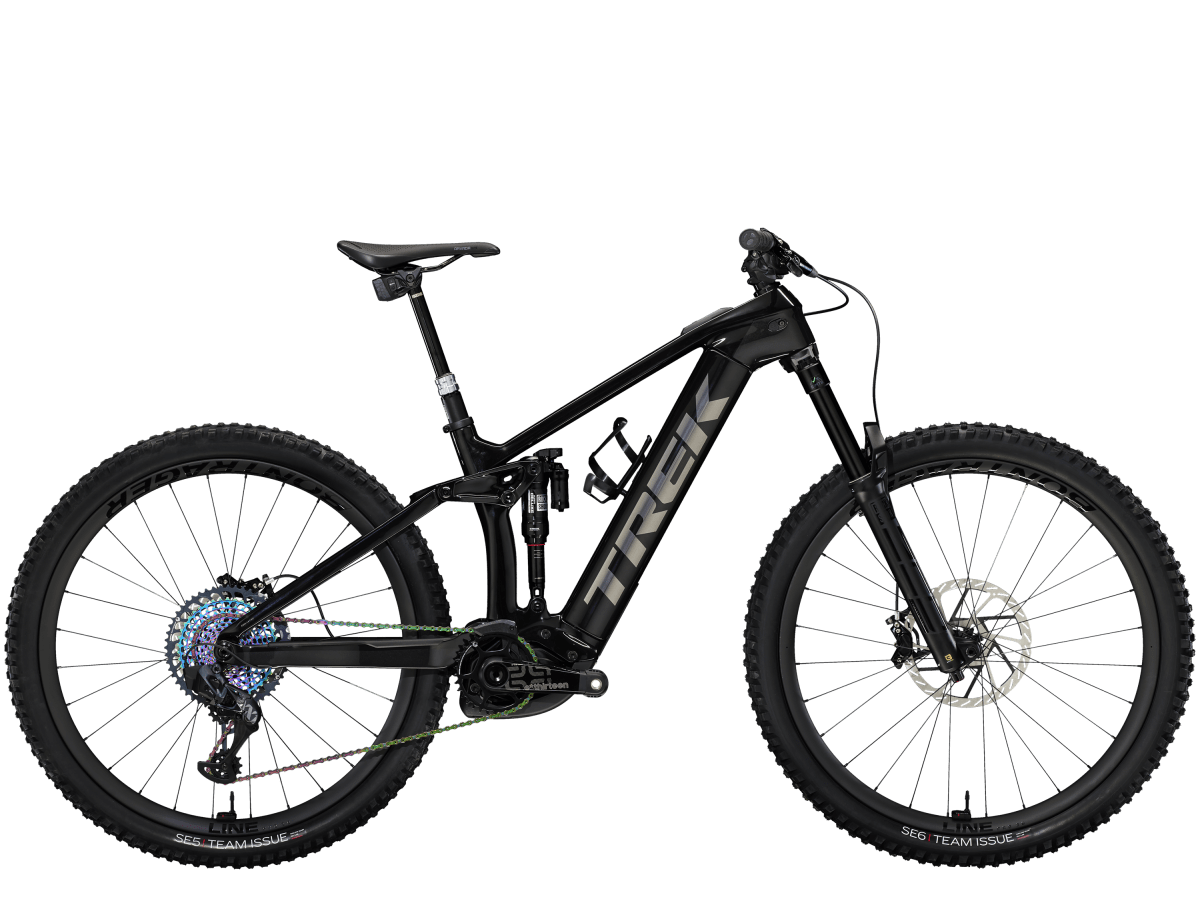

The Rail 9.9 is our best long-travel electric mountain bike. You get an extra-beefy carbon frame, unbelievably smooth RockShox suspension, SRAM’s best wireless electronic drivetrain and a powerful Bosch smart system Performance Line CX motor with an extra-long range battery and the new Mini Remote. The new System Controller display sits almost flush with the top tube for a sleek look wherever you roll that stays out of the way when you’re riding hard.

You want to spare no expense on your e-MTB experience. You want the most adjustability, smoothest performance, longest range and most high-tech electric assist you can get. You love customisation and want all the cool features of the Bosch smart system, and you want wireless electronic shifting.

An upgraded OCLV Mountain Carbon frame with longer reach and oversized head tube and seat tube for maximum strength. An extra-long-range 750 Wh battery, ultra-adjustable RockShox ZEB Ultimate fork, RockShox Super Deluxe Ultimate Thru Shaft shock and SRAM XX1 AXS drivetrain. You get Bosch’s smart system Performance Line CX with a new Mini Remote and Bluetooth® System Controller display that’s integrated into the top tube, plus AirWiz pressure monitoring.

The Rail 9.9 is all about top-shelf tech. RockShox’s best enduro fork, Bosch’s biggest battery, the smooth shifting of XX1 AXS, an updated frame and AirWiz pressure monitoring, plus Bosch’s latest tech with smart system.
– The new System Controller shows your currently-selected assist level and remaining battery level. It’s neatly integrated into the top tube for maximum protection and a sleek look.
– Bosch’s new smart system gives you all the same power and responsiveness with a new discrete Mini Remote that’s streamlined with just the controls you need at your fingertips to toggle through assist levels or change to walk mode
– TyreWiz and AirWiz let you confirm that your tyres, fork and shock are at the right pressure at a glance. No more getting the pump or gauge out just to check
– Intelligent eMTB and eMTB Lite modes adjust the assist automatically based on your input to give you just the right amount of power for your ride
– The new frame is extra stout with a 34.9 mm seat tube to accommodate more robust dropper posts and an oversized head tube that works with burly e-MTB-optimised forks for less flex and more precise steering

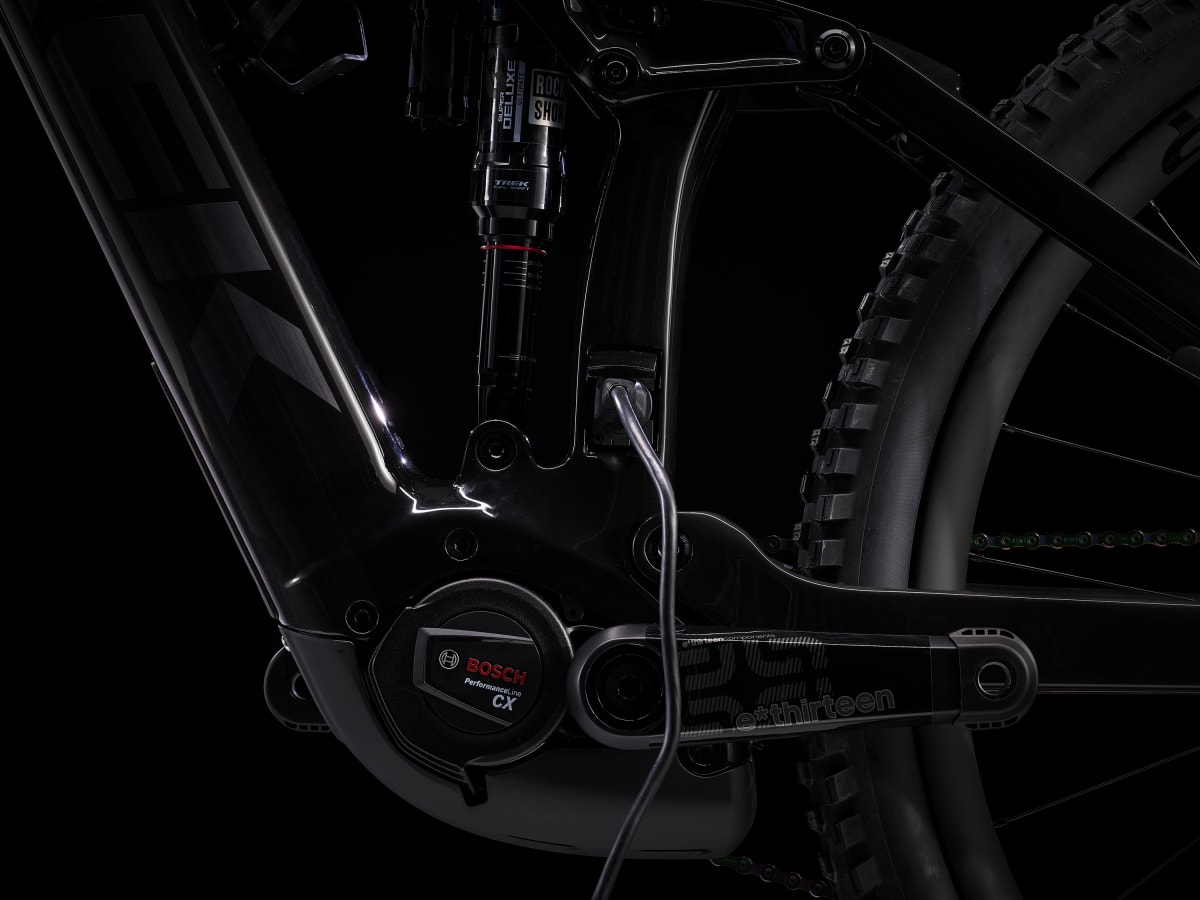

Removable Integrated Battery
RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security or just easier charging.

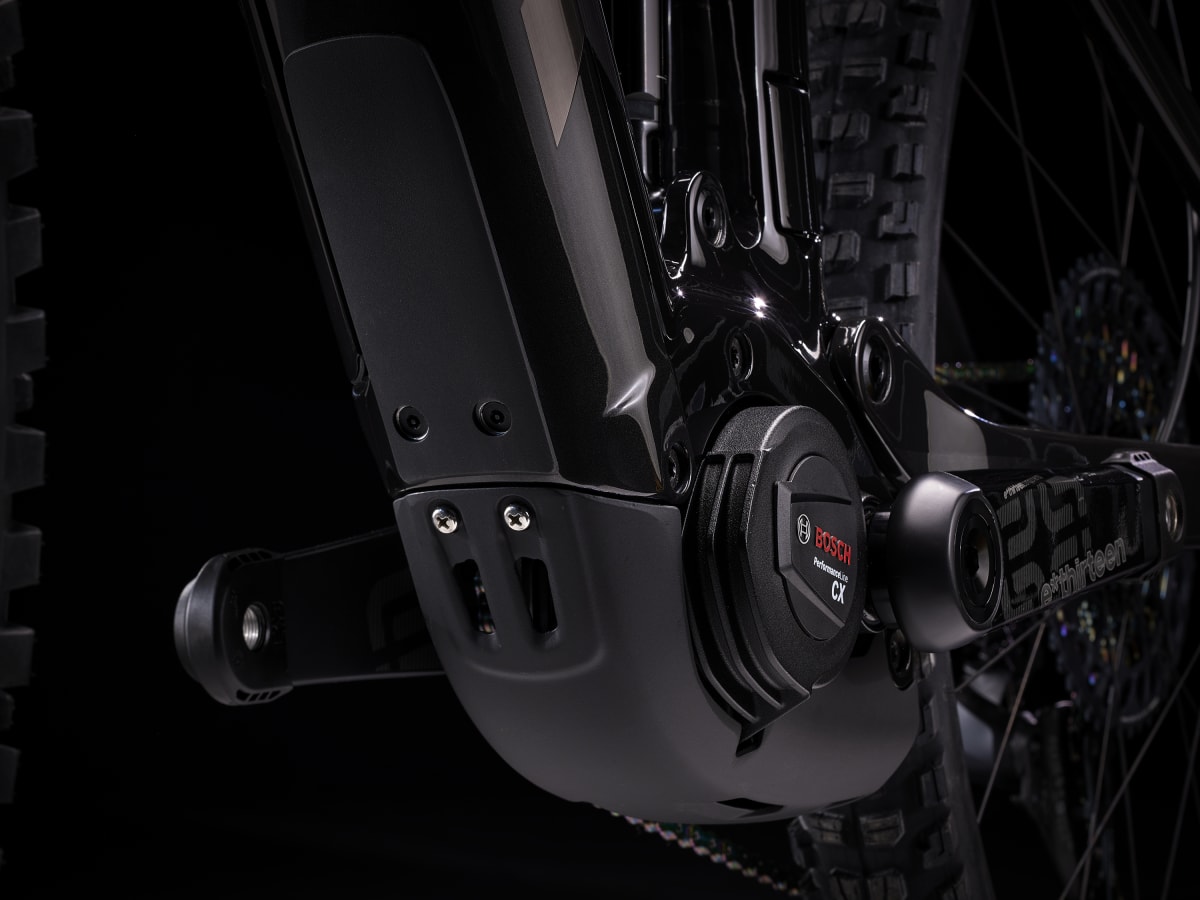

Bosch Performance Line CX motor
The Bosch Performance Line CX sets the standard for eMTB performance with up to 85 Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

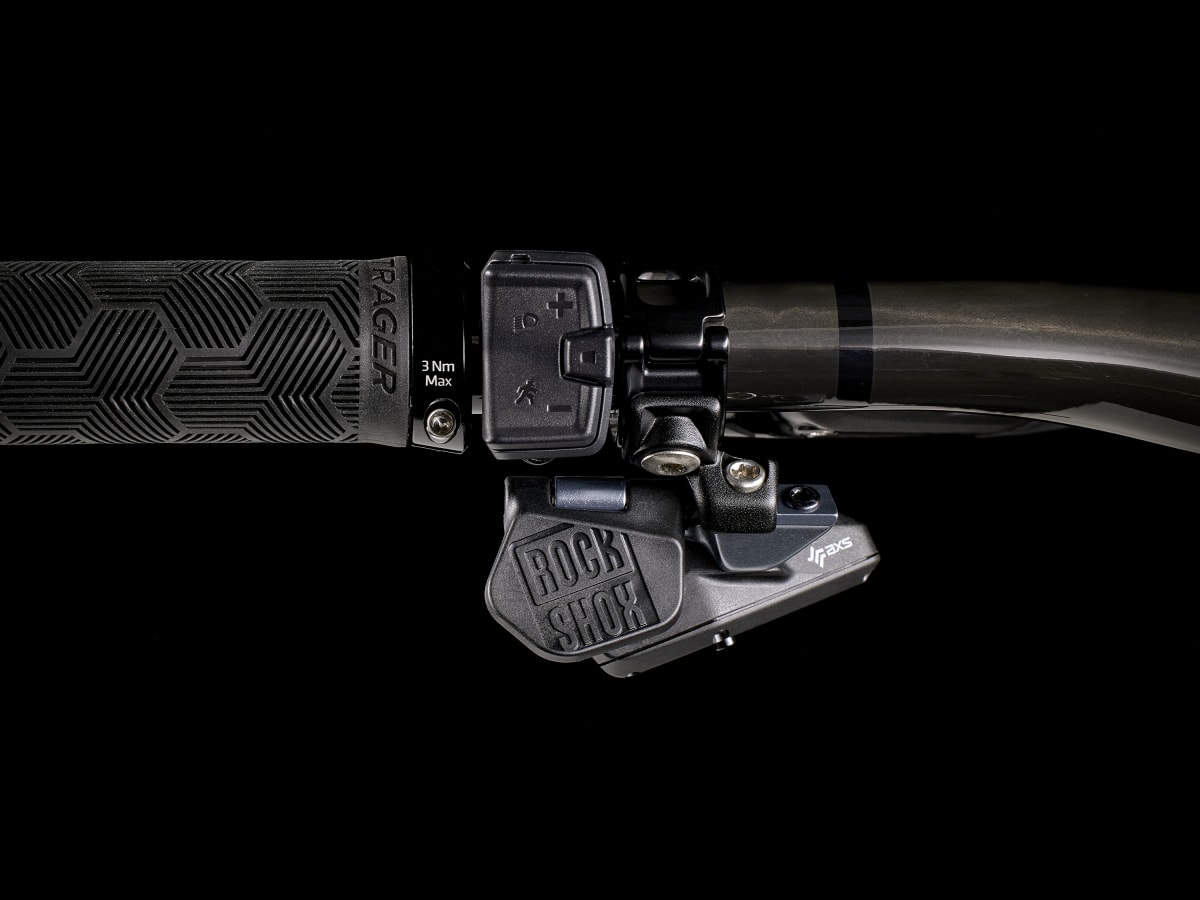

Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it’s wireless and connects with your System Controller via Bluetooth

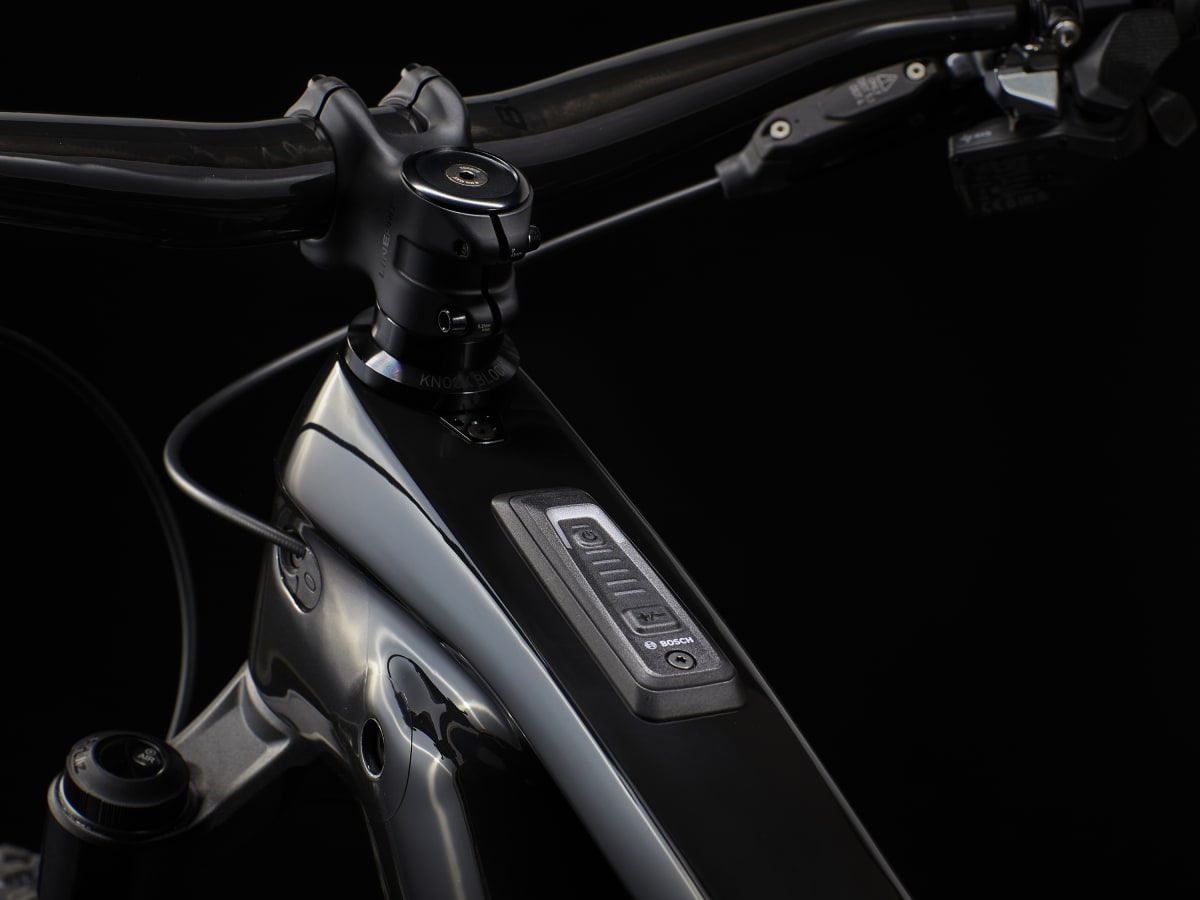

Bosch System Controller
The System Controller gives you a quick overview of your assist mode and battery level without distracting you from the ride. It’s integrated into the top tube so it’s out of the way but still easy to see with LED indicators. It also connects to the eBike Flow app via Bluetooth for accessing ride stats and performing system updates.

RockShox AirWiz and Quarq TireWiz
TyreWiz monitors your tyre pressure while AirWiz monitors your fork and shock pressure. Set your desired pressure in the SRAM AXS app and then just check the lights before each ride – red means you need a pump, green means go and ride.

Bosch eBike Flow app
The new eBike Flow app turns your ride into a personalised experience. Use it to customise your motor’s assist behaviour, track your ride stats and integrate your data with apps like Strava and Apple Health. There’s even handy features like navigation and service reminders.

Additional information

Weight

Size S – 23.6kg

Fork

RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 1.8" oversized tapered steerer, eMTB optimised crown, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel

Stem

Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length

Chain

SRAM XX1 Eagle, 12-speed

Frame

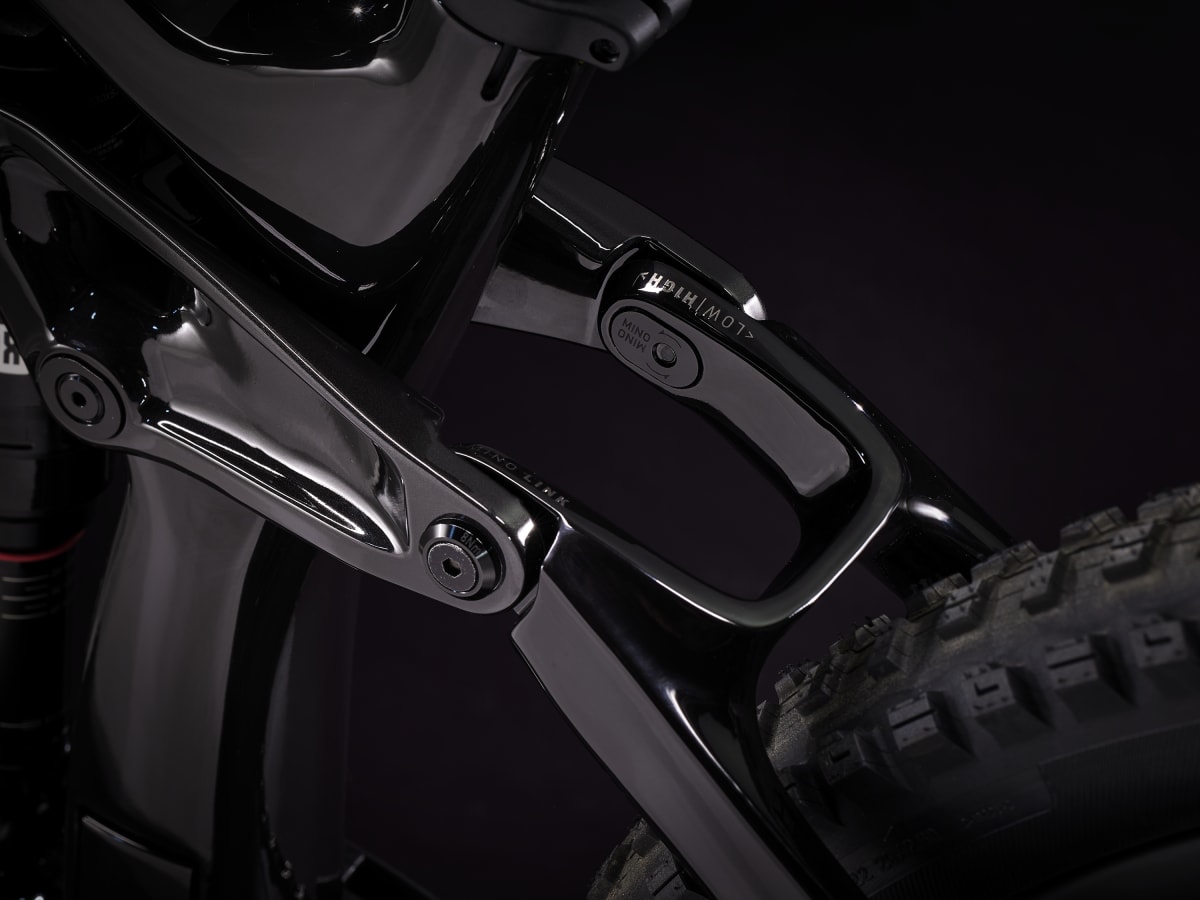

OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel

Gears

SRAM XX1 Eagle AXS

Pedals

VP-536 nylon platform

Saddle

Bontrager Arvada, austenite rails, 138 mm width

Wheels

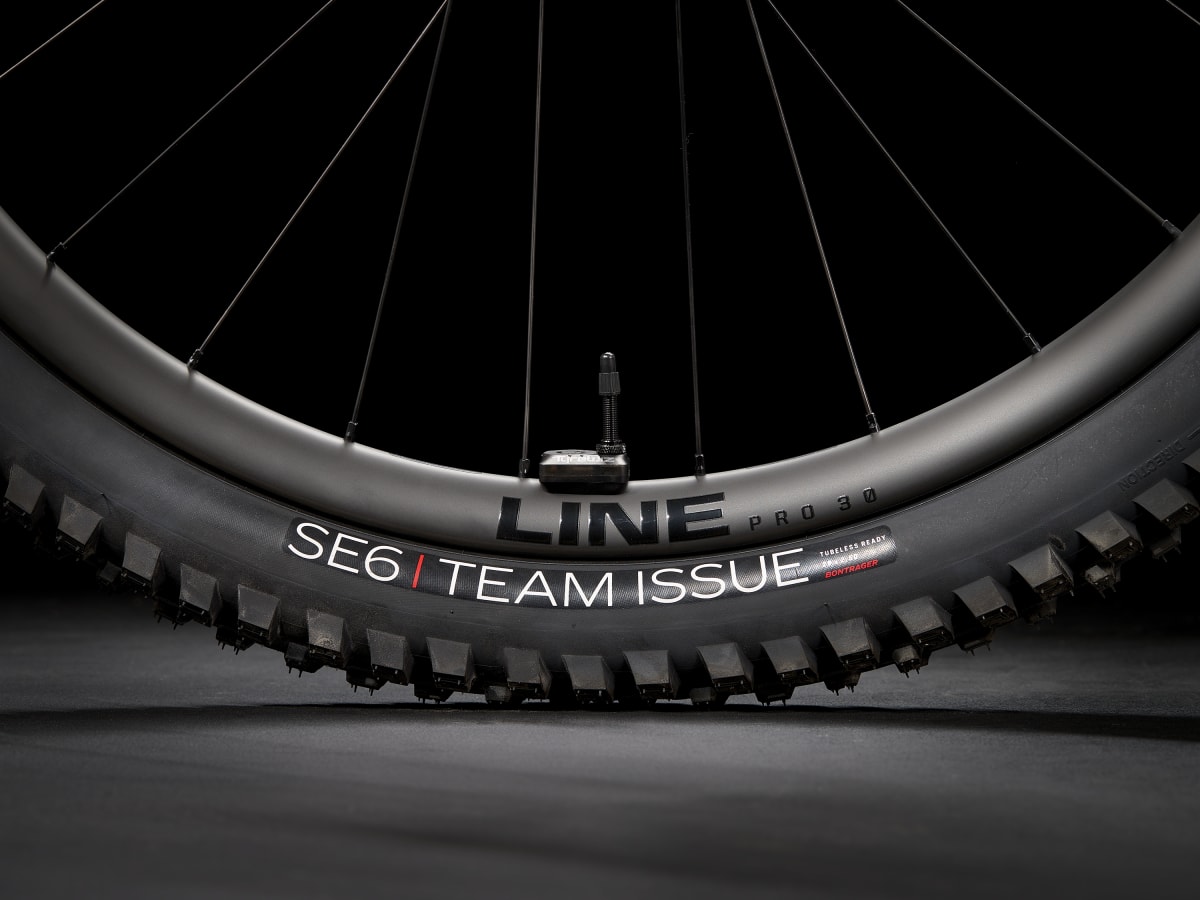

Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle

Cassette

SRAM Eagle XG-1299, 10-52, 12-speed

Crankset

E*thirteen E*spec Race carbon, 165 mm length

Seatpost

RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length

Shifters

SRAM Eagle AXS, wireless, 12-speed // SRAM Eagle AXS, wireless, 12 speed

Handlebar

Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width

Front brake

SRAM 6-bolt, 200 mm // SRAM HS2, 6-bolt, 220mm
Max brake rotor size

Derailleur rear

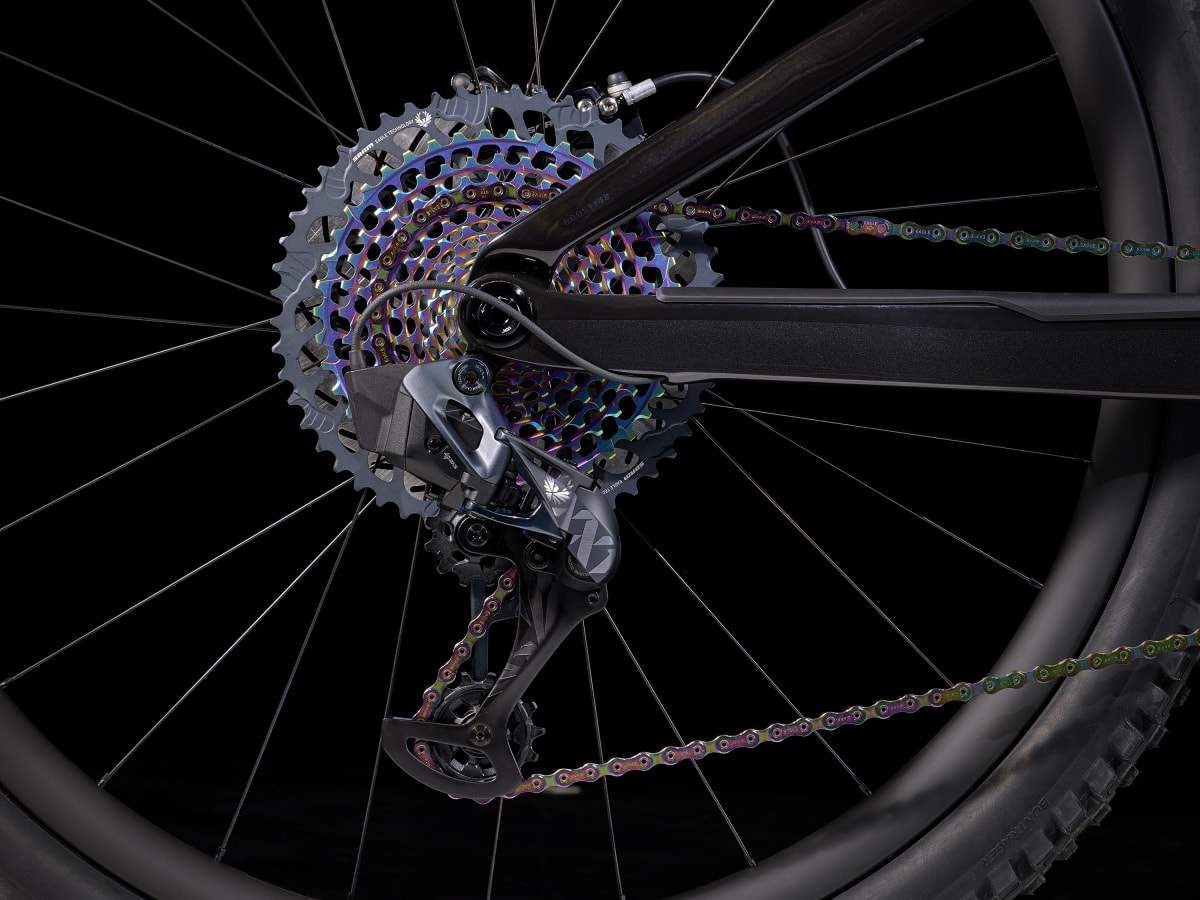

SRAM XX1 Eagle AXS

Bartape or grips

Bontrager XR Trail Elite, nylon lock-on

Primary rear brake

SRAM 6-bolt, 200 mm // SRAM HS2, 6-bolt, 220mm
Max brake rotor size
