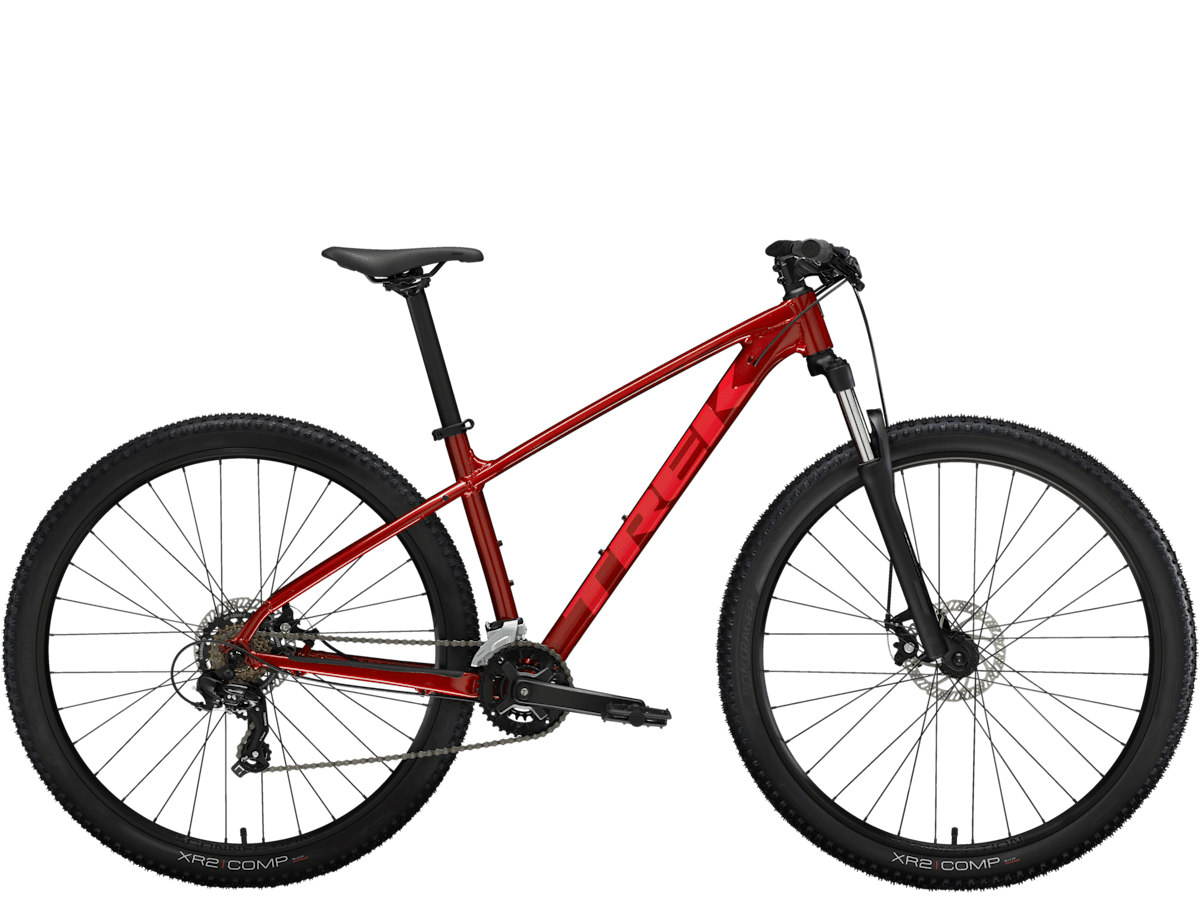

Trek Marlin 4 Gen 2

£500.00

SKU: 41613 Category:

Description

The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It’s ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting and mounts for a rack and mudguards make this a great bike for trail riders and campus commuters alike.

You want an introductory mountain bike at an incredible price, but also want a commuter that’s rugged enough to hop kerbs on the way to class.

A lightweight aluminium frame with internal routing to protect your cables and add to the bike’s sleek look, trustworthy 14-speed Shimano shifting with a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a suspension fork that takes the edge off bumps and rough terrain.

The Marlin is made for any adventure. The rack and mudguard mounts make it a great choice for commuters who want to get a little rad on the way to class or the shops.
– The Marlin Gen 2 is ready to roll with easy to use features that help you get the best bang for your buck

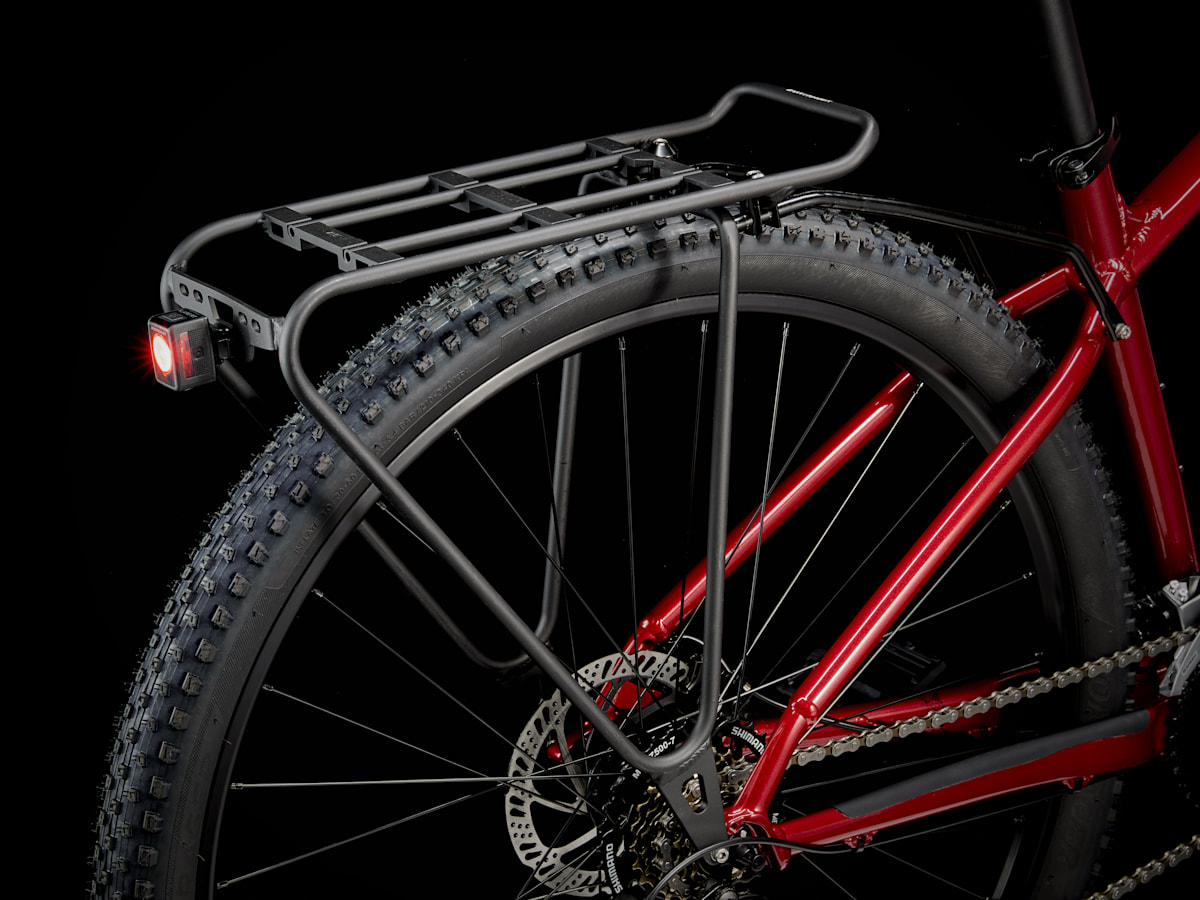

– Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
– Smaller frame sizes (XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
– Marlin models in XS and S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
– Like every Trek, it’s backed by a lifetime warranty

Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.

High tech, high value

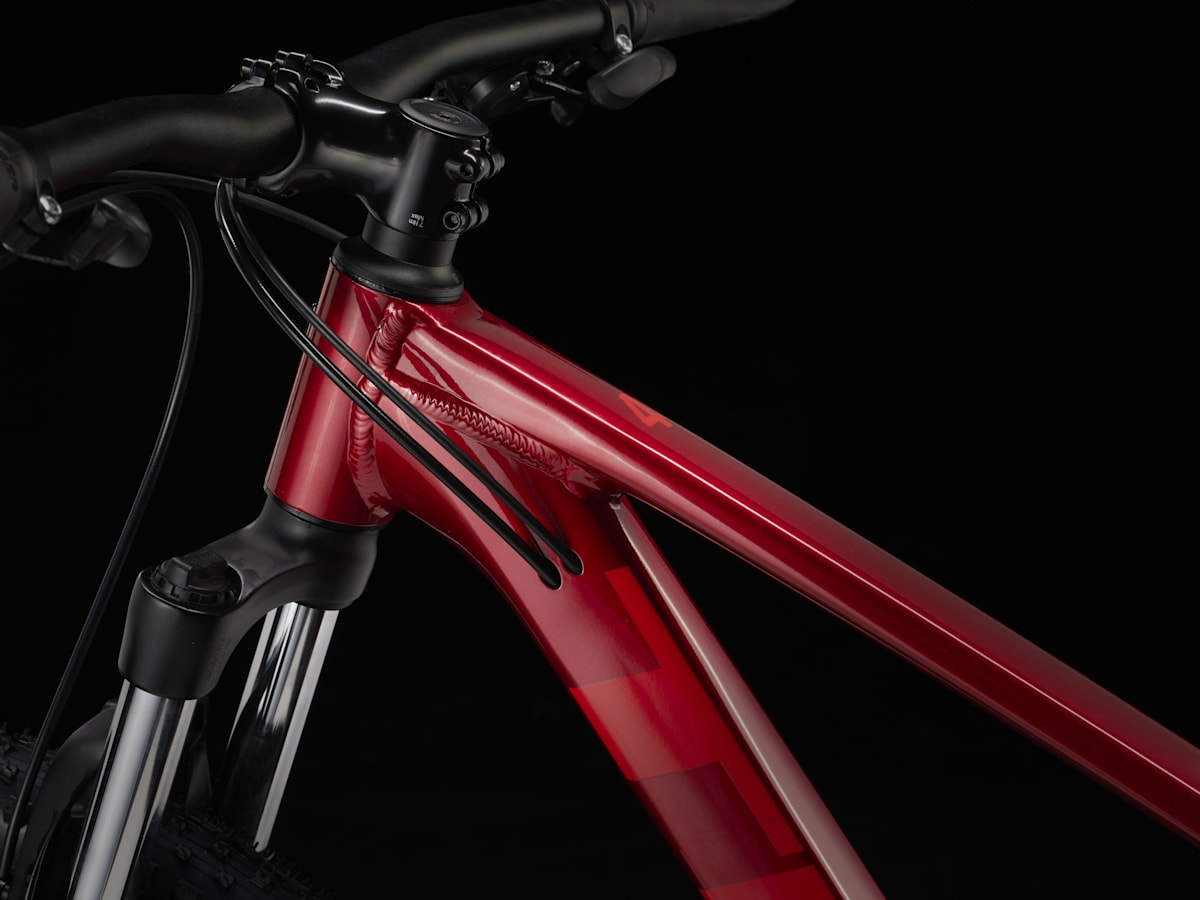

Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.

Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

Additional information

Weight

Size L – 14.6kg

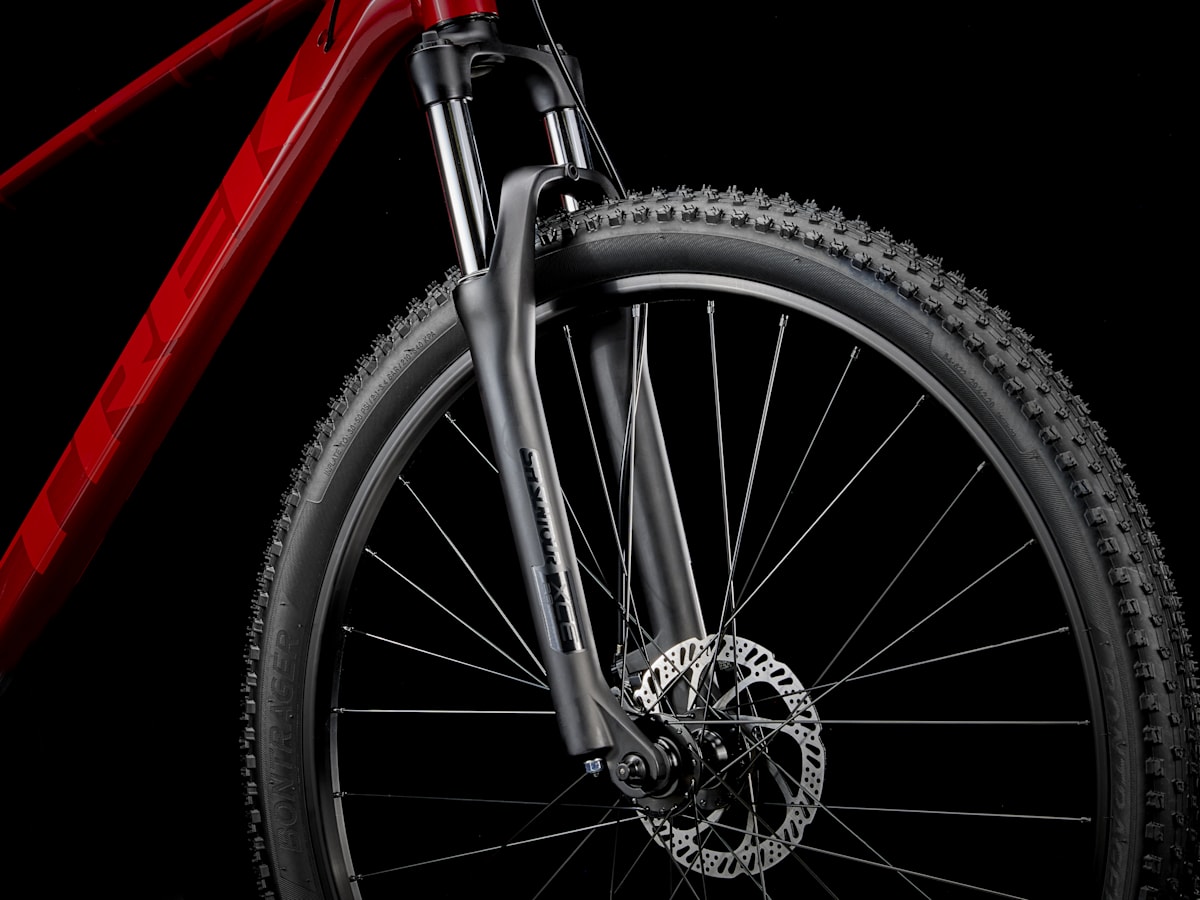

Fork

SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Stem

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length

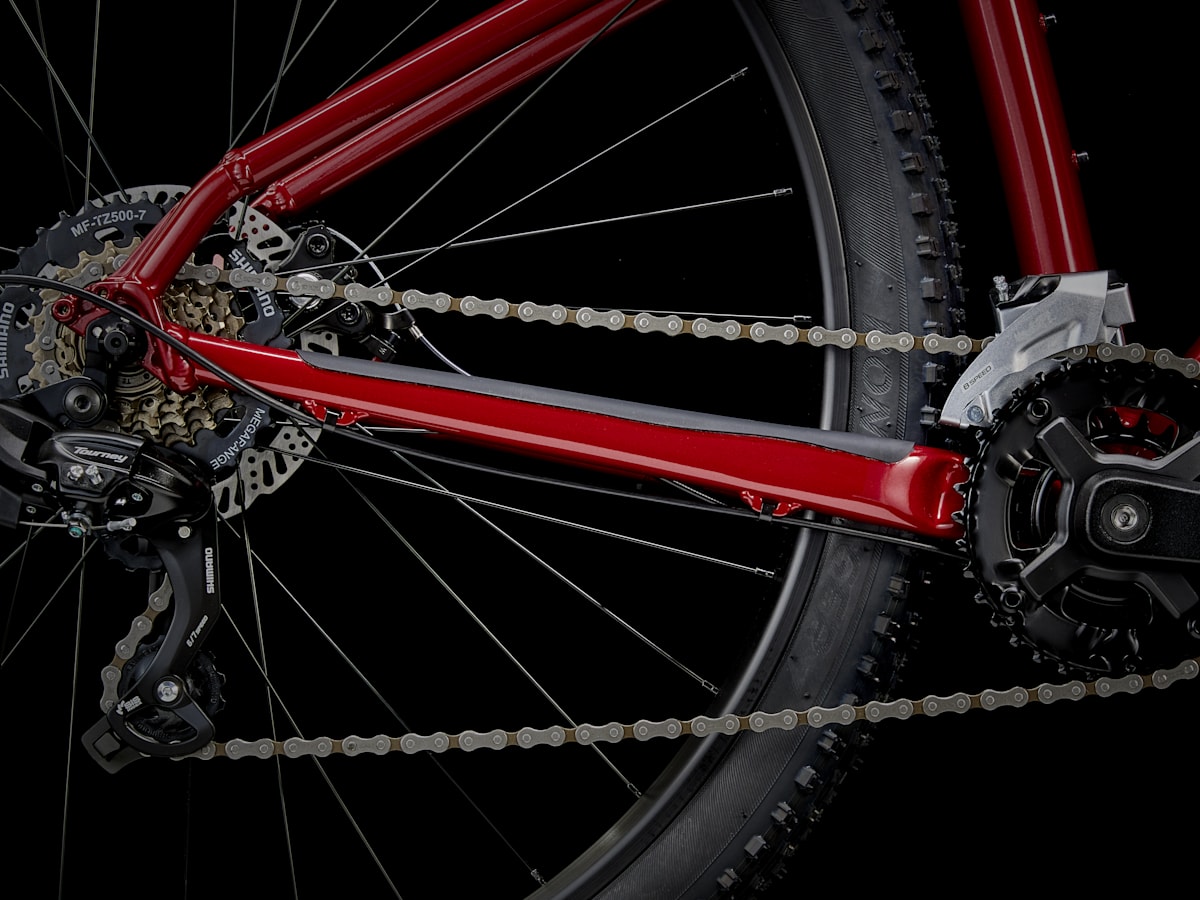

Chain

KMC Z7, 7-speed

Frame

Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR

Gears

Shimano Tourney TY300

Pedals

VP-536 nylon platform

Saddle

Bontrager Verse Short, stainless steel rails

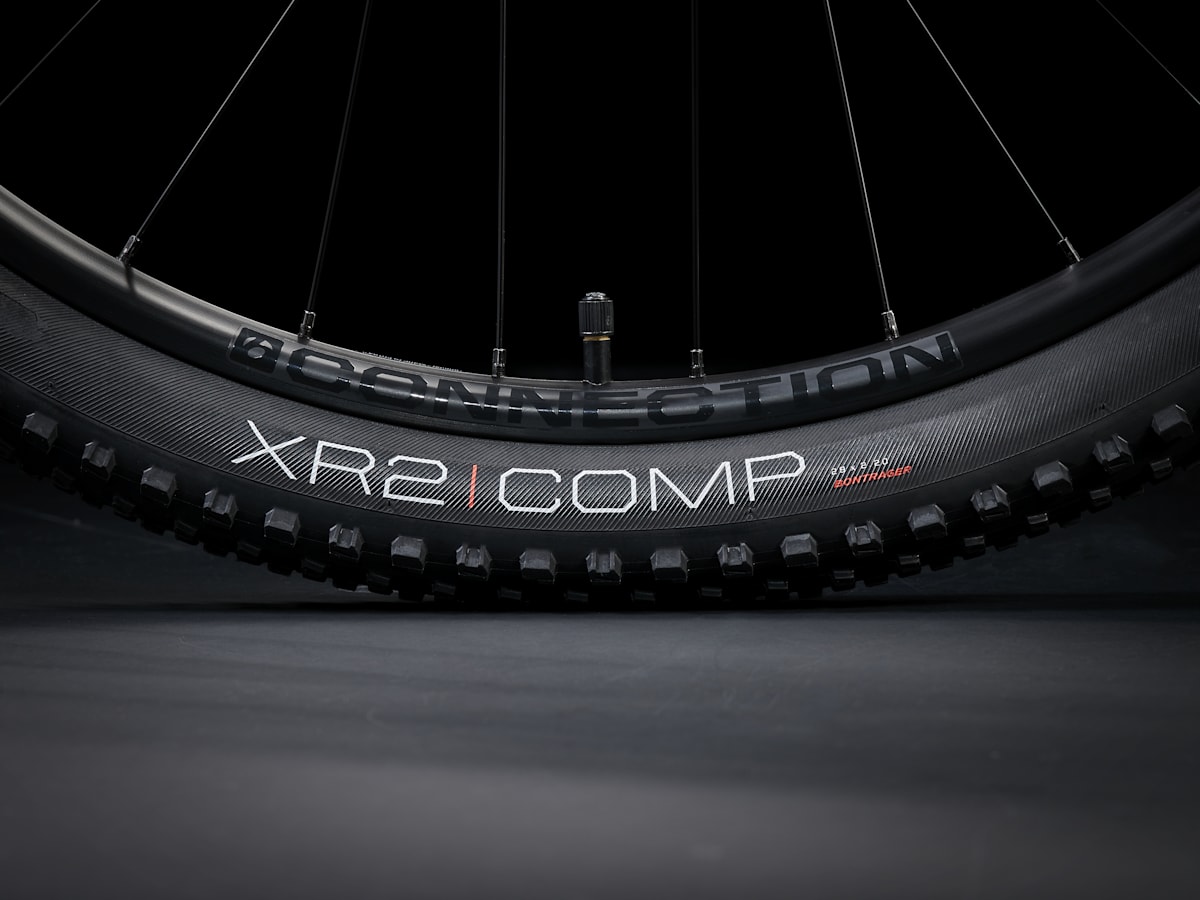

Wheels

Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Formula DC-20, alloy, 6-bolt, 5×100 mm QR
Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135×5 mm QR

Headset

Semi-integrated, 1-1/8"

Cassette

Shimano TZ500, 14-34, 7-speed

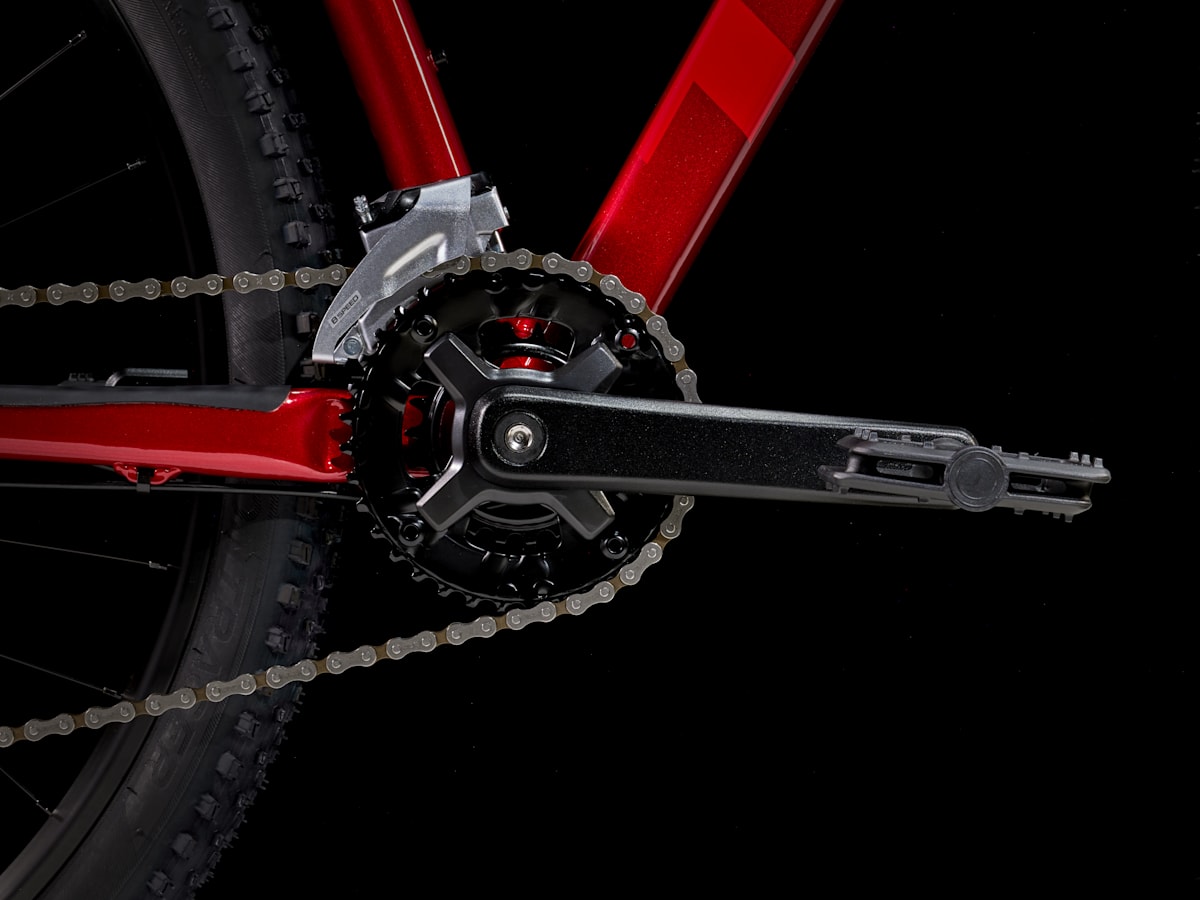

Crankset

ProWheel TM-CY10, 36/22, 175 mm length
VP BC73, 73 mm, threaded cartridge

Seatpost

Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

Shifters

Shimano EF500, 2-speed // Shimano Altus EF500, 7-speed

Handlebar

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Front brake

Tektro MD-M280 mechanical disc // Tektro MD-M281 mechanical disc // Tektro MD-M280 mechanical disc, 160 mm rotor // Tektro MD-M281 mechanical disc, 160 mm rotor
Tektro wave, 6-bolt, 160 mm
Max brake rotor size

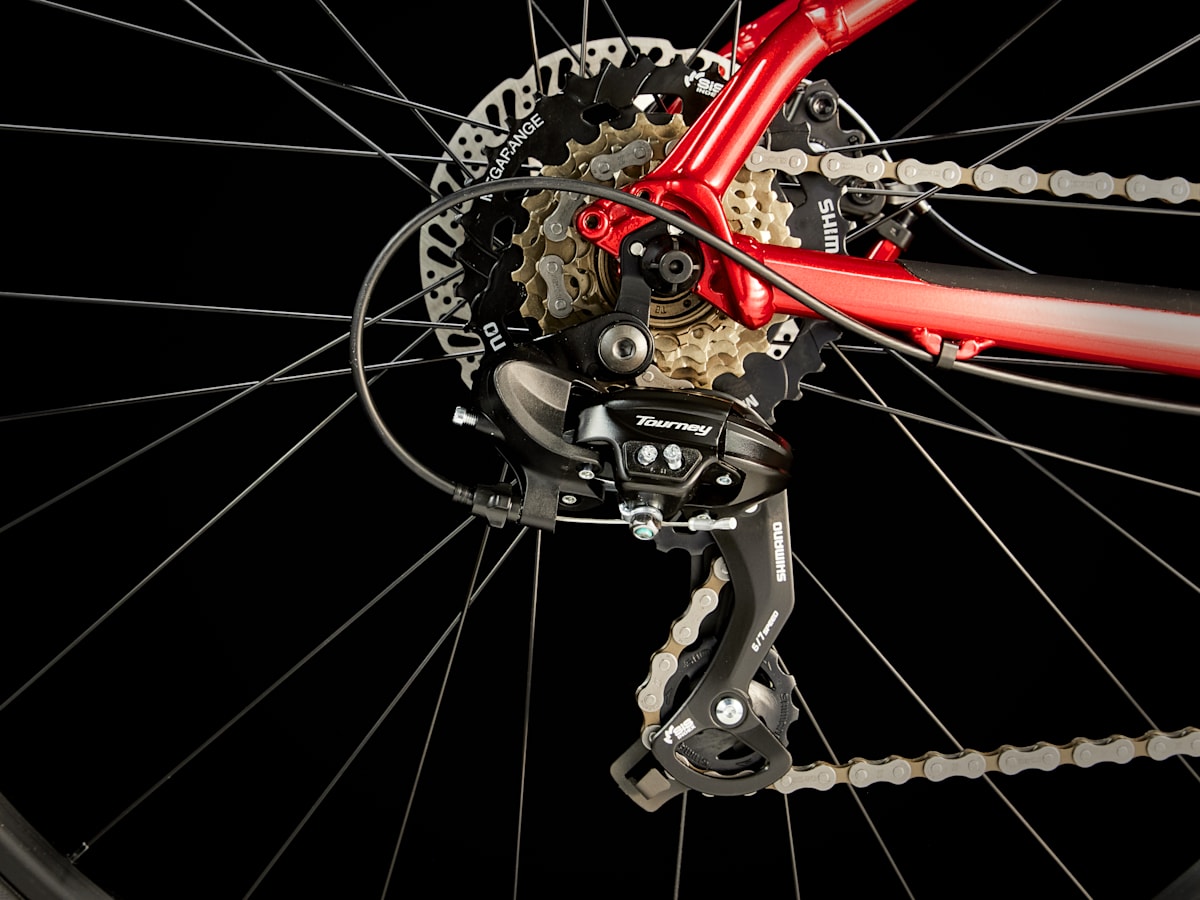

Derailleur rear

Shimano Tourney TY300

Bartape or grips

Bontrager XR Endurance Comp, lock-on

Derailleur front

Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

Primary rear brake

Tektro MD-M280 mechanical disc // Tektro MD-M281 mechanical disc // Tektro MD-M280 mechanical disc, 160 mm rotor // Tektro MD-M281 mechanical disc, 160 mm rotor
Tektro wave, 6-bolt, 160 mm
Max brake rotor size
