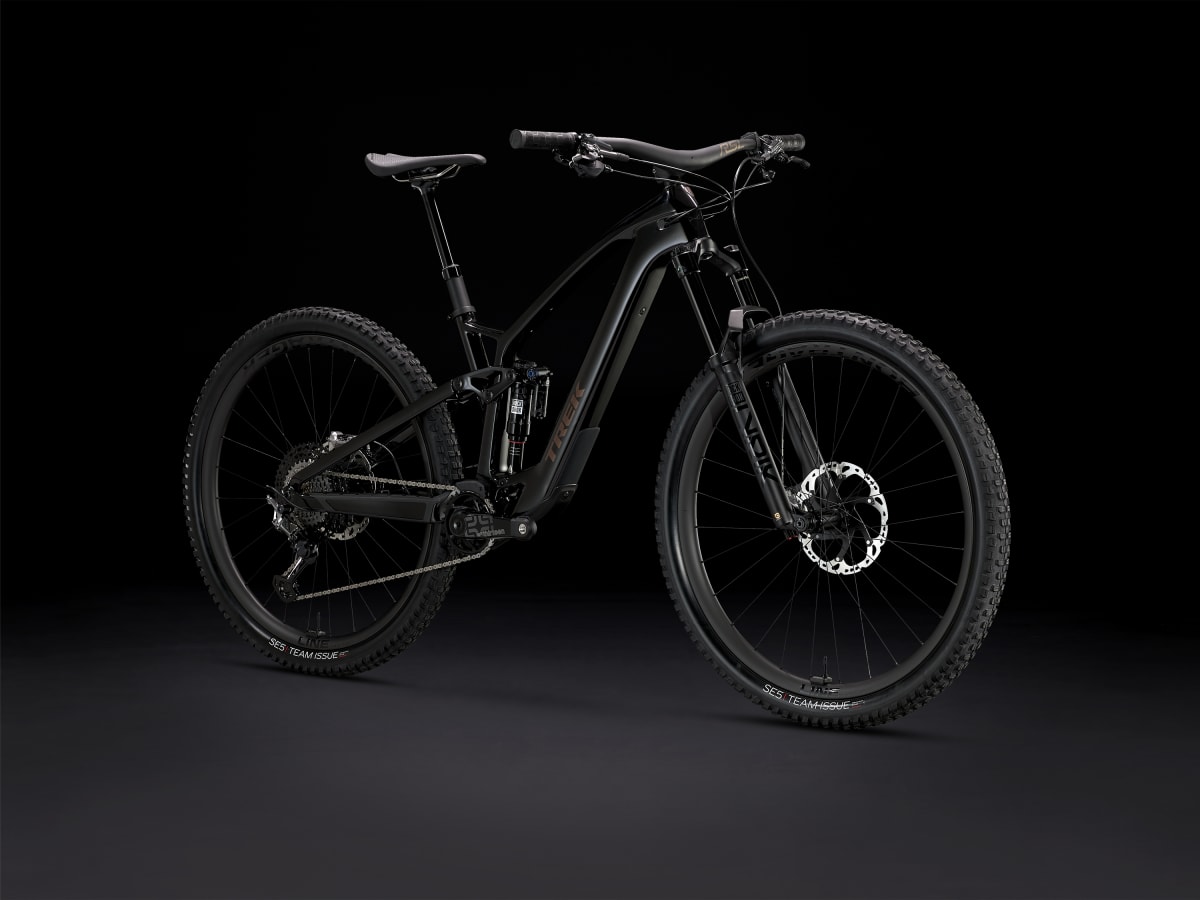

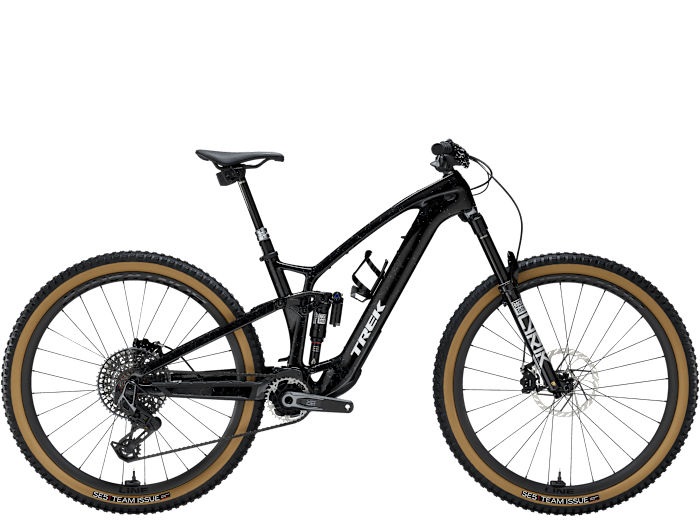

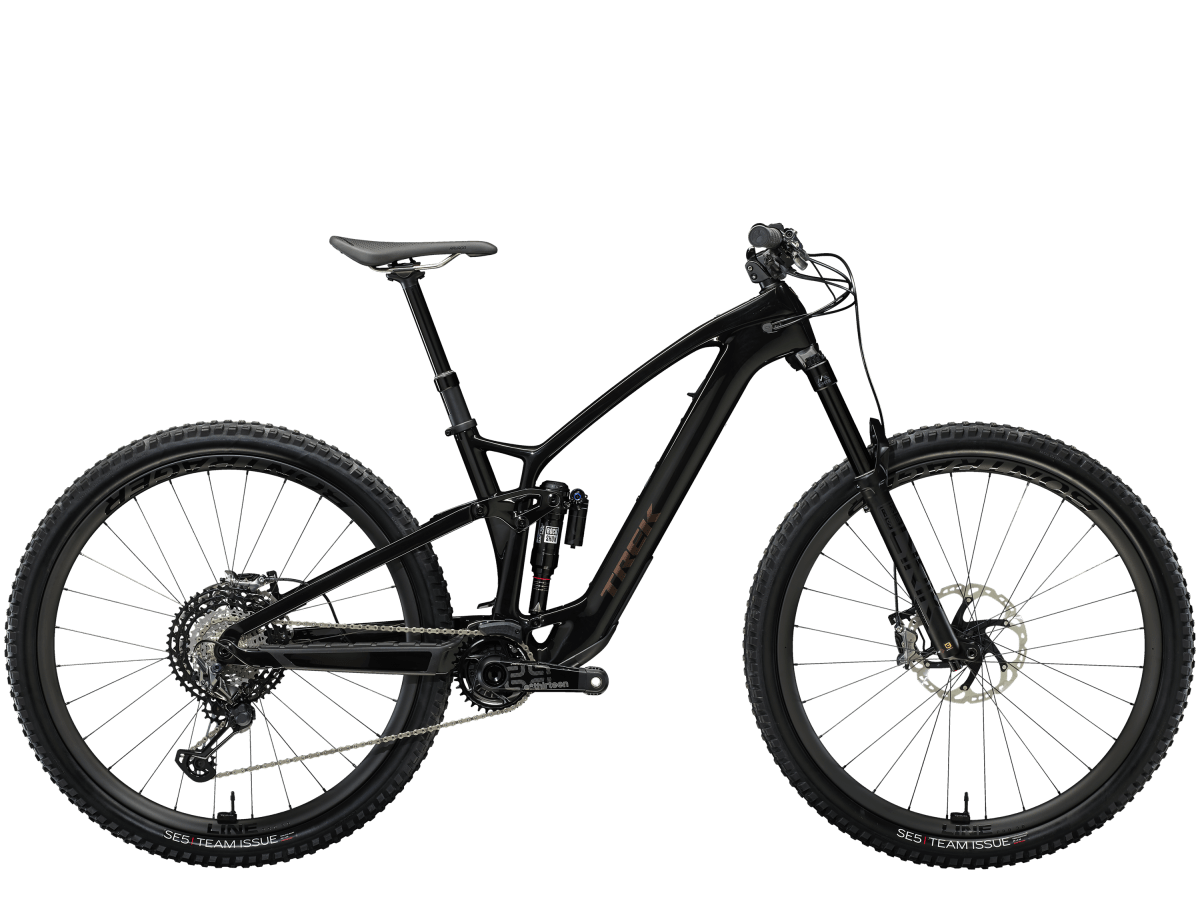

Trek Fuel EXe 9.9 XTR

This product is currently out of stock and unavailable.

SKU: 36368 Category:

Description

The Fuel EXe 9.9 XTR redefines next level mountain biking with a package that ticks every box – and then some. From its quiet TQ transmission that blends in with nature to its carbon wheels and frame dressed to the nines with top-tier Shimano XTR drivetrain, the EXe 9.9 is ready to rip. The upgraded, supple and smooth RockShox suspension package keeps you floating over the chunder while the quiet assist of TQ feels like a welcome tailwind when you’re pushing up quad-crushing climbs.

High performance isn’t enough – you want the best the industry has to offer. From the carbon frame and wheels to XTR drivetrain and titular RockShox suspension that soars over boulders and roots, you want a bike that’s ready for it all, and will help you get back to the top to take on lap after lap with a whisper-quiet motor that feels nearly invisible under you.

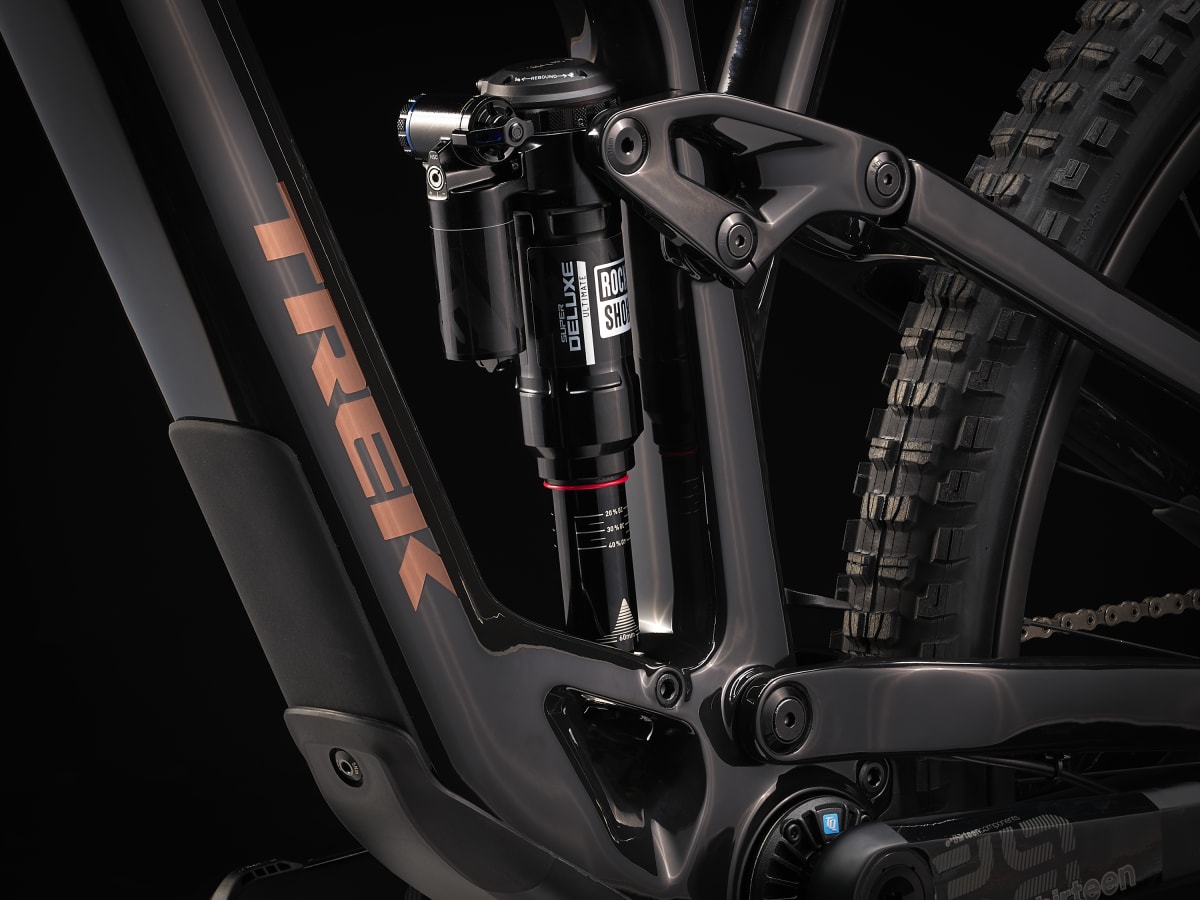

An OCLV Mountain Carbon frame with a fully encased 360 Wh battery, and space-age TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150 mm of RockShox Lyrik Ultimate fork with AirWiz, DebonAir spring and Charger 3 RC2 damper, and 140 mm of RockShox Super Deluxe Ultimate rear suspension. Plus, light and stiff carbon wheels set up tubeless, and Shimano’s finest XTR drivetrain.

The Fuel EXe 9.9 is an e-bike that redefines categories and is spec’d to meet the needs of riders with top taste. It eases steep climbs without pulling you out of your element with a quiet and ultra-durable TQ transmission without looking like a bulky e-bike, and offers a wealth of cream-of-the-crop components, from the carbon wheels to Shimano’s lightest and best performing XTR group set.
– It’s a bike that rides a fine line with the playfulness of a traditional mountain bike and assist to get you up for more
– You get the best of everything – OCLV carbon frame, carbon wheels, top-end suspension and components
– The RockShox suspension package comes equipped with AirWiz technology that makes dialling your suspension a breeze

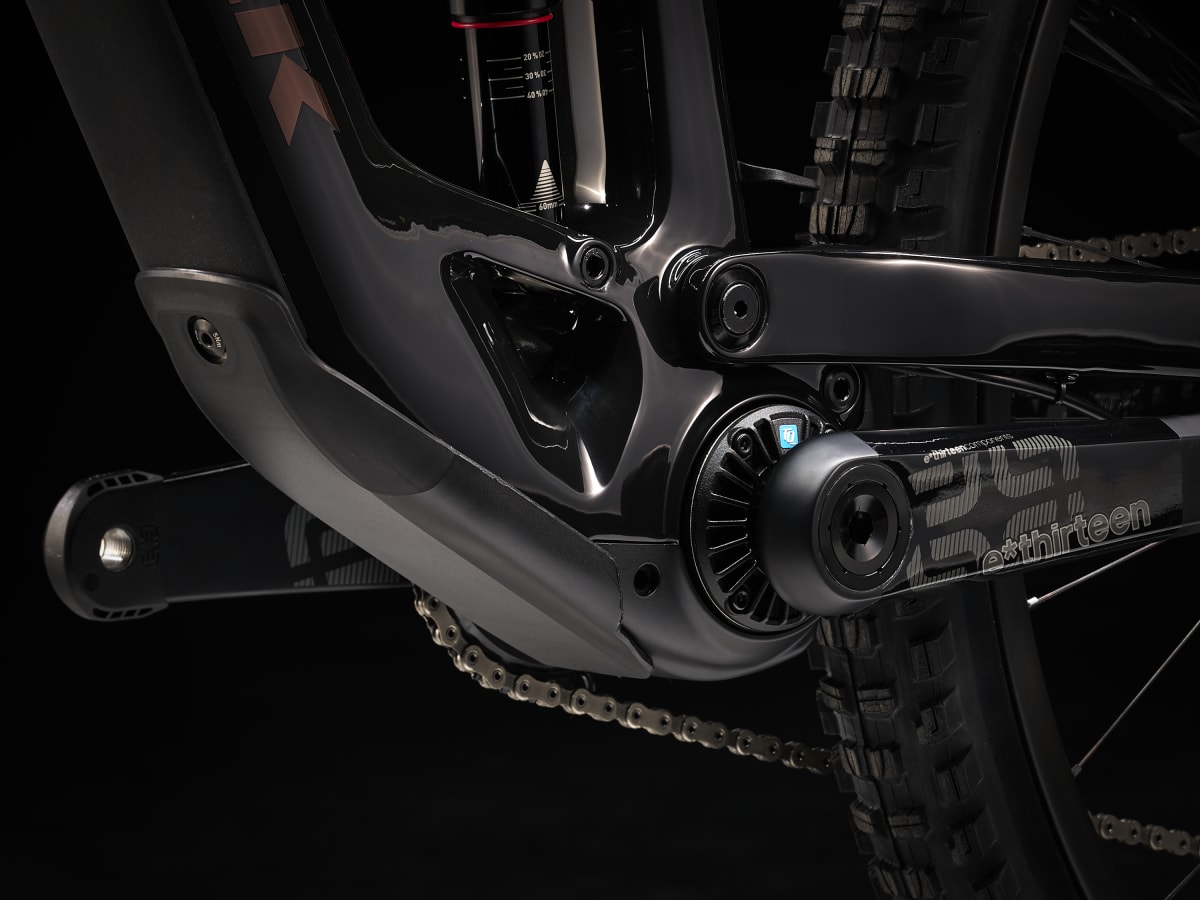

– Its tiny-but-mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel

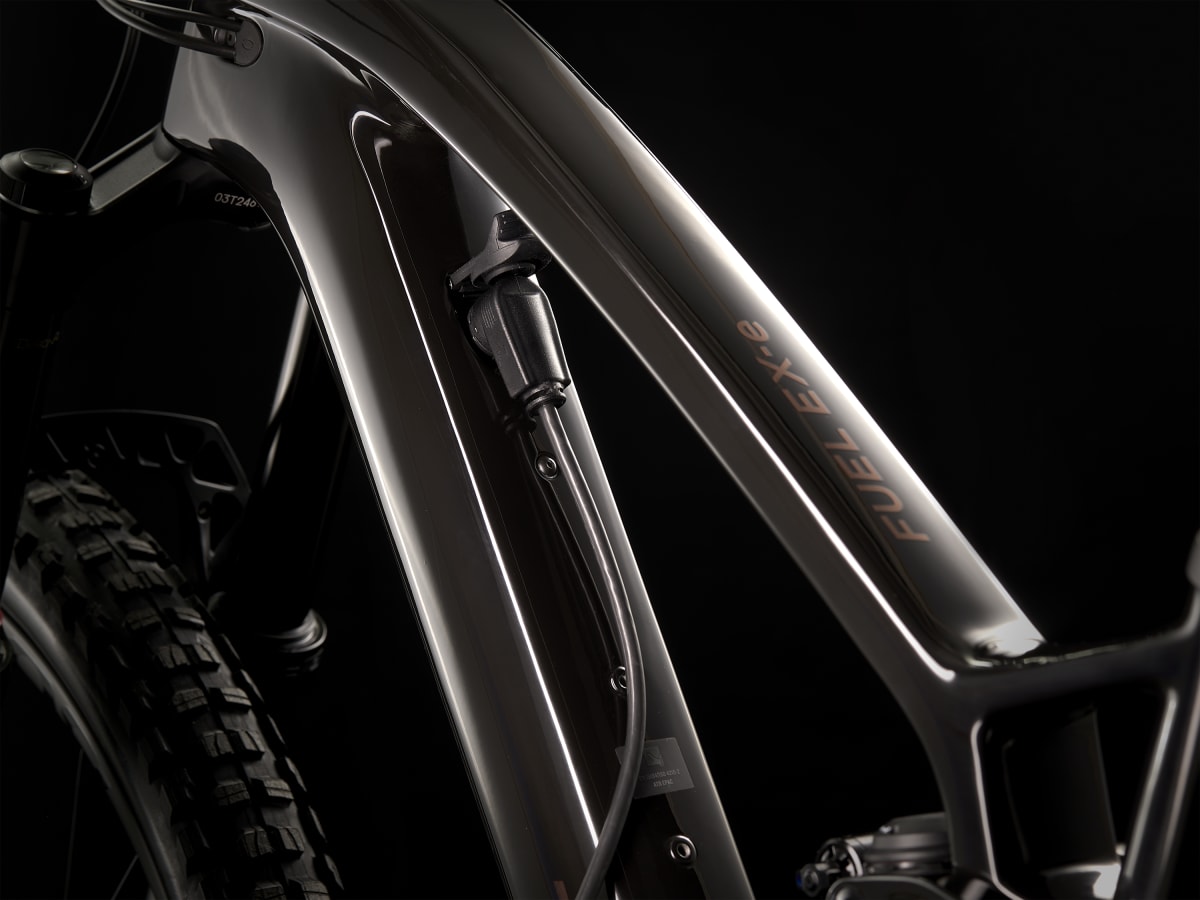

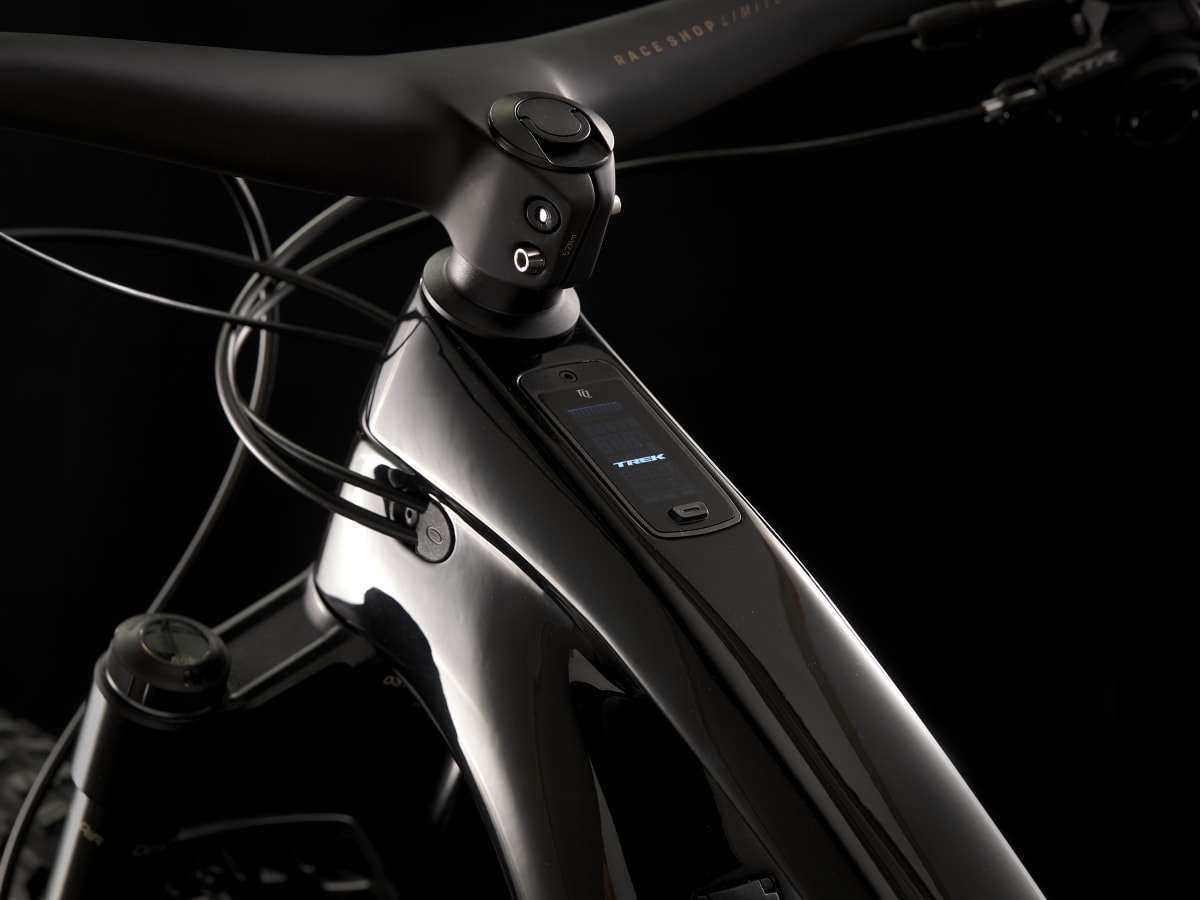

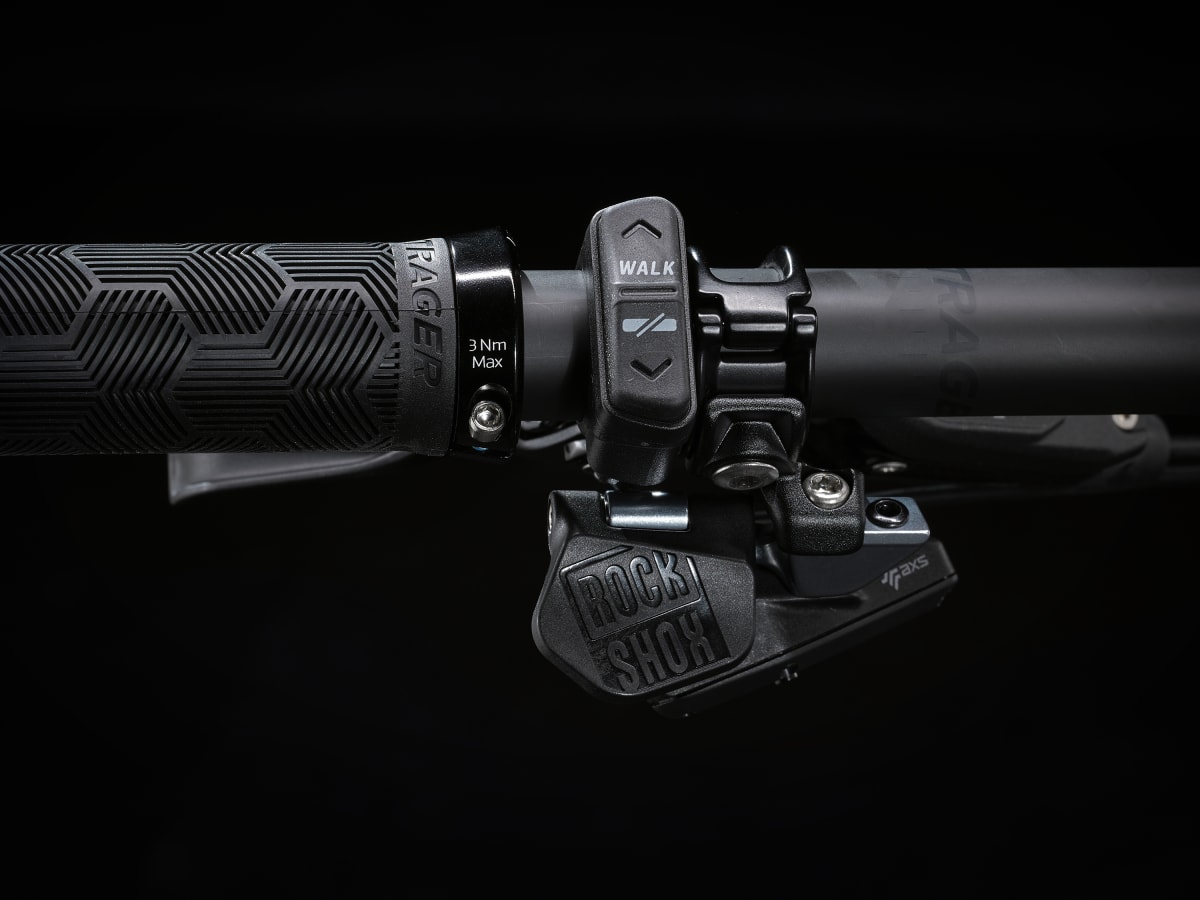

– The integrated display, charging port, and controls are simple to use, sleek and intuitive

Range Extender

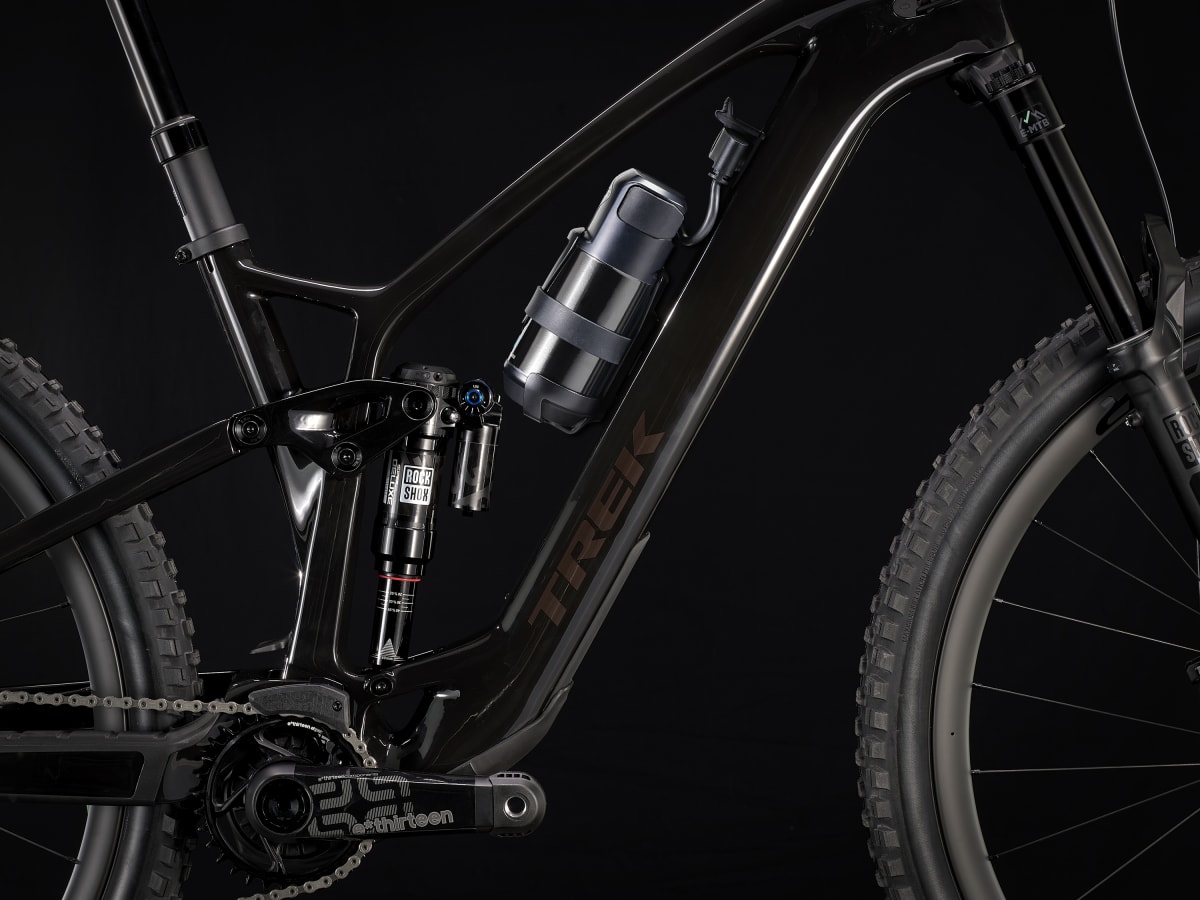

Give yourself 40% more range with an optional 160 Wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.

Connect, customise, calculate

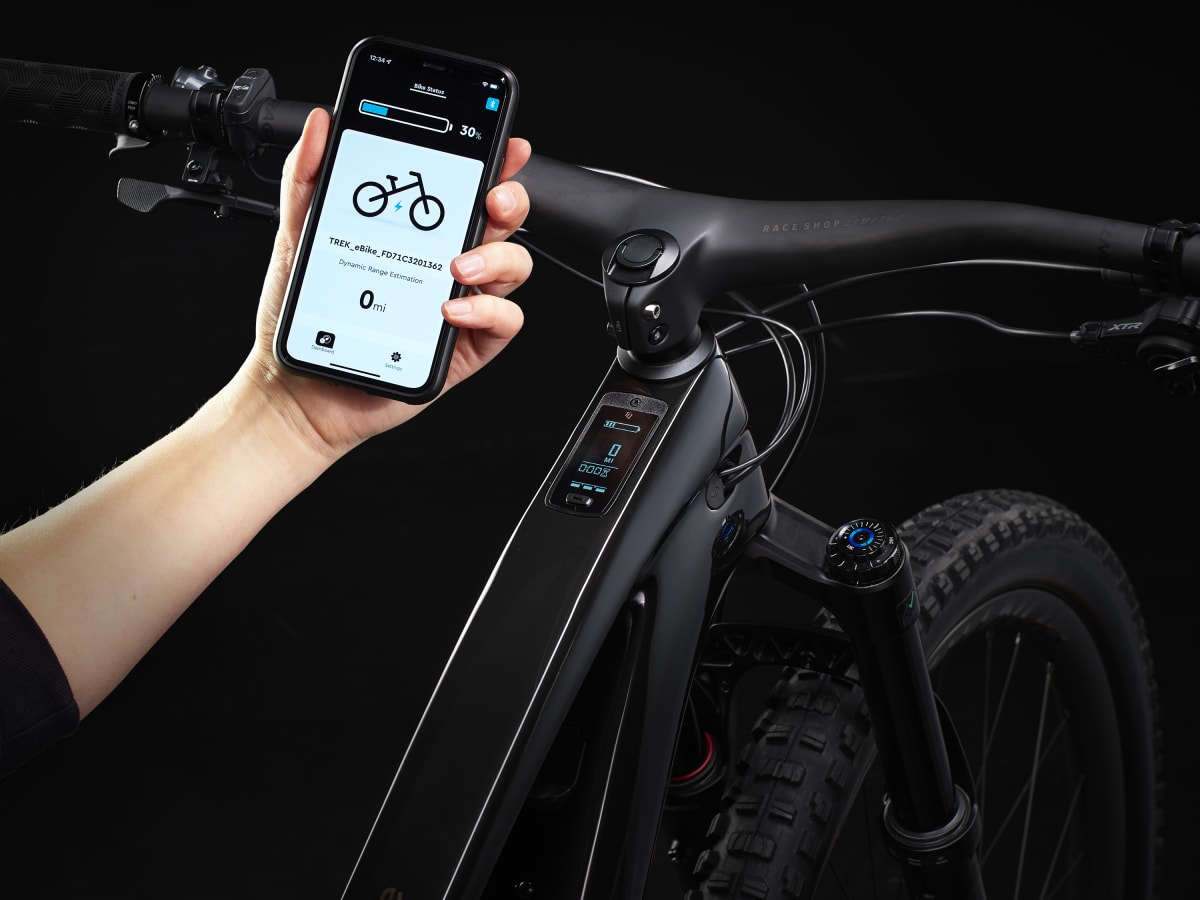

The Trek Central app seamlessly connects with your bike for custom motor tuning, activity tracking and more ways to analyse and personalise your ride. You even get navigation features and real-time range calculations.

Removable battery

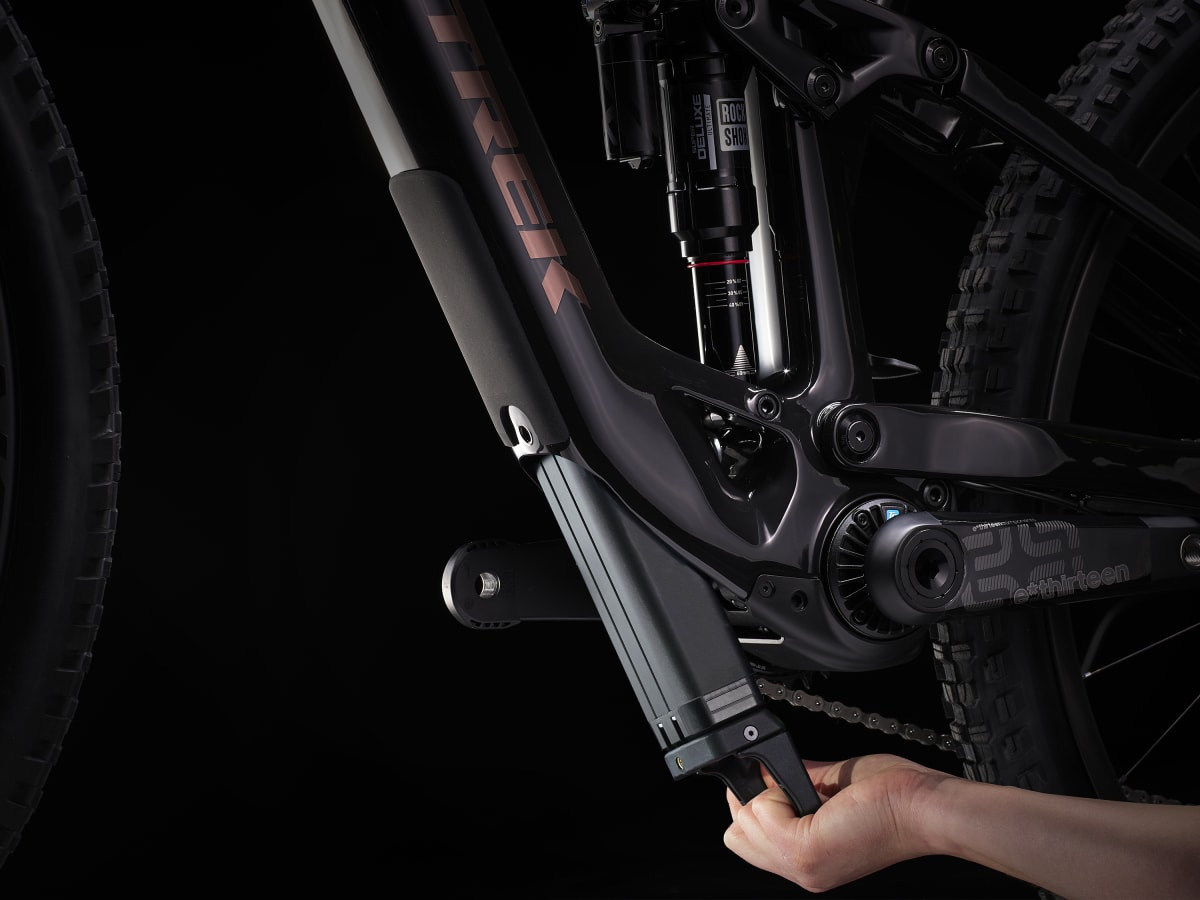

The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.

RockShox AirWiz and Quarq TireWiz
TyreWiz monitors your tyre pressure while AirWiz monitors your fork and shock pressure. Set your desired pressure in the SRAM AXS app and then just check the lights before each ride – red means you need a pump, green means go and ride.

BITS: Your trail-side saviour
Cleverly integrated into the steerer tube, the included BITS multi-tool has everything you need for trail-side adjustments and repairs.

Additional information

Weight

Size S – 18.3kg

Fork

RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 150 mm travel

Chain

Shimano Dura-Ace/XTR M9100, 12-speed

Frame

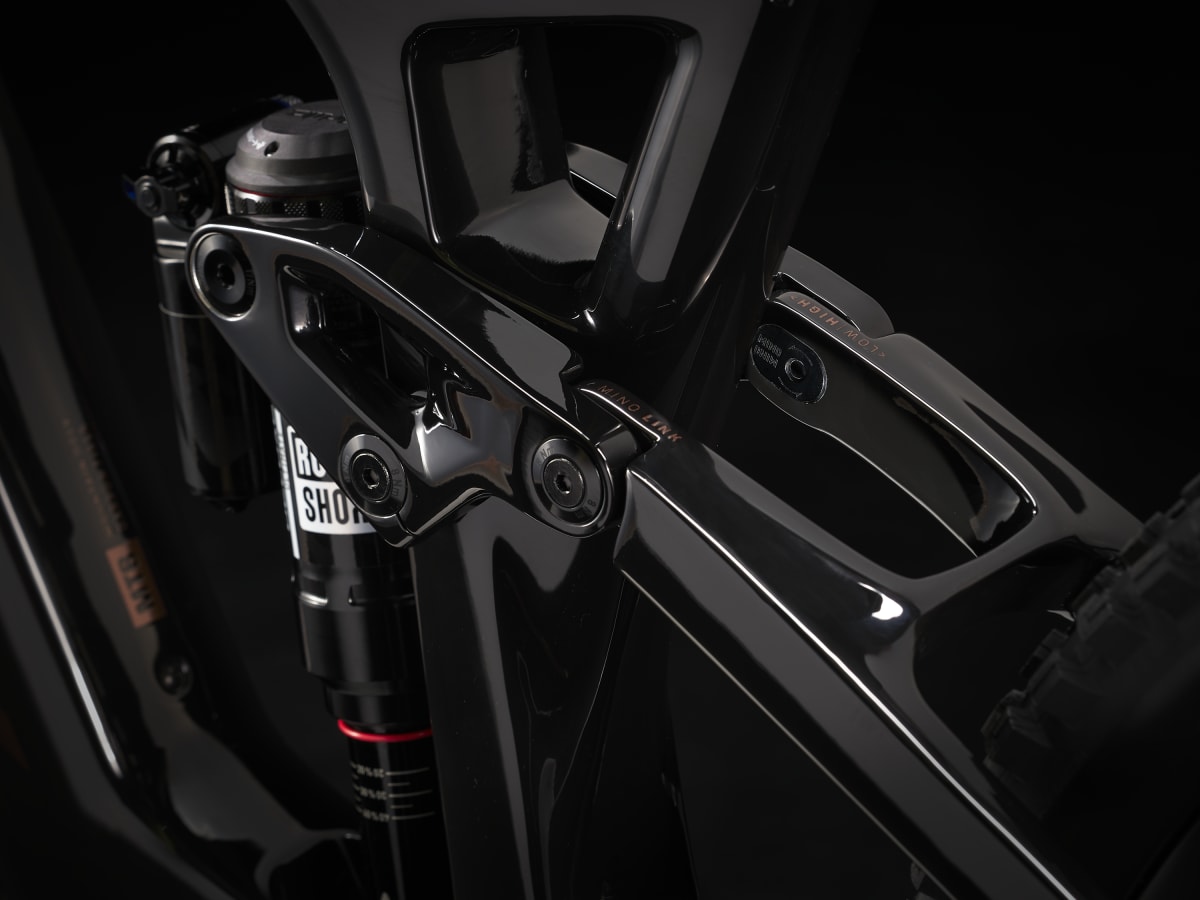

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel

Gears

Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

Saddle

Bontrager Arvada Pro, carbon rails, 138 mm width

Wheels

Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

Cassette

Shimano XTR M9101, 10-51, 12-speed

Crankset

E*thirteen E*spec Race carbon, 165 mm length

Seatpost

Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length

Shifters

Shimano XTR M9100, 12-speed

Handlebar

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length

Front brake

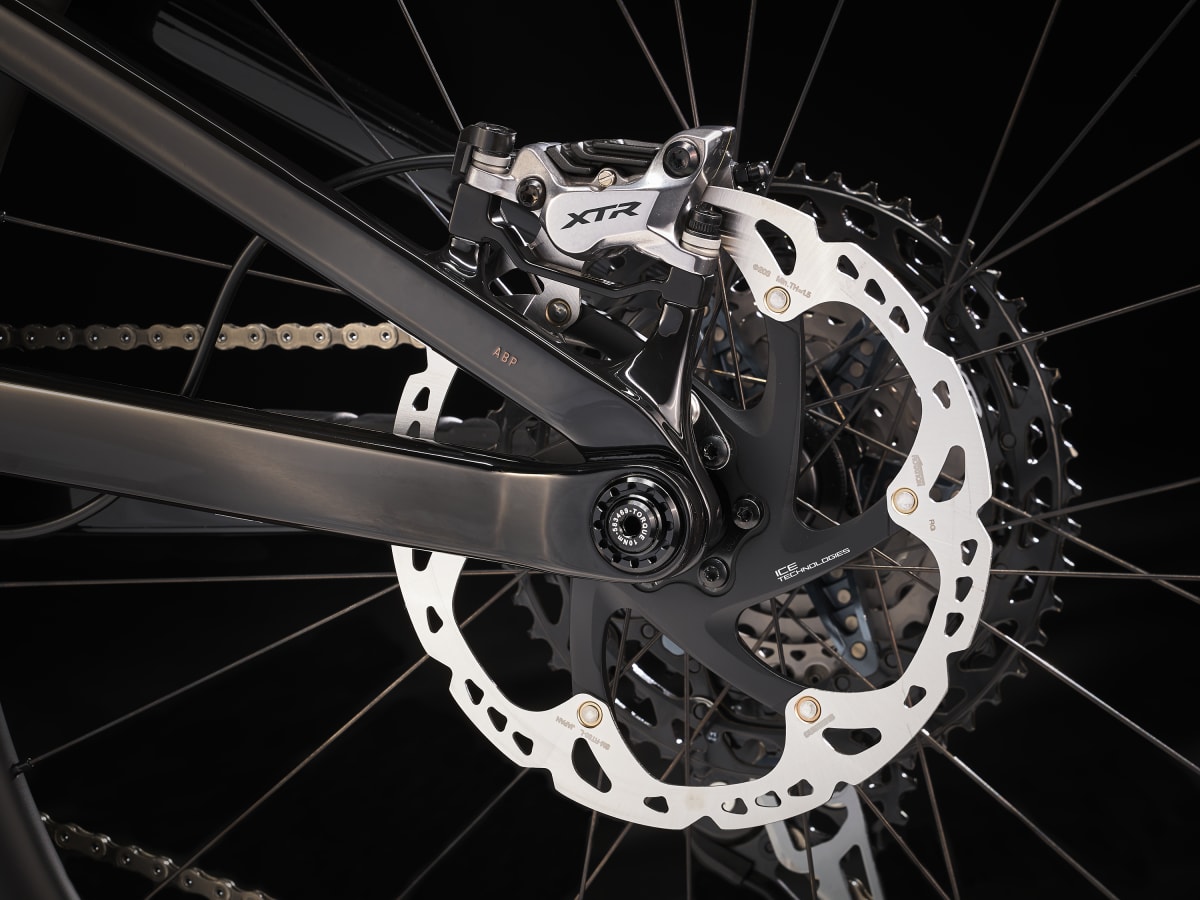

Shimano XTR M9120 4-piston hydraulic disc // Shimano XTR M9120 4-piston hydraulic disc
Shimano RT86, 6-bolt, 180 mm // Shimano RT86, 6-bolt, 203 mm
Max brake rotor size

Derailleur rear

Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

Bartape or grips

Bontrager XR Trail Elite, nylon lock-on

Primary rear brake

Shimano XTR M9120 4-piston hydraulic disc // Shimano XTR M9120 4-piston hydraulic disc
Shimano RT86, 6-bolt, 180 mm // Shimano RT86, 6-bolt, 203 mm
Max brake rotor size
