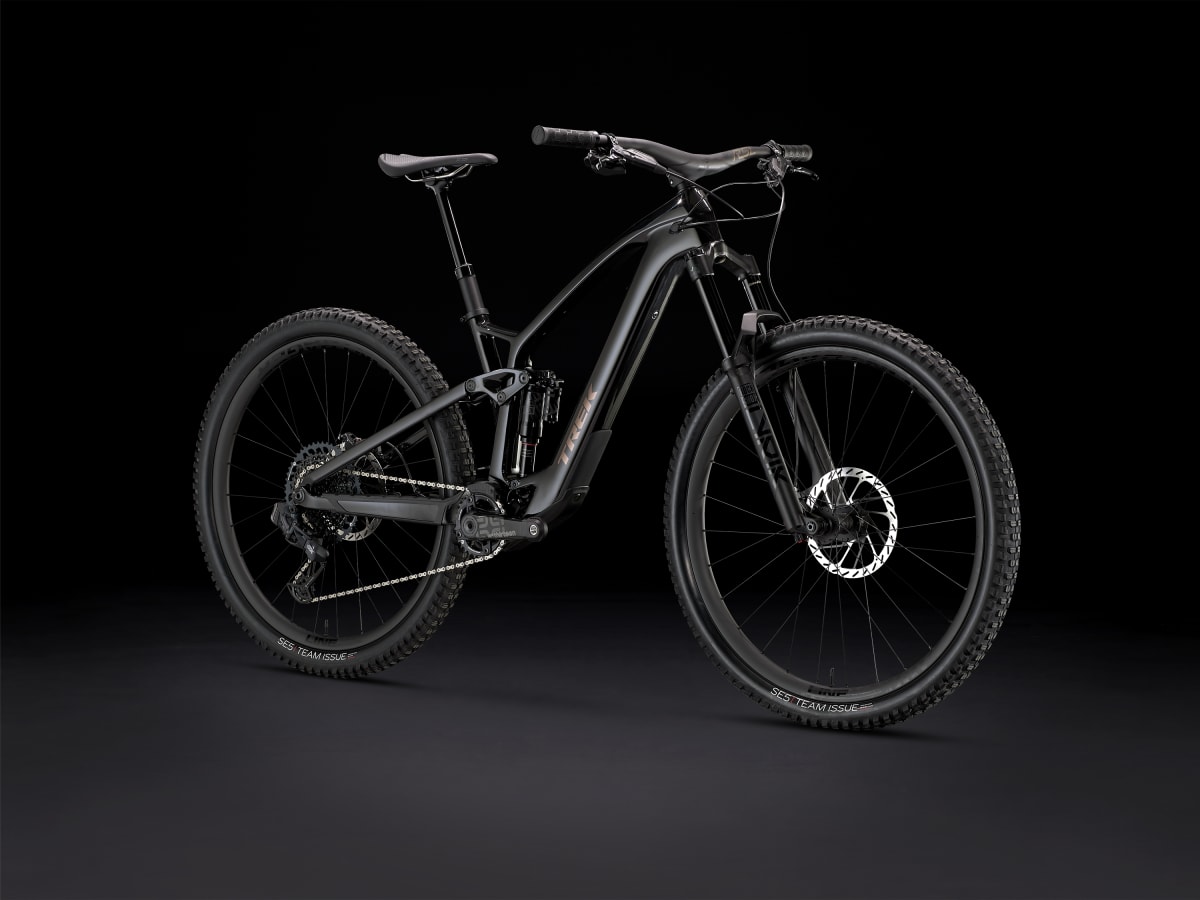

Trek Fuel EXe 9.8 GX AXS

£9,900.00

SKU: 36366 Category:

Description

The Fuel EXe 9.8 GX AXS takes an evolved approach to e-mountain biking with a streamlined new motor that packs in space-age technology in a tiny-but-mighty package. It’s built on a carbon fibre chassis that’s light, stiff and nimble for a lively and playful trail feel. And to keep a good thing going, it’s topped off with carbon wheels, wireless shifting technology of SRAM GX AXS and silky-smooth suspension of a RockShox Lyrik Select+ fork and SuperDeluxe Select+ rear suspension.

You want a lively trail bike that feels like a traditional mountain bike in quick, techy terrain, but gives you a little boost in pedal power on the way back up. You want space-age technology everywhere from motor to drivetrain, and upgraded suspension that keeps you floating on the trail. You don’t want to lose out on the natural experience of mountain biking, and want a refined motor that quietly assists while you ride.

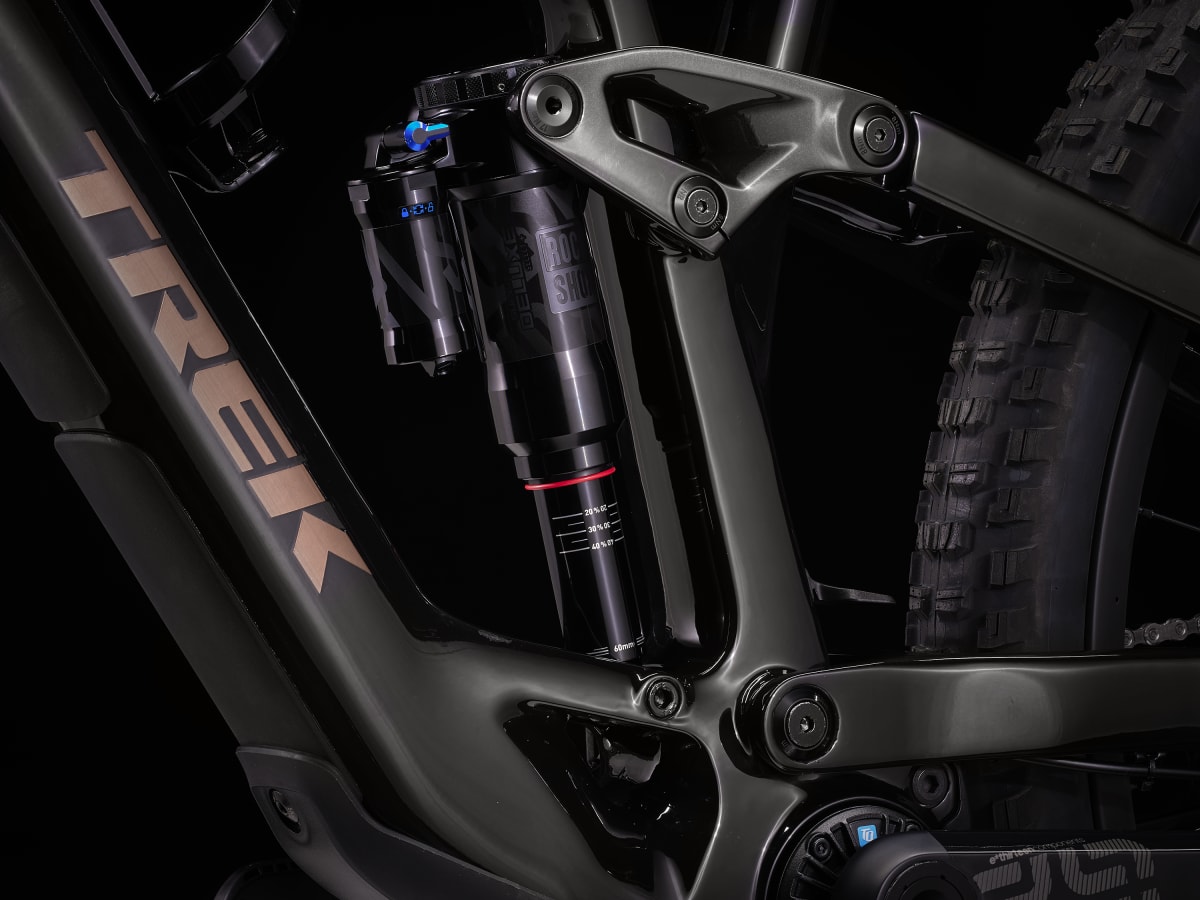

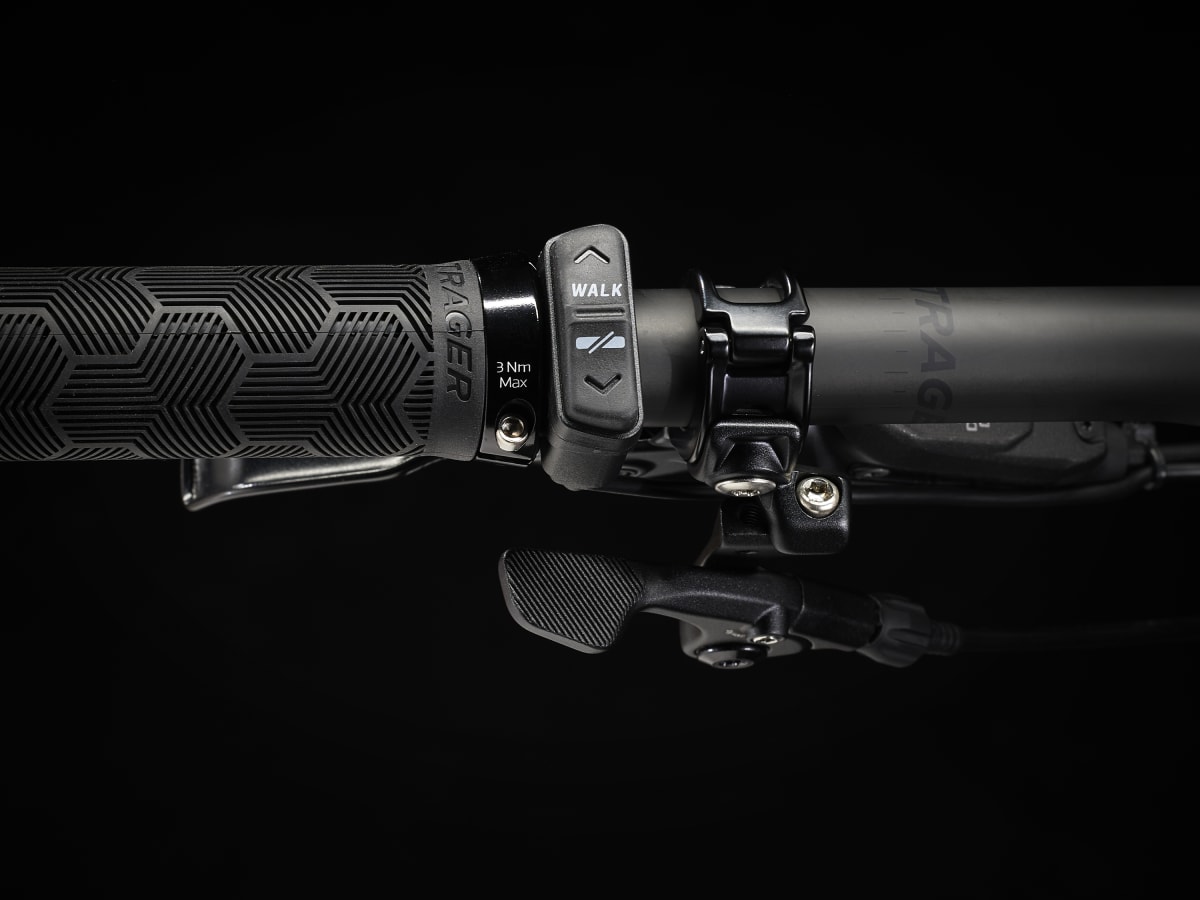

An OCLV Mountain Carbon frame equipped with a fully encased 360 Wh battery and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. Plus, a 150 mm RockShox Lyrik Select+ fork with DebonAir spring and Charger 2.1 RC damper, and 140 mm RockShox Super Deluxe Select+ rear suspension. The cherry on top? A wireless SRAM GX AXS drivetrain that keeps your cockpit minimalist and clean.

The Fuel EXe 9.8 is a refined trail bike with just the right amount of power for scorching climbs before turning around to rally though technical and flow trails alike. Its equipped with future-minded technology, like the space-approved TQ transmission and wireless SRAM GX AXS shifting that keeps your cockpit minimalist. Finally, carbon wheels and an upgraded RockShox suspension package keeps you floating on the trail e
– You get a bike that rides like your favourite trail bike on descents and gives you adaptive assist on the climbs that doesn’t make you feel like a cheat
– Its tiny-but-mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, plus it ramps up power with you for a natural ride feel

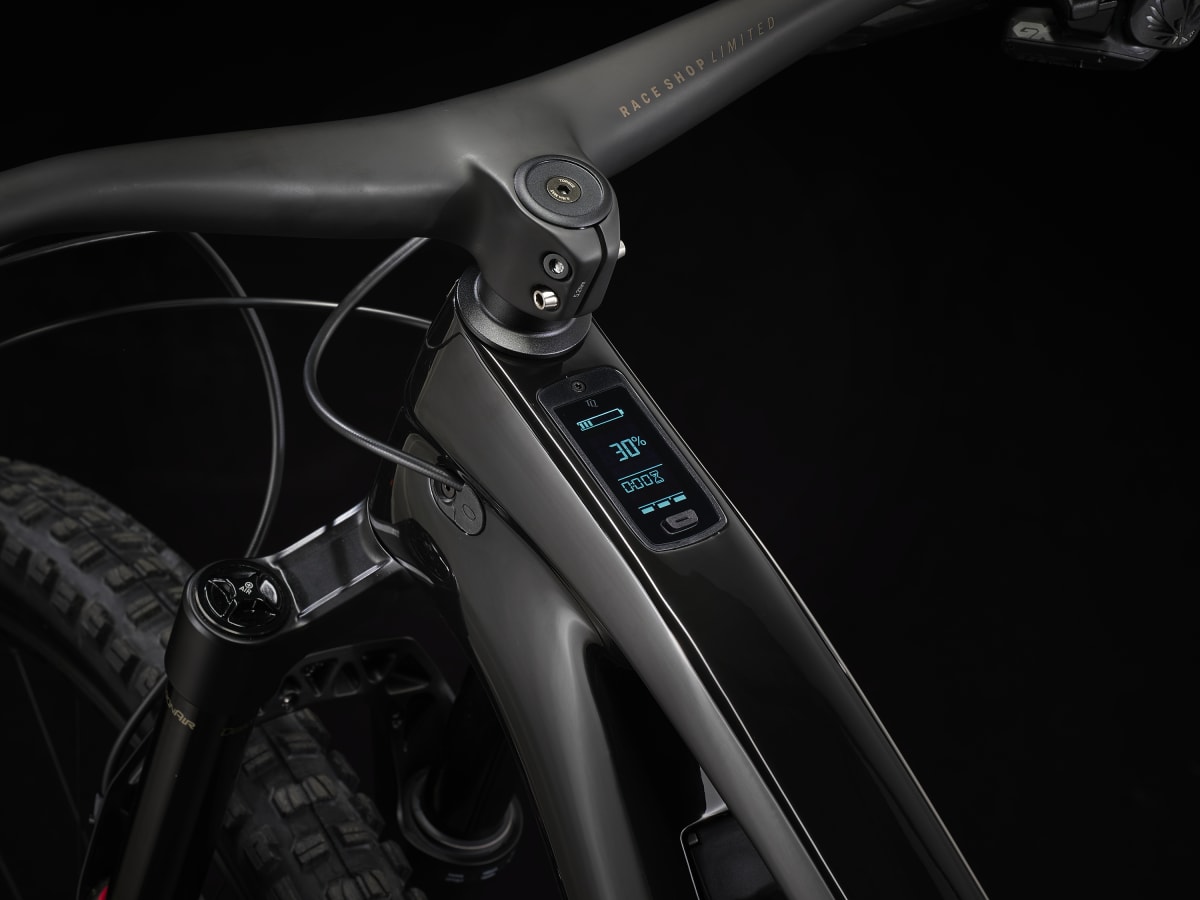

– The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional mountain bike
– It keeps your ride silky smooth even when the trail gets rowdy thanks to the upgraded RockShox suspension package that offers 150 mm of front and 140 mm of rear travel
– You’ll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike

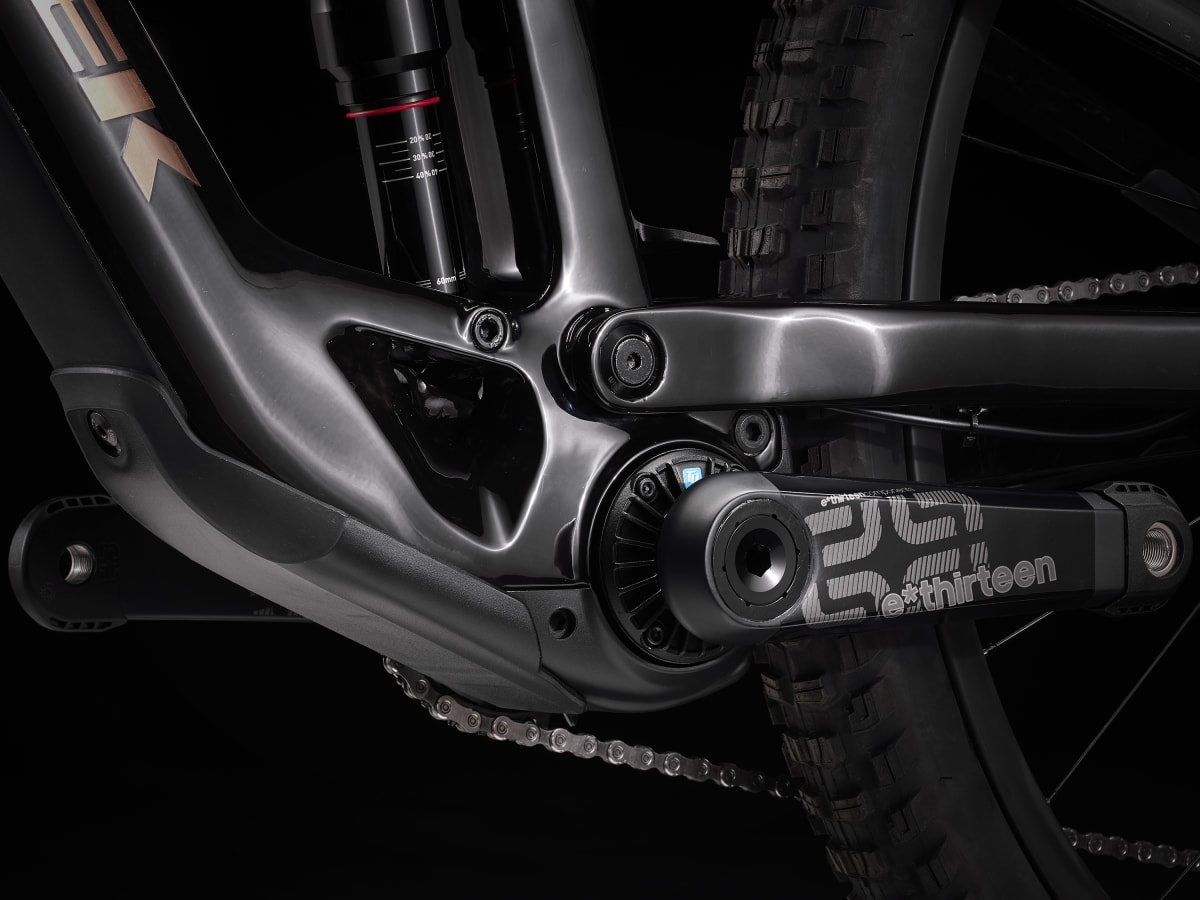

TQ-HPR50 – small, quiet, mighty
The TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet and unbelievably natural-feeling.

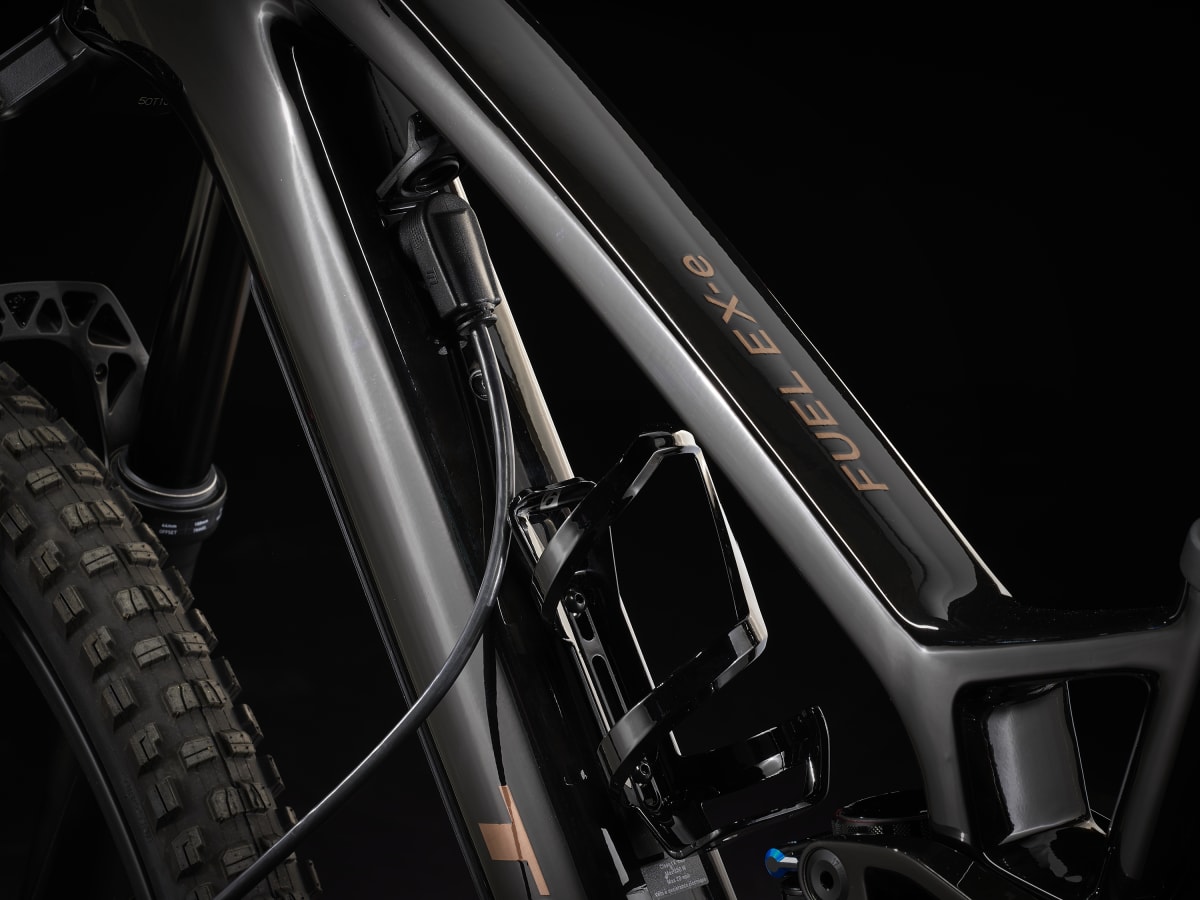

Range Extender
Give yourself 40% more range with an optional 160 Wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.

Connect, customise, calculate
The Trek Central app seamlessly connects with your bike for custom motor tuning, activity tracking and more ways to analyse and personalise your ride. You even get navigation features and real-time range calculations.

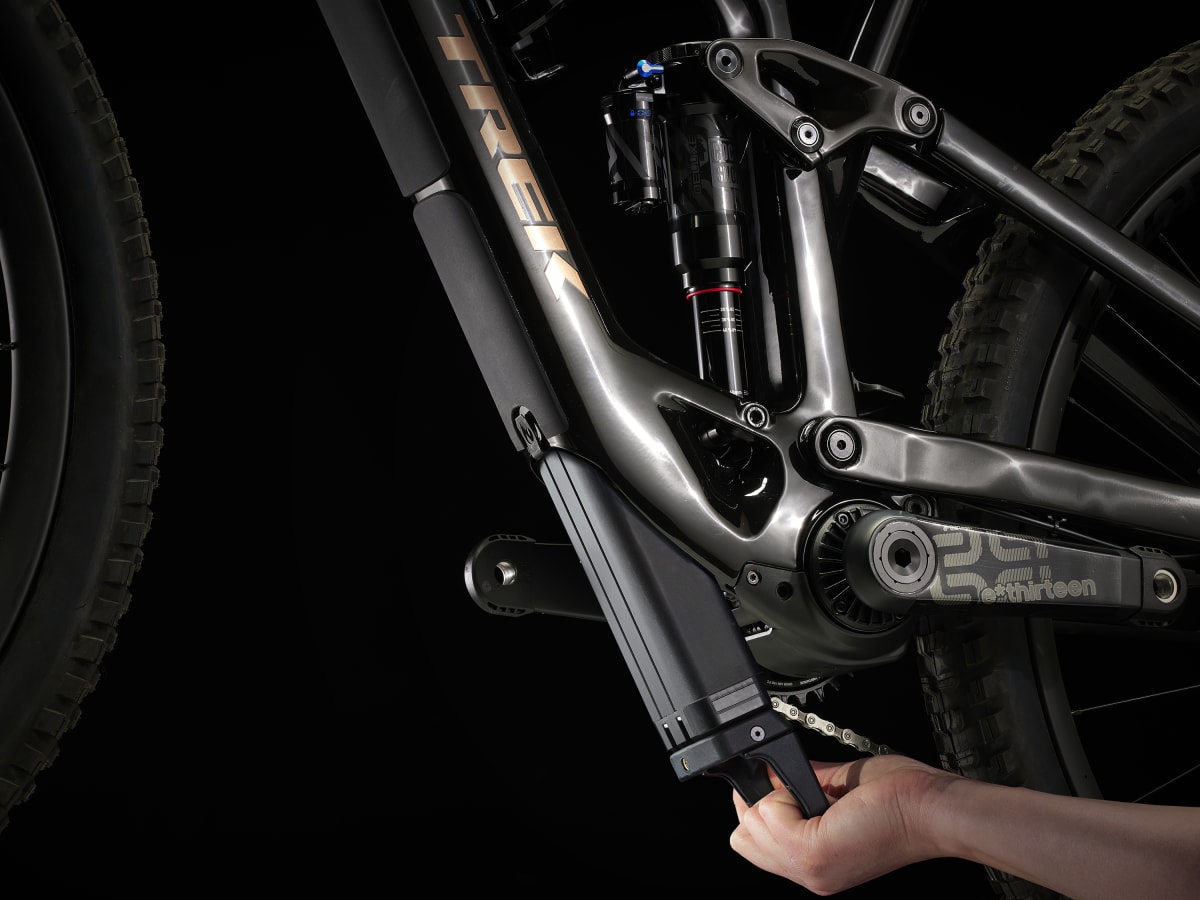

Removable battery
The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.

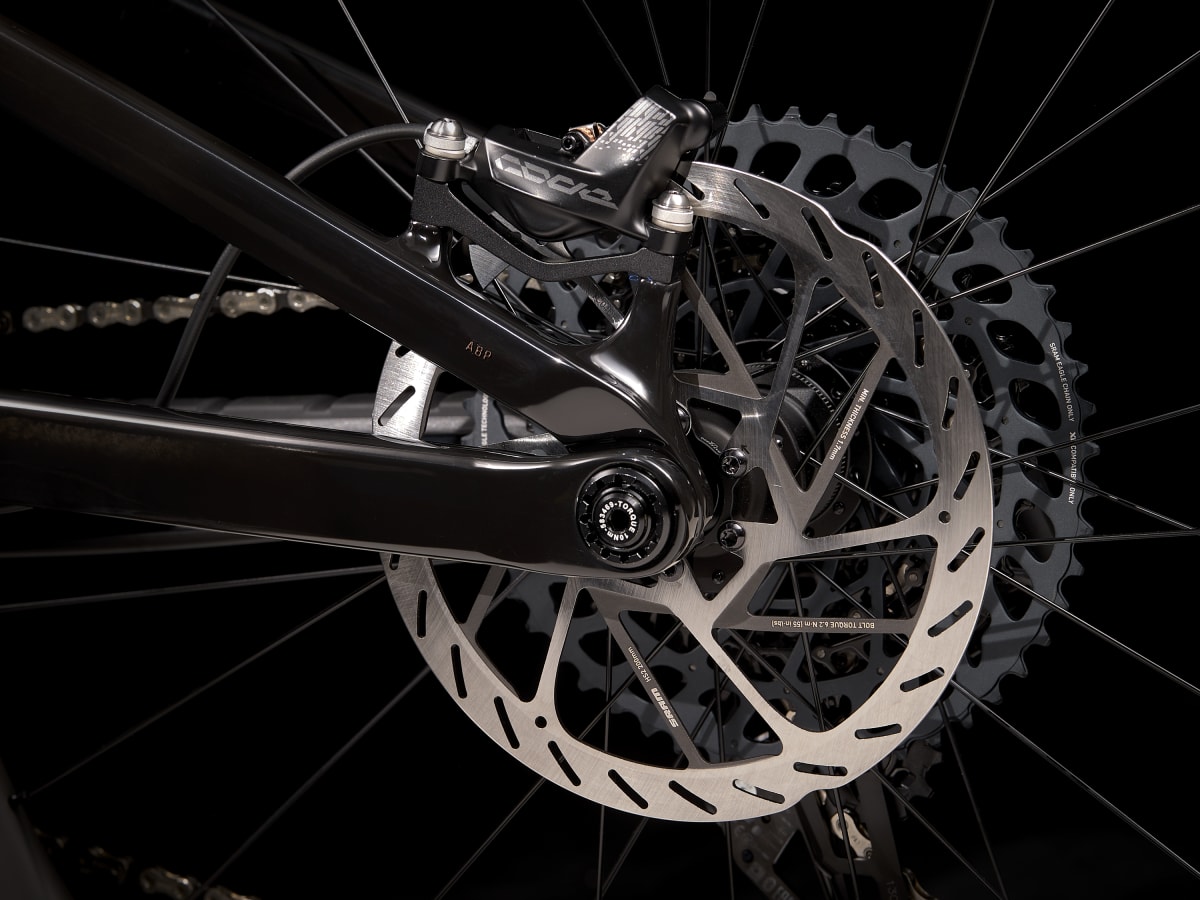

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Additional information

Weight

Size S – 18.17kg

Fork

RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

Chain

SRAM GX Eagle, 12-speed

Frame

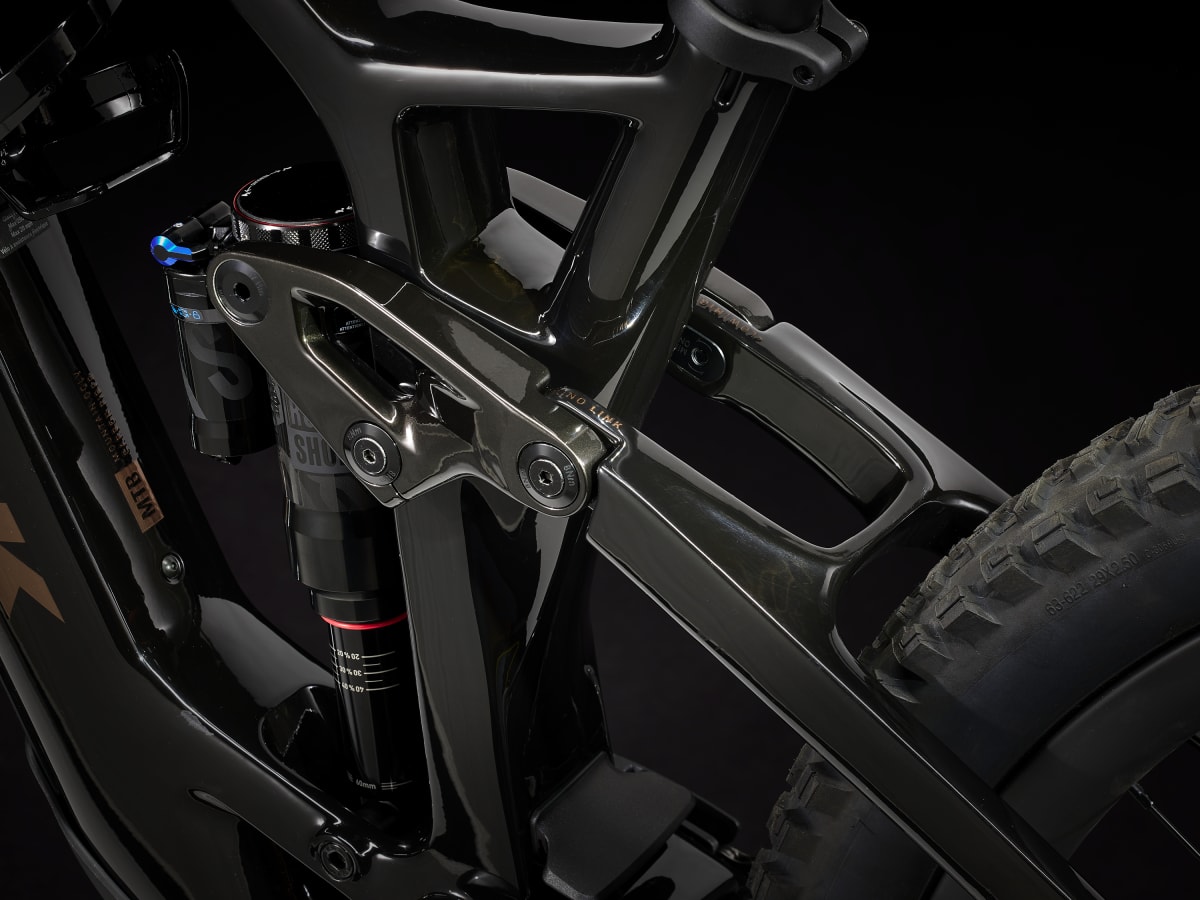

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel

Gears

SRAM GX Eagle AXS

Saddle

Bontrager Arvada, austenite rails, 138 mm width

Wheels

Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
Bontrager Line Elite 30, Tubeless-Ready
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle

Cassette

SRAM Eagle XG-1275, 10-52, 12-speed

Crankset

E*thirteen E*spec Plus, 165 mm length

Seatpost

Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length

Shifters

SRAM GX Eagle AXS, 12 speed

Handlebar

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length

Front brake

SRAM 6-bolt, 200 mm
Max brake rotor size

Derailleur rear

SRAM GX Eagle AXS

Bartape or grips

Bontrager XR Trail Elite, nylon lock-on

Primary rear brake

SRAM 6-bolt, 200 mm
Max brake rotor size
