Trek Émonda Alr 5


SKU: 24166 Category:


Émonda ALR 5 Disc is a light and responsive road bike with an advanced alloy frame that gives it the sleek looks and handling of a far more expensive carbon bike. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

You want all the advantages of a bike built to be the lightest in its class, with a wallet-friendly alloy frame that has the sleek looks and handling you’d expect only from a carbon frame. You also want the confident stopping power that disc brakes provide.

A lightweight 300 Series Alpha Aluminium with shaped tubes and Invisible Weld Technology, an Émonda SL carbon fork that absorbs vibration from the road, internal cable routing in both the frame and fork, a full 2×11 Shimano 105 drivetrain for dependable shifting, powerful flat-mount hydraulic disc brakes and tubeless-ready wheels.

The better performance of disc brakes, an advanced alloy frame that looks and performs like carbon, and a reliable Shimano 105 drivetrain give this race-ready ride an incredible amount of versatility.
– Carbon looks and handling, alloy price point: Invisible Weld Technology and shaped tubes for sleek looks, light weight and incredible handling
– It climbs fast, corners on rails, and descends with confidence
– Disc brakes offer better braking performance and extra clearance for wider, more stable tyres
– Proven H2 geometry gives you a ride quality that stands up in every way to far more expensive carbon bikes
– Internal cable routing extends the life of your cables and adds to the bike’s sleek look

Additional information


Size 56 – 9.04kg

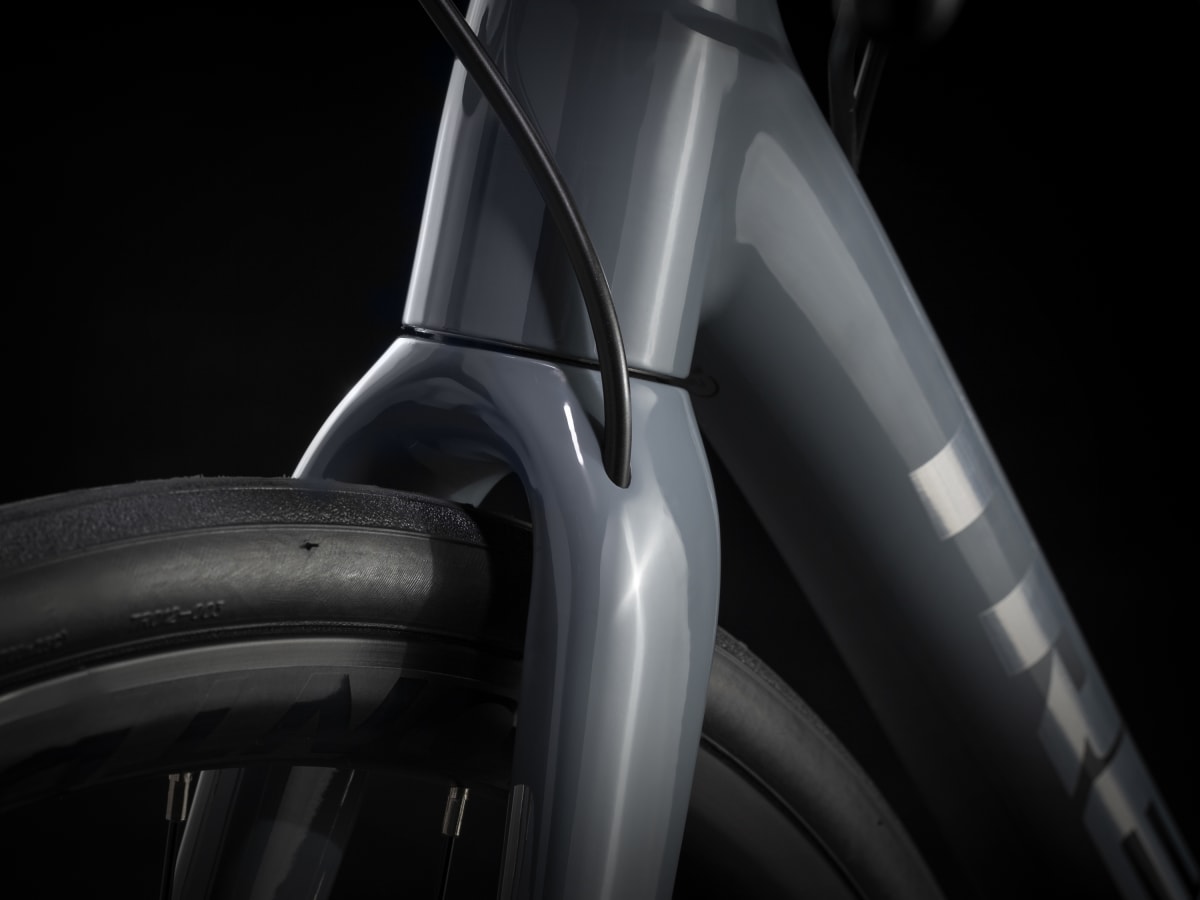

Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12×100 mm thru axle


Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length


Shimano 105 HG601, 11-speed

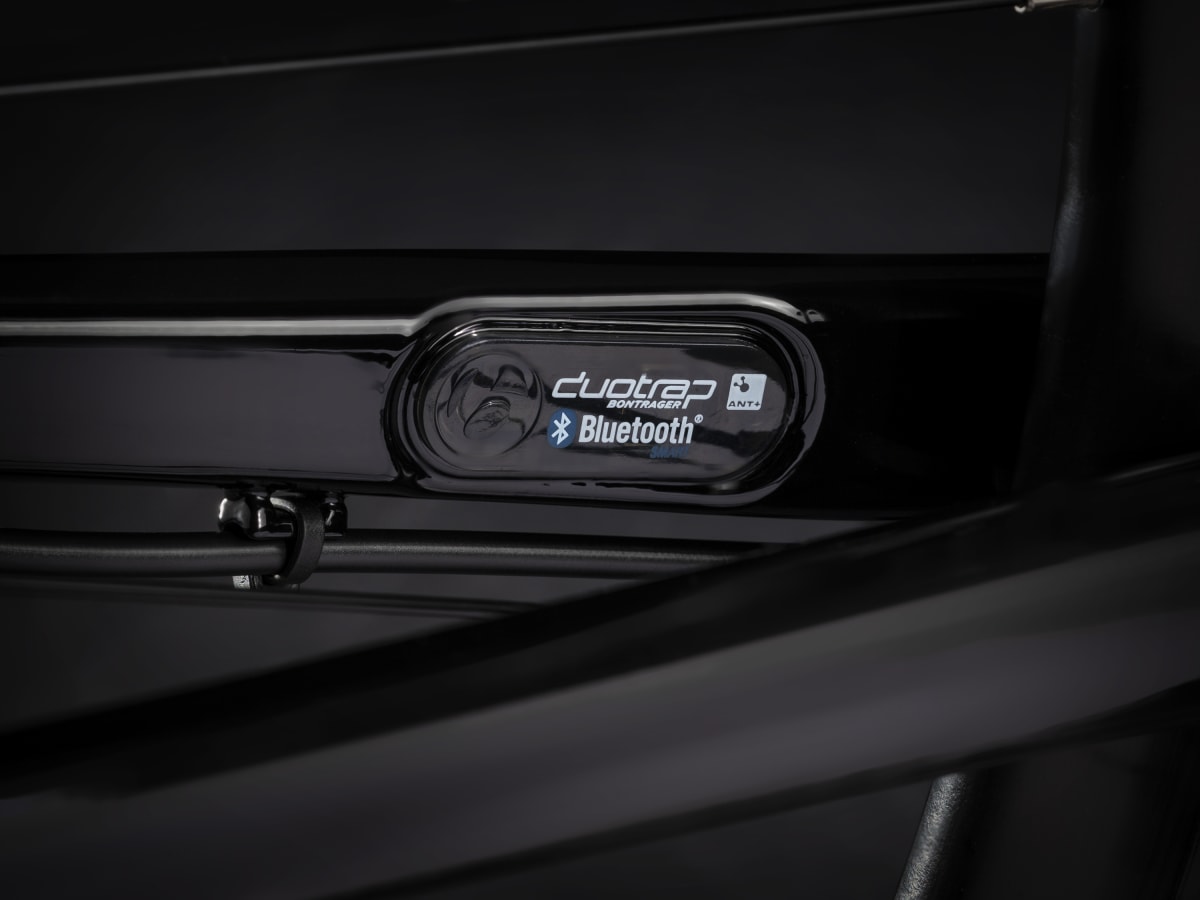

Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle


Shimano 105 R7000, short cage, 30T max cog


Not included


Bontrager Verse Comp, steel rails, 145 mm width


Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle

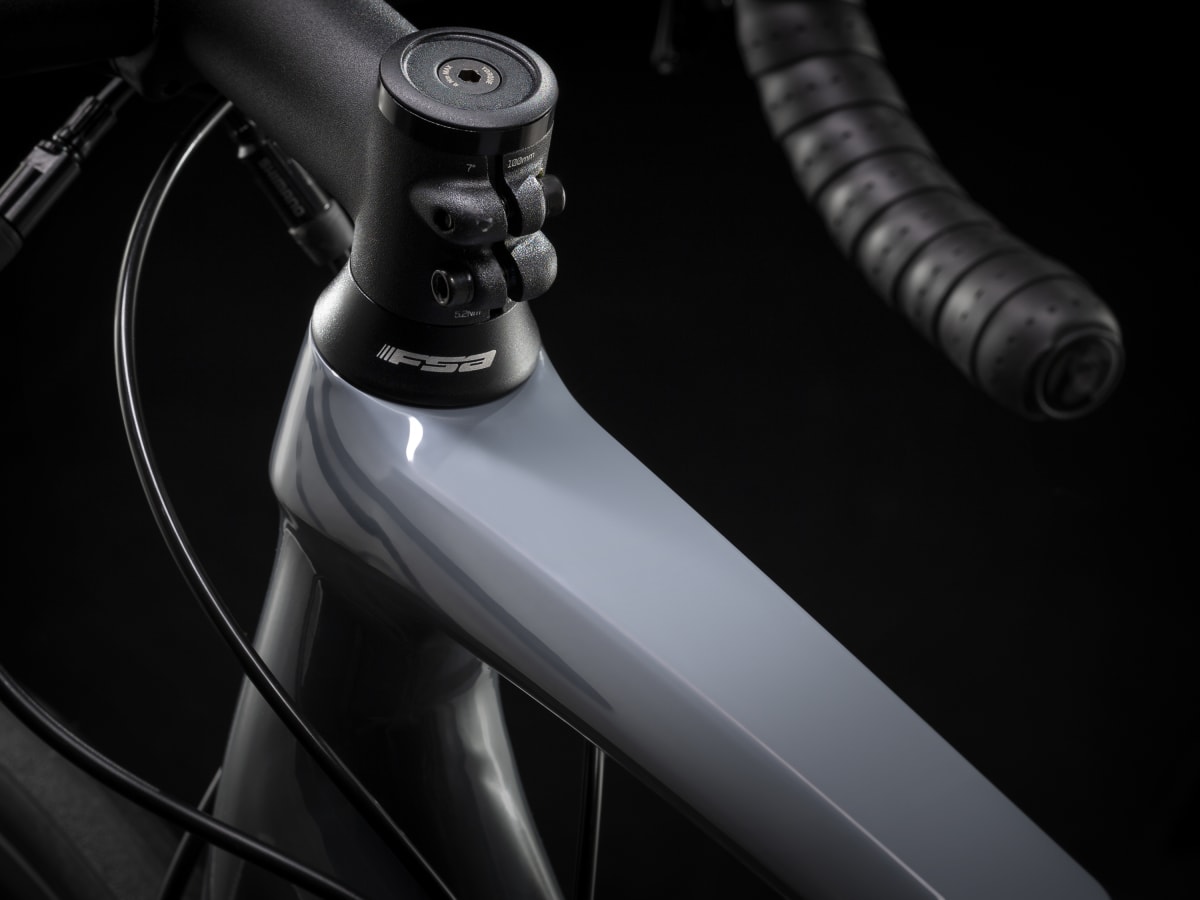

FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

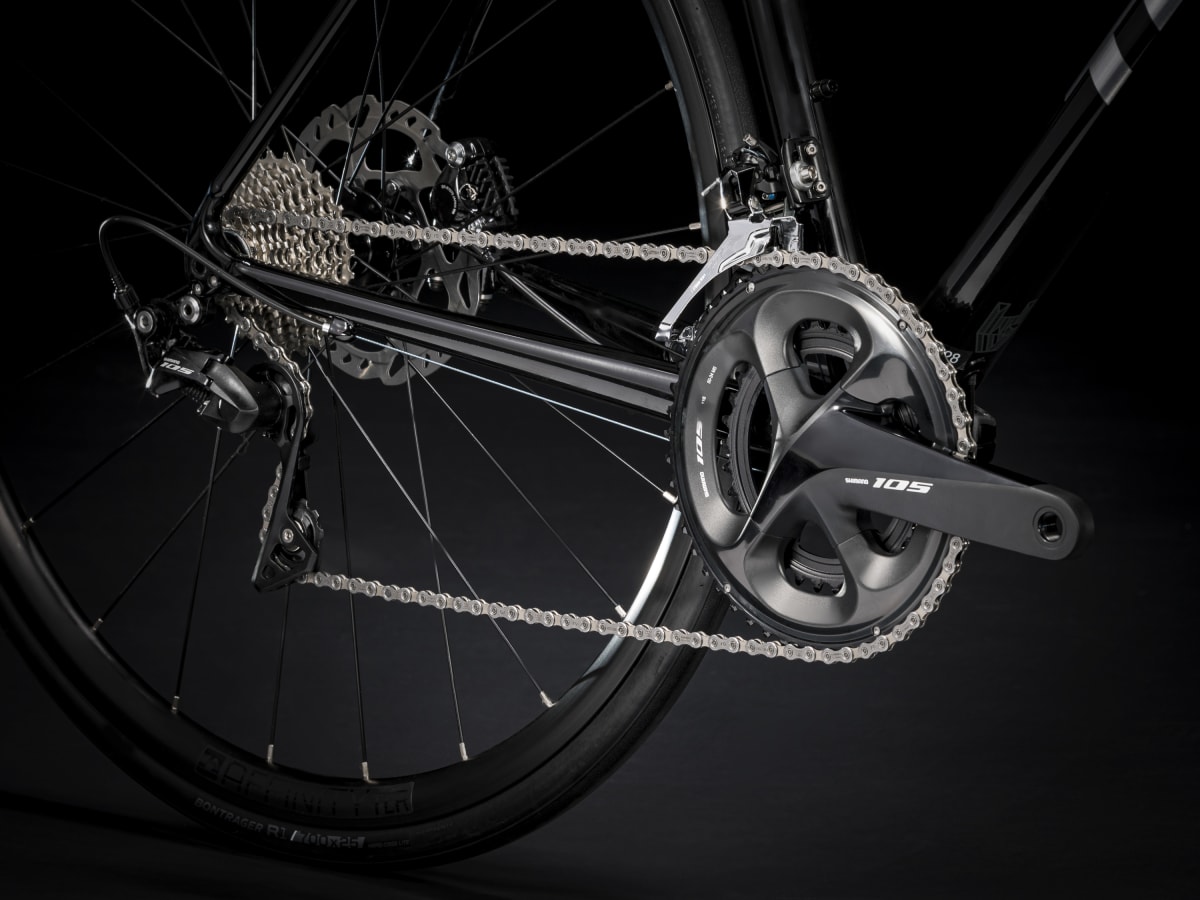

Shimano 105 R7000, 11-30, 11 speed


Shimano 105 R7000, 50/34 (compact), 172.5 mm length
Shimano BB71, 86.5 mm, PressFit


Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length


Shimano 105 R7020, 11-speed

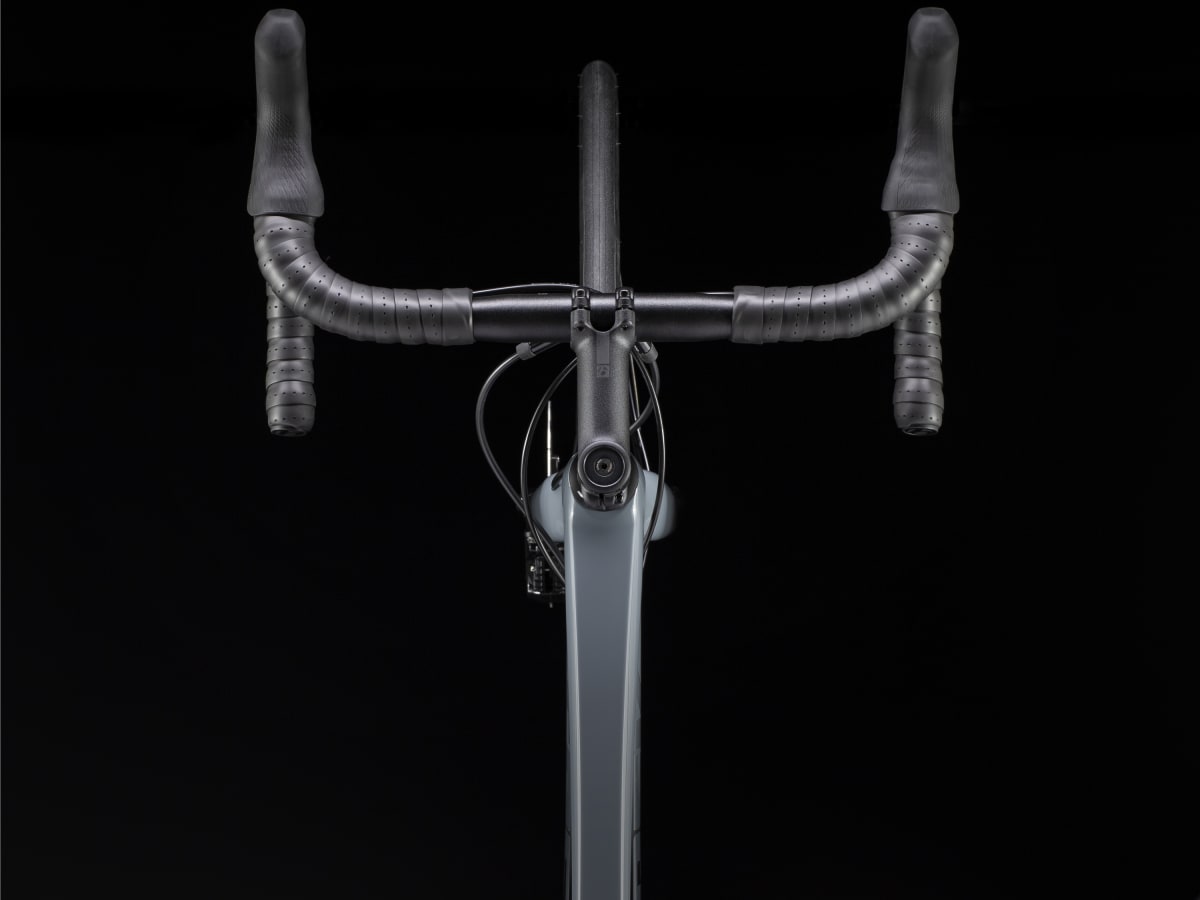

Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width

Front brake

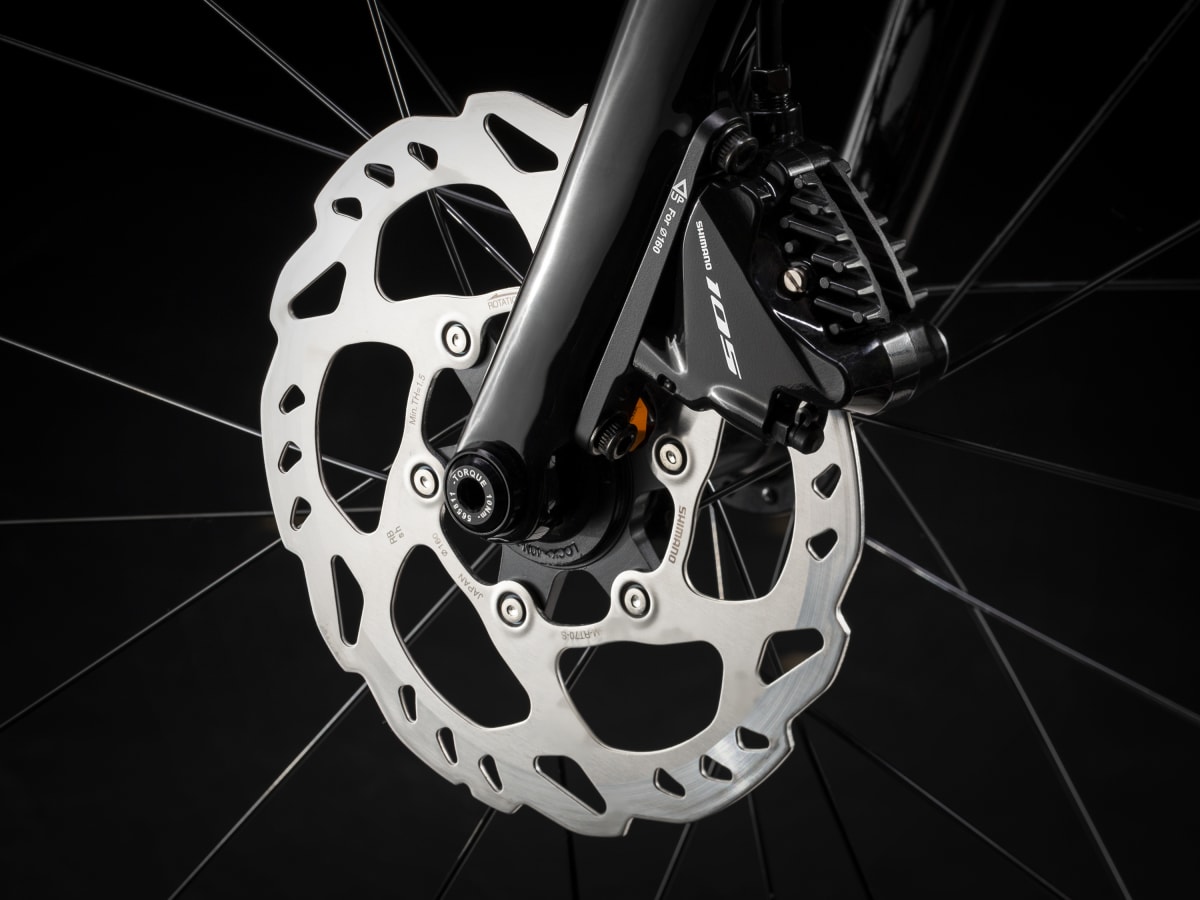

Shimano 105 hydraulic disc // Shimano 105 hydraulic disc
Shimano RT70, CentreLock, 160 mm

Derailleur rear

Shimano 105 R7000, short cage, 30T max cog

Bartape or grips

Bontrager tape

Derailleur front

Shimano 105 R7000, braze-on

Primary rear brake

Shimano 105 hydraulic disc // Shimano 105 hydraulic disc
Shimano RT70, CentreLock, 160 mm
