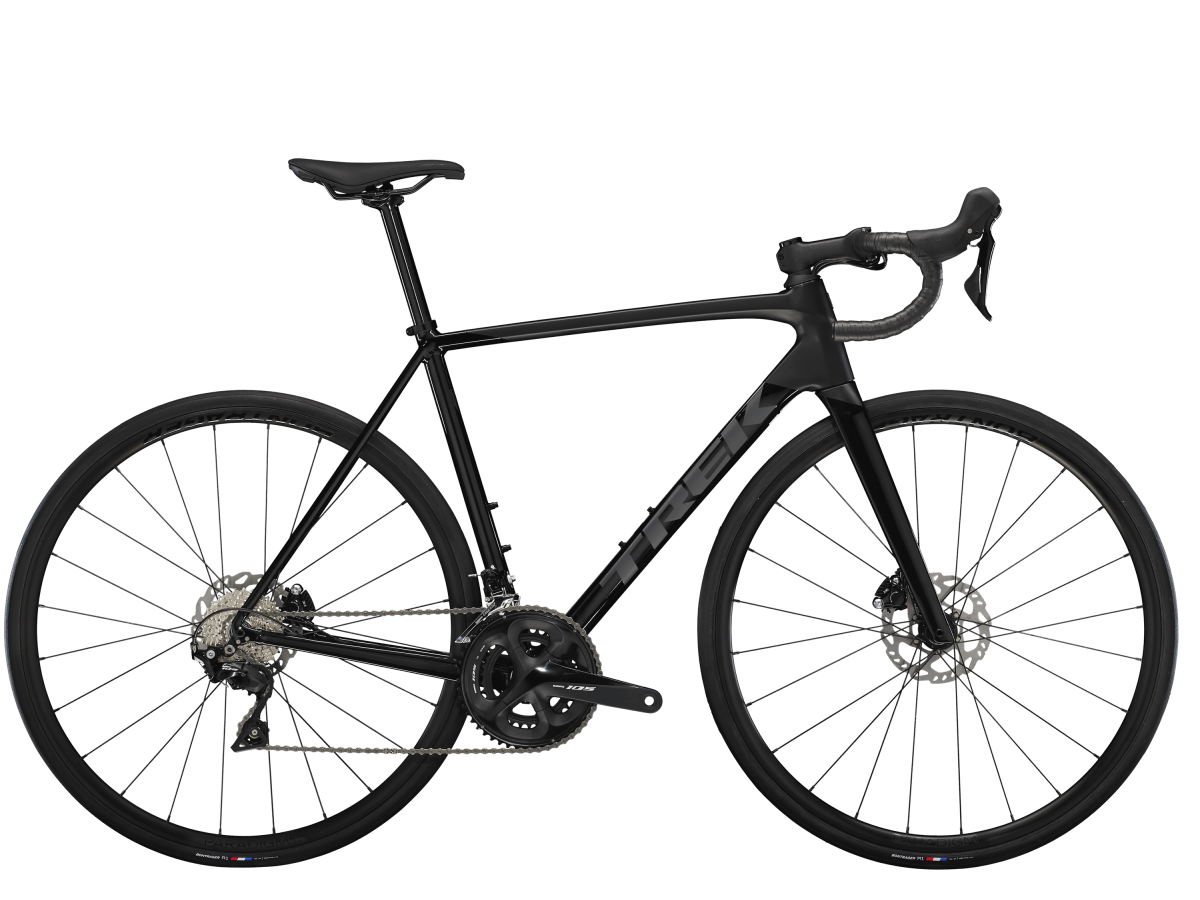

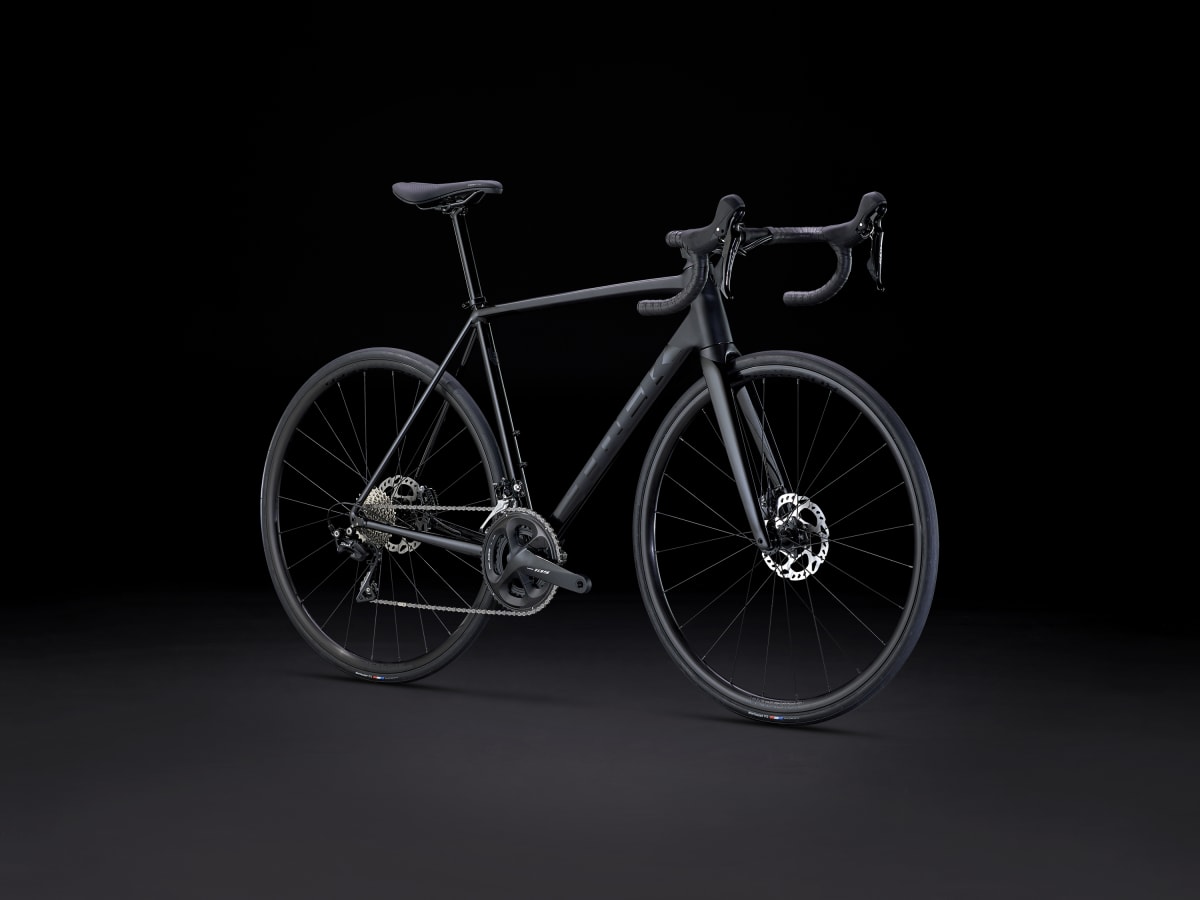

Trek Émonda ALR 5

£1,850.00

SKU: 36100 Category:

Description

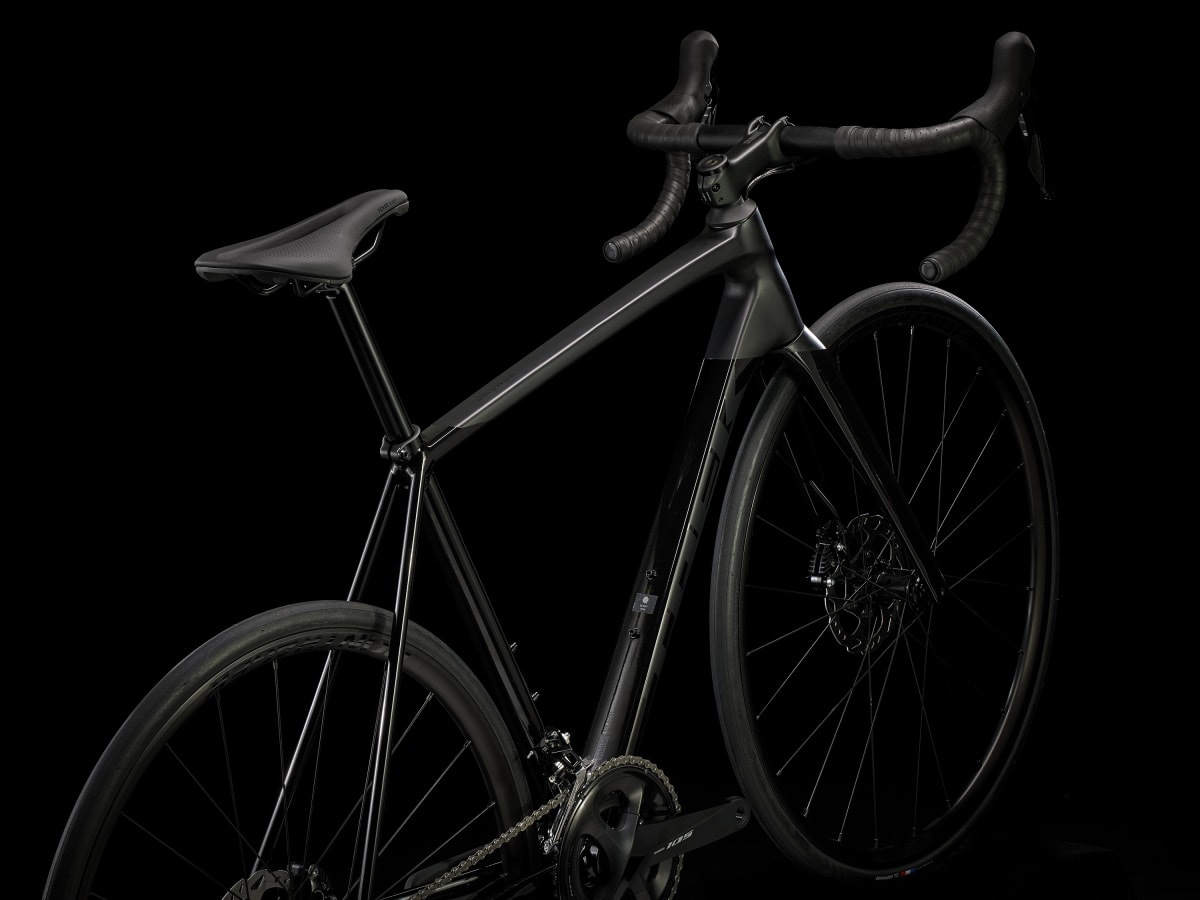

The Émonda ALR 5 is a race-ready road bike with a top-tier alloy frame that’s intensely light, fast and far more pocket-friendly than carbon bikes of its calibre. Its lightweight frame is built with top-tier road racing H1.5 geometry, with an integrated cockpit and Kammtail tube shapes for aerodynamic advantage. It’s equipped with a dependable 105 drivetrain and hydraulic disc brakes that stop on a penny whatever the weather, making it the perfect lightweight alloy bike for club rides and race days alike.

You want all the advantages of a bike built to be the lightest in its class, with a wallet-friendly alloy frame that has the sleek looks and handling you’d expect only from a carbon frame. You also want the confident stopping power that disc brakes provide.

An ultralight 300 Series Alpha Aluminium frame with aerodynamic Kammtail shaped tubes and Invisible Weld Technology, an Émonda SL carbon fork that absorbs vibration from the road, internal cable routing in both the frame and fork, a full 2×11 Shimano 105 drivetrain for dependable shifting, powerful flat-mount hydraulic disc brakes and tubeless-ready wheels.

The Émonda ALR 5 gives you the sleek looks of carbon without the sticker shock. Its advanced alloy frame is built to perform, and pairs with disc brakes and a reliable Shimano 105 drivetrain to give it the race-ready edge.
– The all-new frame is lighter and sleeker than previous ALR models and features aerodynamic Kammtail tubes with even cleaner cable routing
– It climbs fast, corners on rails, and descends with confidence
– Disc brakes offer better braking performance and extra clearance for wider, more comfortable tyres
– It shares the race geometry of our highest-end carbon Émonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
– Internal cable routing extends the life of your cables and adds to the bike’s sleek look

The ultimate featherweight
The Émonda ALR was built with our best and lightest 300 Series Alpha Aluminium and a gram-trimming design to keep things light, fast and fun.

Race-ready geometry
An optimised H1.5 race geometry, developed in collaboration with Trek-Segafredo, puts you in the right position for power.

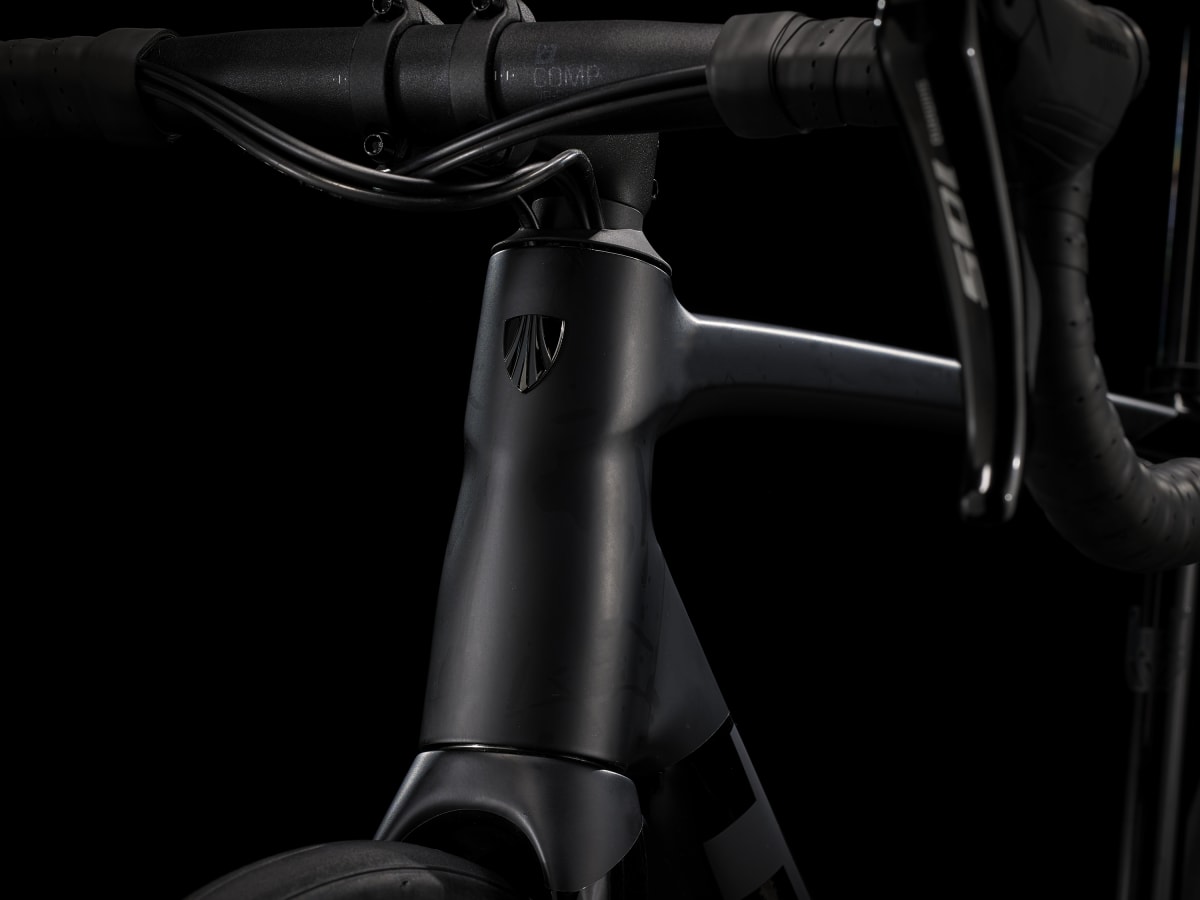

Refined integration

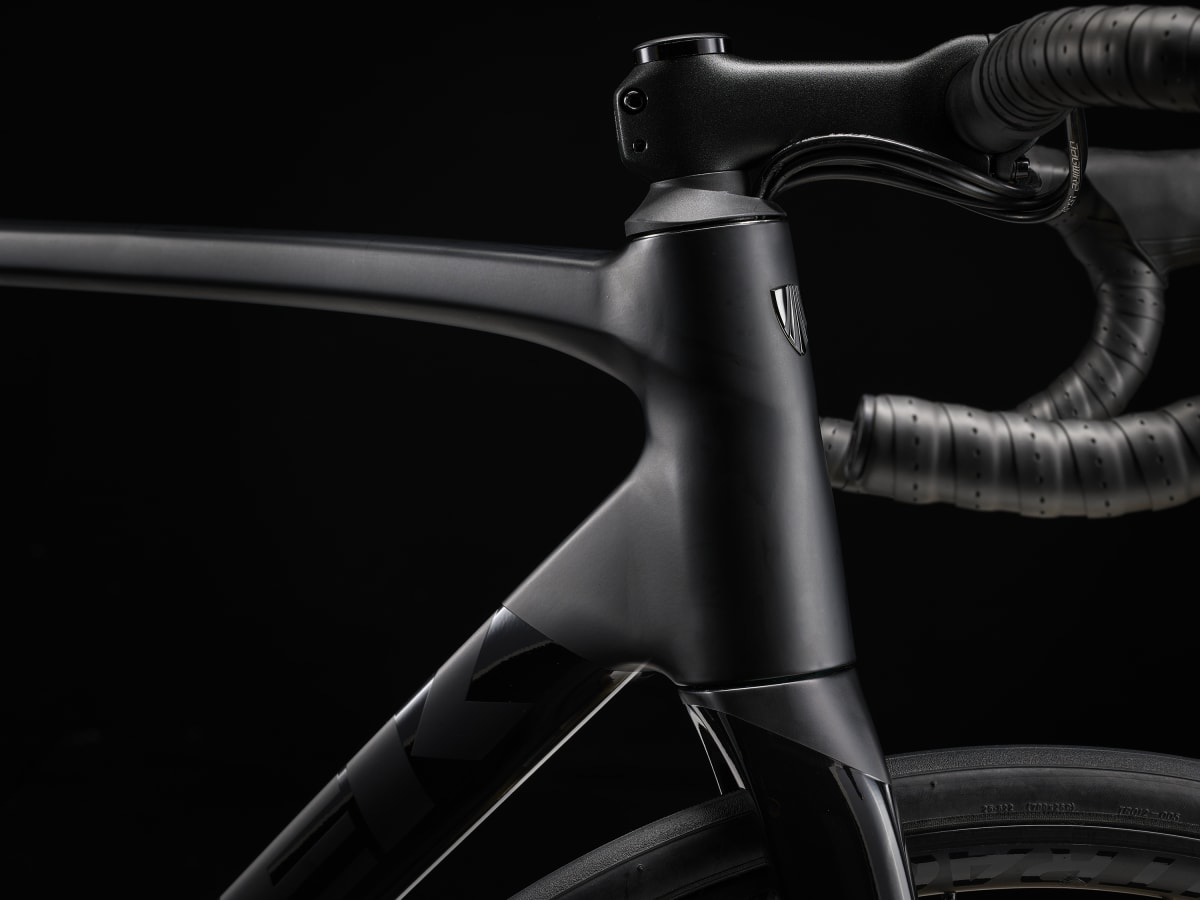

Integrated cable routing cleans up the cockpit and makes the Émonda ALR even faster in the wind.

Faster than ever
The Émonda ALR’s new Kammtail aero tube shaping keeps things light and fast wherever you ride – whether you’re powering up climbs or racing across flats.

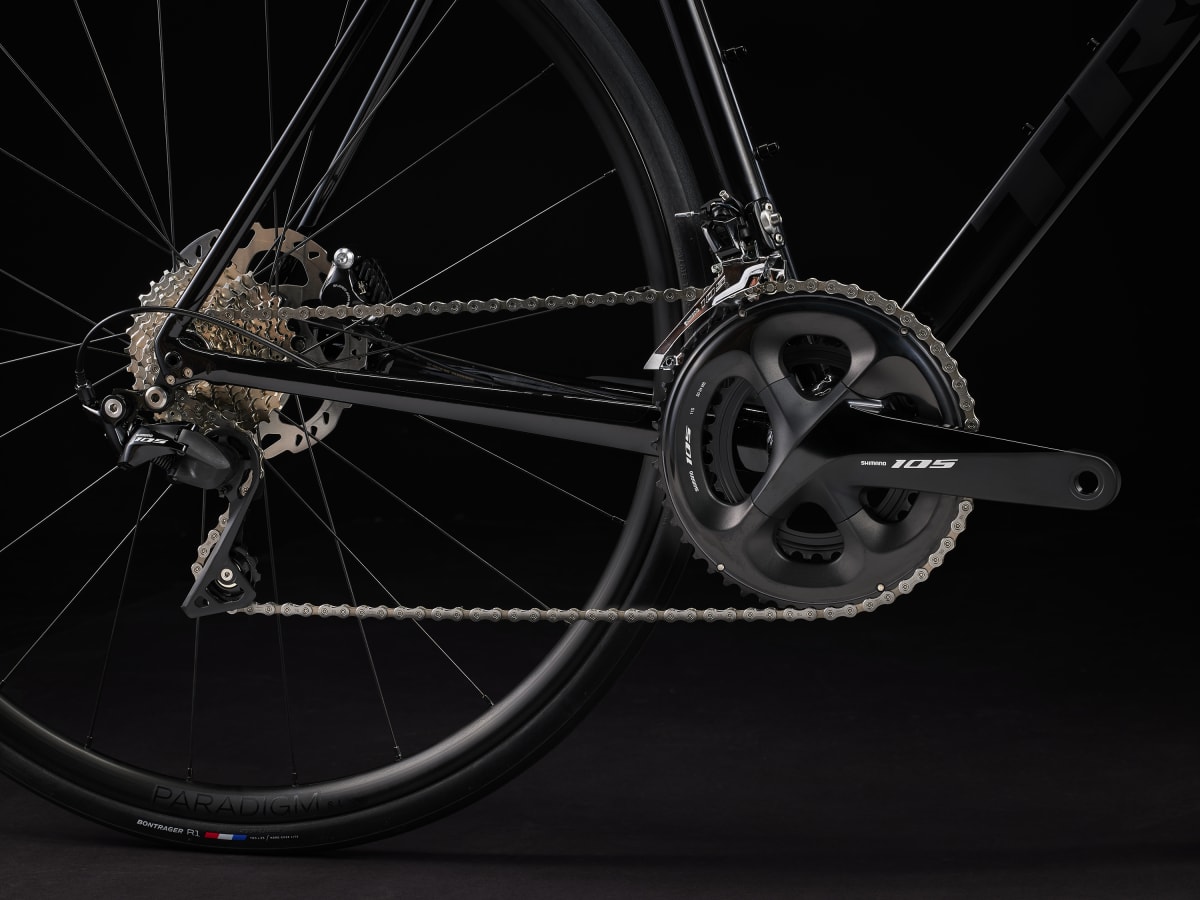

Shimano 105
With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget-friendly price. Whether you’re commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won’t hold you back as you grow in the sport.

Additional information

Weight

Size 47 – 9kg

Fork

Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12×100 mm thru axle

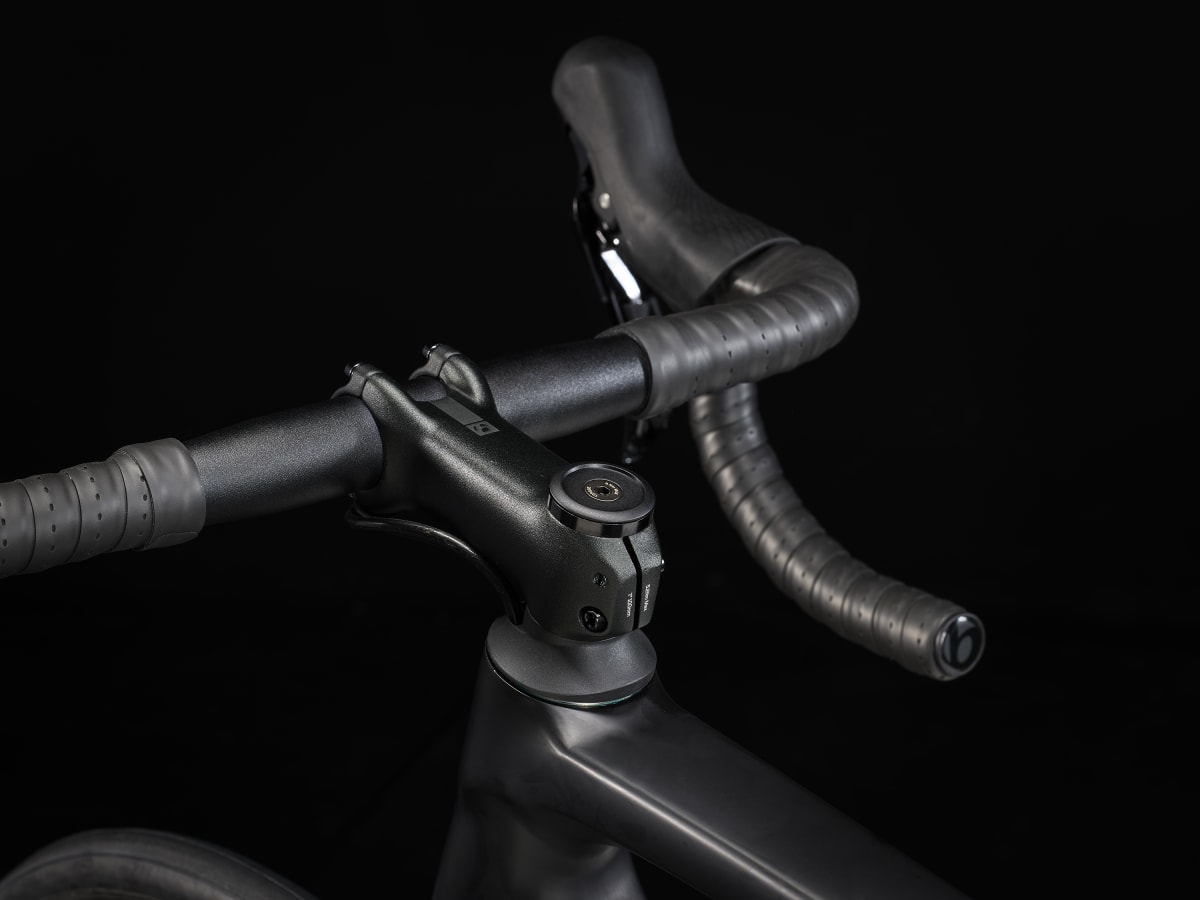

Stem

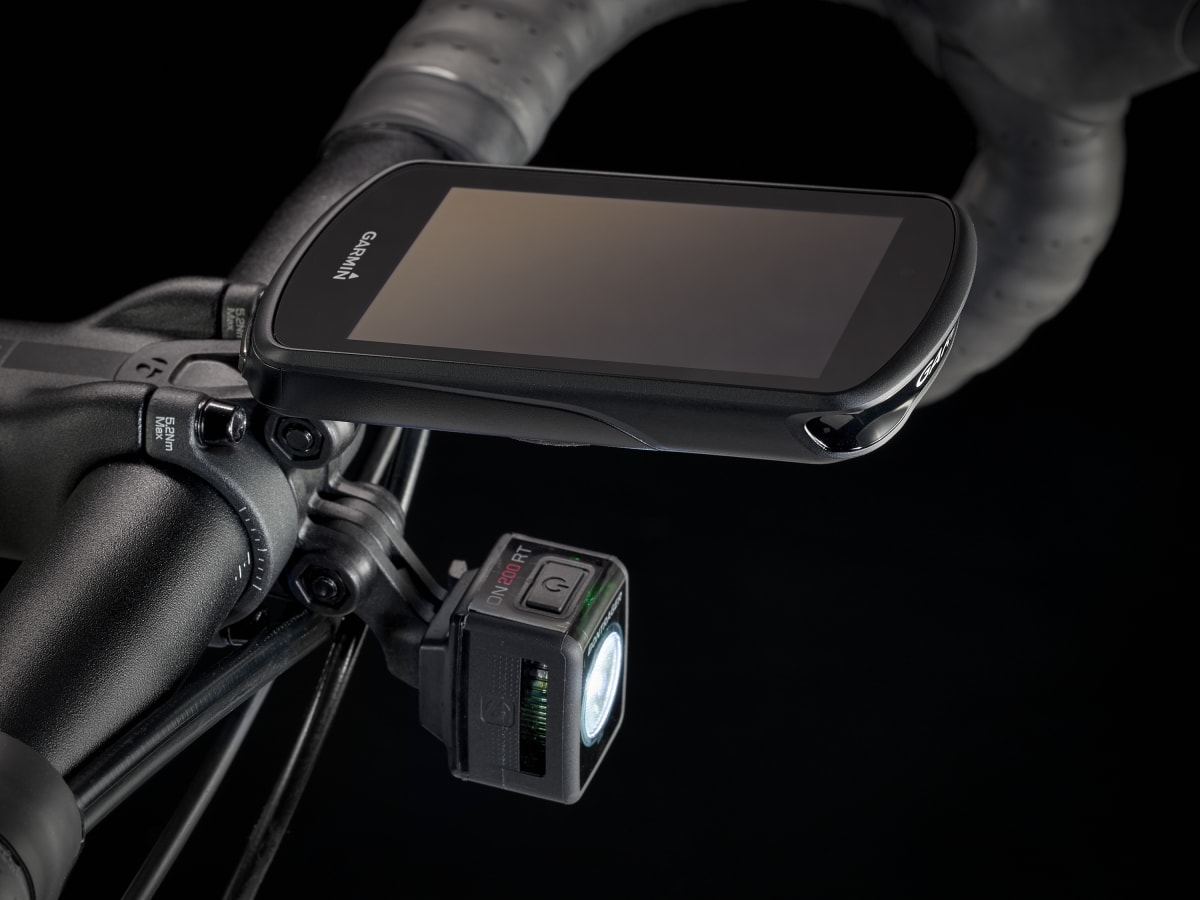

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length

Chain

Shimano 105 HG601, 11-speed

Frame

Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142×12 mm thru axle

Gears

Shimano 105 R7000, short cage, 30T max cog

Saddle

Bontrager Verse Comp, steel rails, 155 mm width

Wheels

Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle

Cassette

Shimano 105 R7000, 11-30, 11 speed

Crankset

Shimano 105 R7000, 50/34 (compact), 165 mm length
Praxis, T47 threaded, internal bearing

Seatpost

Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length

Shifters

Shimano 105 R7020, 11-speed

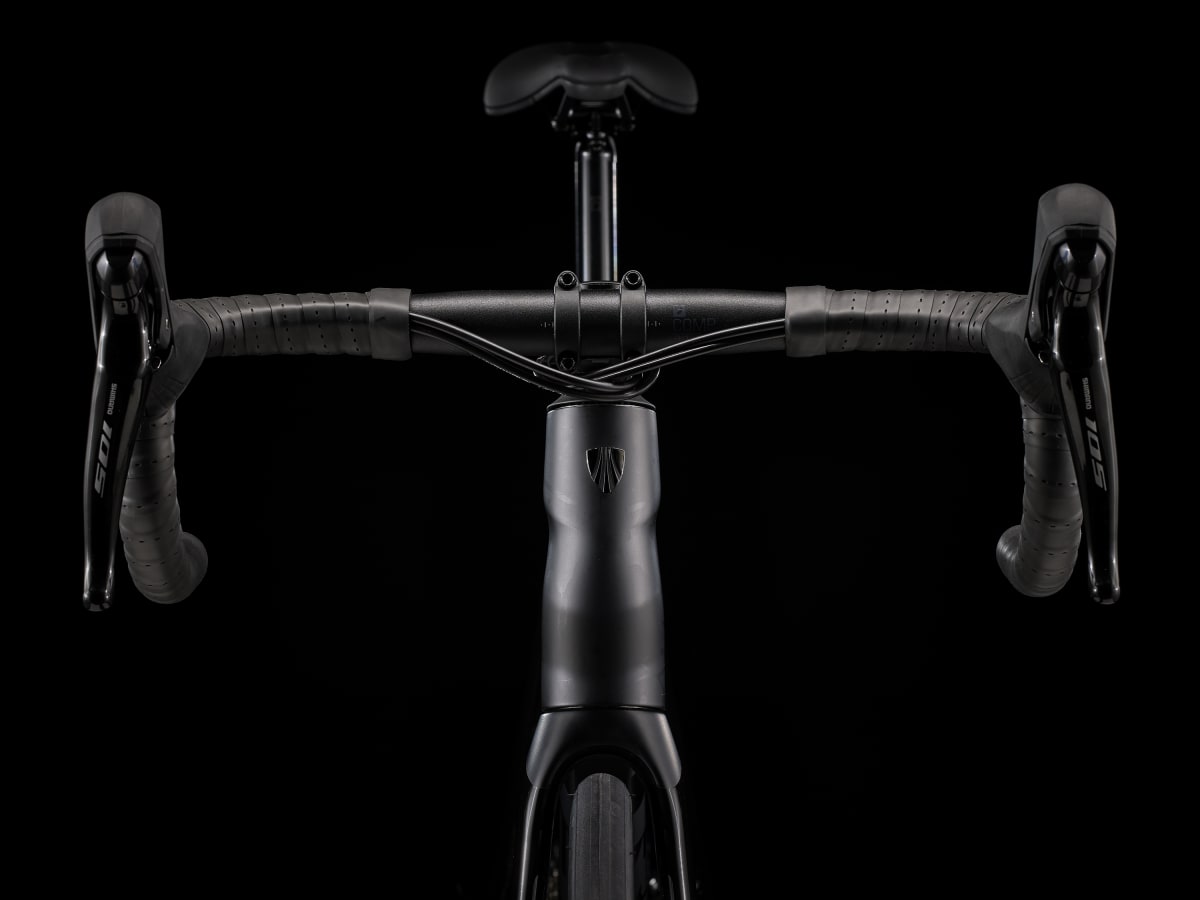

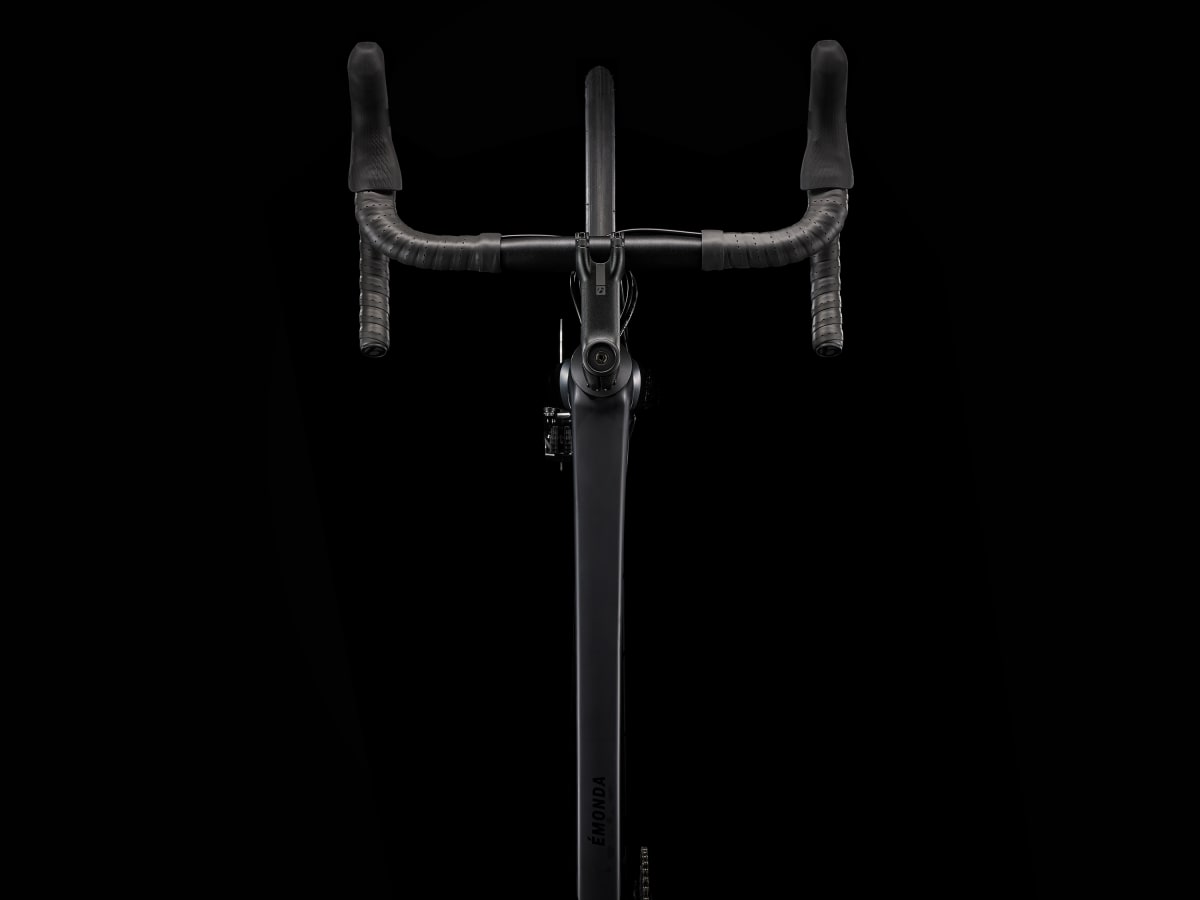

Handlebar

Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width

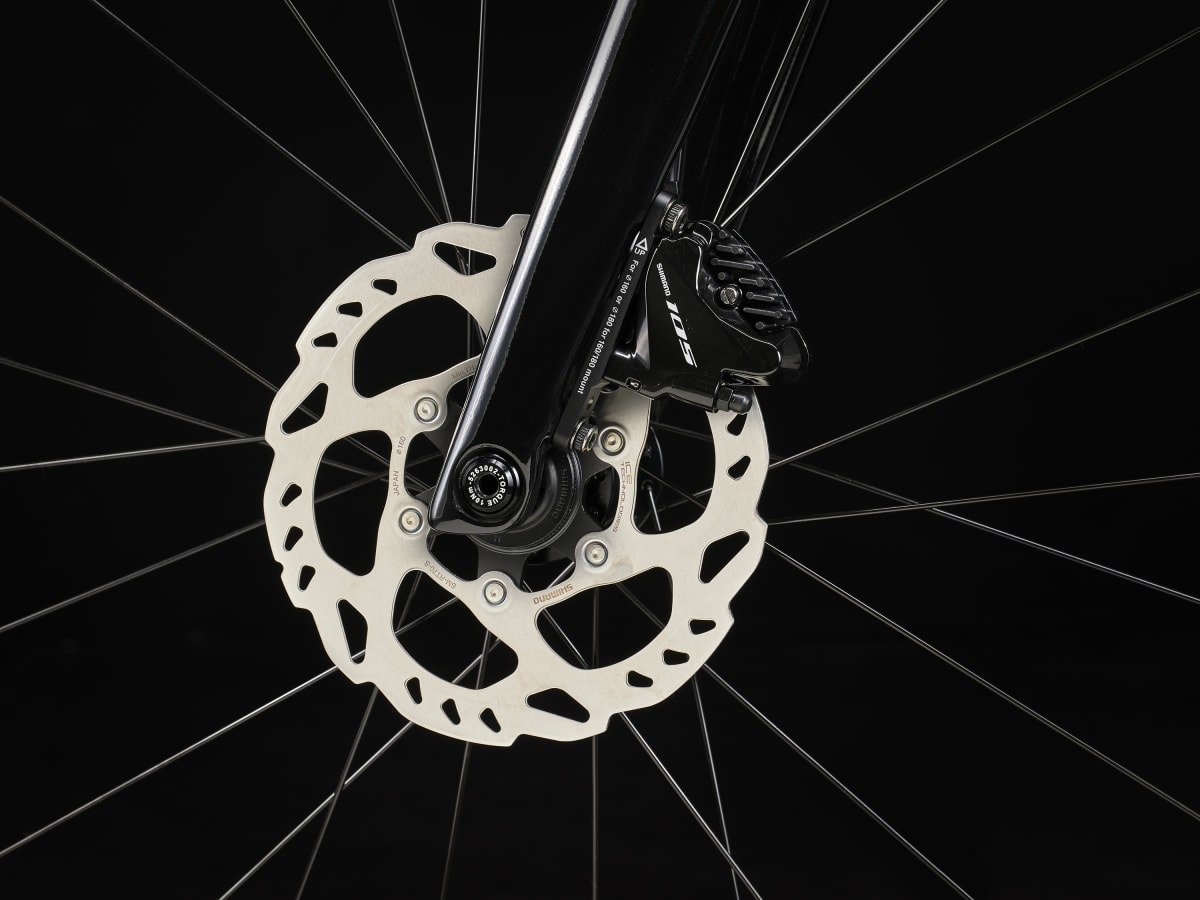

Front brake

Shimano 105 hydraulic disc
Shimano RT70, CentreLock, 160 mm
Max brake rotor size

Derailleur rear

Shimano 105 R7000, short cage, 30T max cog

Derailleur front

Shimano 105 R7000, braze-on

Primary rear brake

Shimano 105 hydraulic disc
Shimano RT70, CentreLock, 160 mm
Max brake rotor size

CAN'T SEE YOUR SIZE OR COLOUR?  New bikes are arriving daily, so call us on 0121 745 2618 to secure yours.
