Trek Checkpoint SL 6 AXS

This product is currently out of stock and unavailable.

SKU: 35170 Category:

Description

The Checkpoint SL 6 AXS is a carbon gravel bike designed to take you to places you’d never reach on a standard road bike. A lightweight OCLV Carbon frame with gravel-smoothing IsoSpeed, a smart and smooth SRAM Rival AXS wireless electronic drivetrain, nimble-yet-stable progressive geometry and internal storage and loads of mounts make this bike a true gravel powerhouse and a great choice for serious all-road adventurers.

You have big gravel dreams, and know you’ll need the most dialled, capable bike for these epic adventures. You also want the incredible speed, precision and clean looks of SRAM’s newest wireless electronic drivetrain.

A 500 Series OCLV Carbon frame with Rear IsoSpeed and carbon armour, a progressive geometry that’s stable at speed and efficient when you’re grinding up a climb, internal storage, hidden cables that won’t interfere with bags, integrated frame bag mounts and rack and mudguard mounts. Plus, a carbon fork, a 1×12 SRAM Rival eTap AXS wireless electronic drivetrain with a wide-range cassette and Paradigm Comp 25 wheels. You can even run a dropper post to get low on long descents. Fits up to 45 c tyres.

A carbon gravel bike built for the longest days, roughest roads and biggest adventures. It’s light, fast, comfortable and spec’d with high-end parts that perform even in the most rugged terrain, like an advanced wireless electronic drivetrain for lightning-fast shifts (even under load) and less maintenance.
– The SRAM Rival eTap AXS wireless drivetrain won’t leave a hole in your wallet, and you can fully customise your shift logic using the AXS app
– The IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
– All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
– A sleek internal storage compartment gives you a versatile spot to stow tools and gear
– Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions

New progressive geometry
For quick, nimble handling that still keeps you stable and in control on rougher descents.

Tyre clearance
Lots of clearance means you can run meatier tyres (700×45 mm or 27.5×2.1″) for tackling chunkier gravel and terrain.

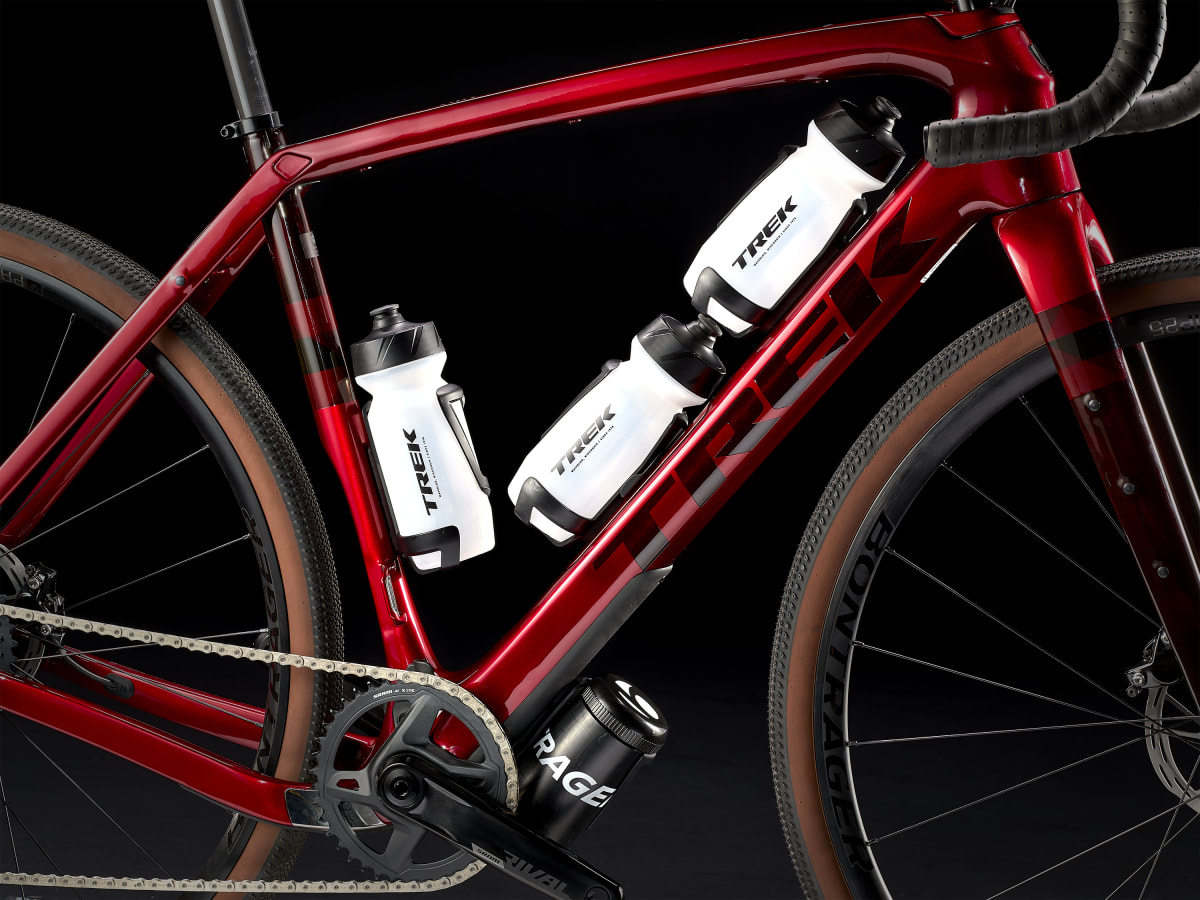

Tons of mounts
Integrated frame bag and mudguard mounts make it easy to carry gear and water.

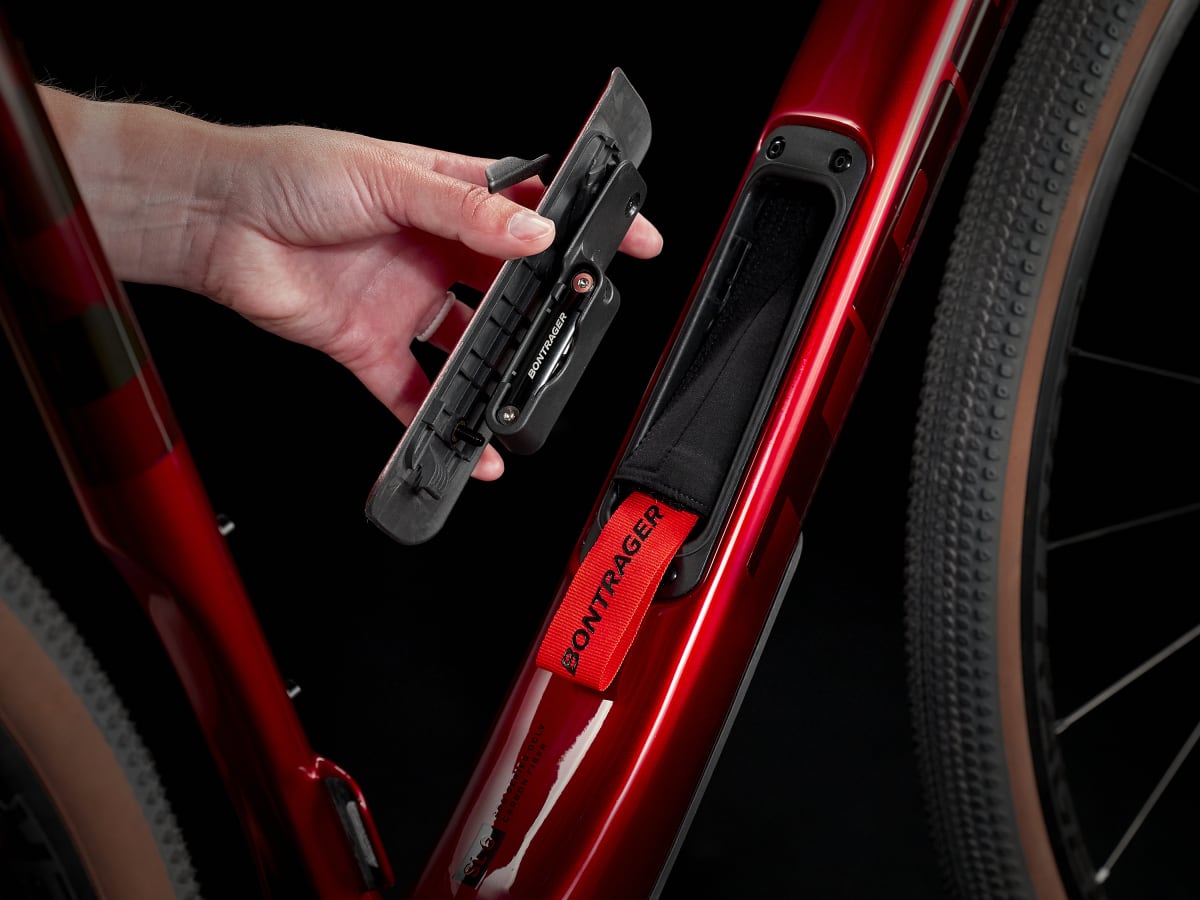

Sleek internal storage
A built-in storage compartment in the downtube lets you stow tools and gear.

IsoSpeed smooth
The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around.

Additional information

Weight

Size 49 – 9.05kg
Fork

Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Stem

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Frame

500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142×12 mm thru axle

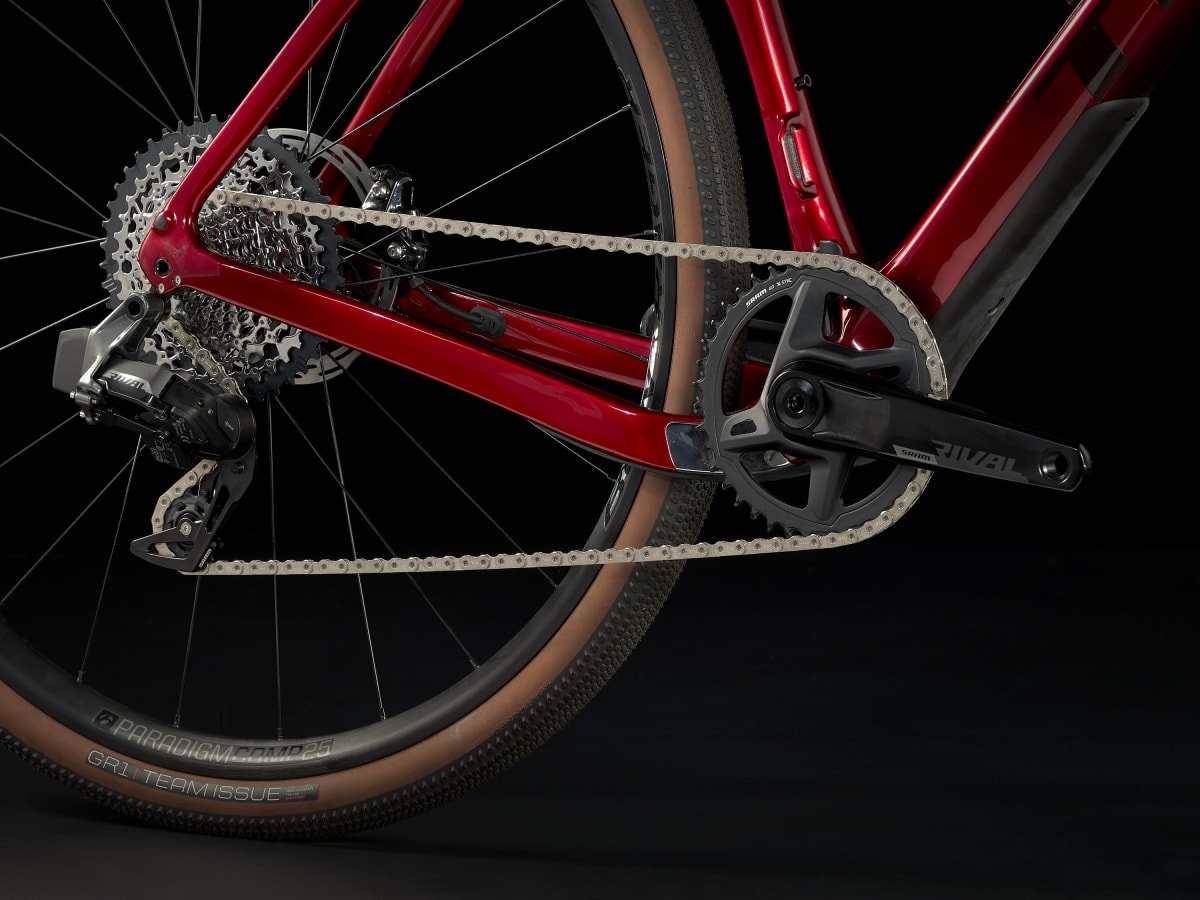

Gears

SRAM Rival XPLR eTap AXS, 44T max cog
Saddle

Bontrager Verse Comp, steel rails, 155 mm width
Wheels

Bontrager Paradigm Comp 25
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142×12 thru axle
Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R freehub, 142×12 thru axle
Cassette

SRAM XG-1251, 10-44, 12-speed
Crankset

SRAM Rival, 40T, DUB Wide, 165 mm length
SRAM DUB, T47 threaded, internal bearing
Seatpost

Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Shifters

SRAM Rival eTap AXS, 12-speed // SRAM Rival eTap AXS, 12-speed
Handlebar

Bontrager Elite Gravel, 38 cm width
Front brake

SRAM Rival hydraulic disc
SRAM Paceline, rounded, CentreLock, 160 mm
Max brake rotor size
Derailleur rear

SRAM Rival XPLR eTap AXS, 44T max cog
Primary rear brake

SRAM Rival hydraulic disc
SRAM Paceline, rounded, CentreLock, 160 mm
Max brake rotor size
